162
3.2 Nameplate and approval
number
3.2.1 Pedelec nameplate
Your FLYER Pedelec has a nameplate on
the frame that contains all the relevant data
for your e-bike.
1
3
2
4
6
8
5
7
9
11
10
1312

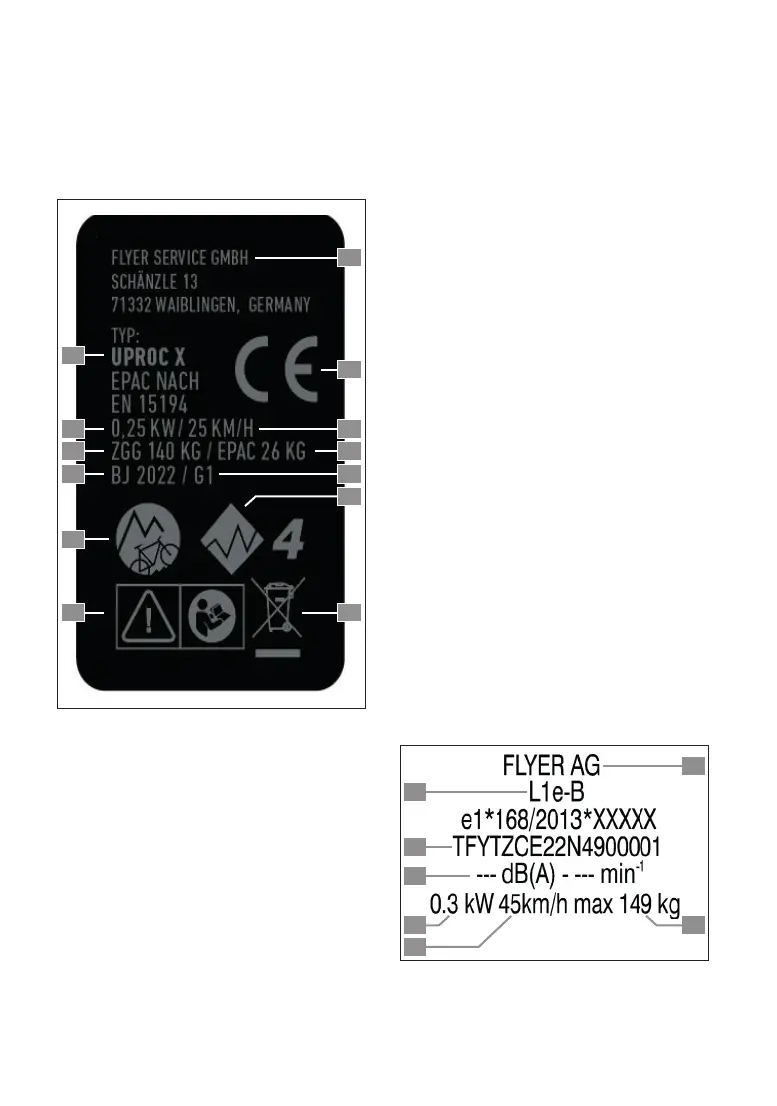

Fig.1: Pedelec nameplate
1
→
Contact details of distributors
2
→
Model name and applicable EU
standard
3
→
CE marking
By means of the CE marking, the manu-
facturer declares that the pedelec com-
plies with the applicable requirements.
4
→
Maximum continuous rated power
The maximum continuous rated power is
the maximum output for over 30 minutes
at the output shaft of the electric motor.
5
→
Switch-off speed
The switch-off speed (in km/h) is the
speed at which the motor assistance
of the pedelec is switched off.
6
→
Permissible total weight
The permissible total weight is the
sum of the weight of the ready-to-ride
pedelec and the maximum load (e-bike
+ rider + luggage).
7
→
Tare weight
The weight specification refers to the
weight of the (ready-to-ride) pedelec at
the time of sale. Any additional acces-
sories must be added to this weight.
8
→
Year of manufacture
The year of manufacture is the year in
which the pedelec is manufactured.
9
→
Model generation
The model generation describes the
sequence of produced generations of
an e-bike model. A model generation
is considered to be new when modifi-
cations have been made to the frame.
Changes in specifications or colors are
not considered a new model generation.
10
→
Area of application
(See chapter 3.3 “Areas of application” )
11
→
Bicycle type
(See chapter 3.4 “Bicycle type”)
12
→
Safety-related symbols
(See chapter 4.3 “Safety-related symbols”)
13
→
Disposal symbol
(See chapter 11 “Disposal”)
3.2.2 Approval number for
S-pedelecs
Your FLYER S-pedelec does not have
a nameplate, but rather a label with the
approval number on the frame.
14
15
16
17
19
2018
Fig.2: Label with approval number on the S-pedelec
14
→
Distributors
15
→
Motor vehicle class and
applicable EU directive
