5

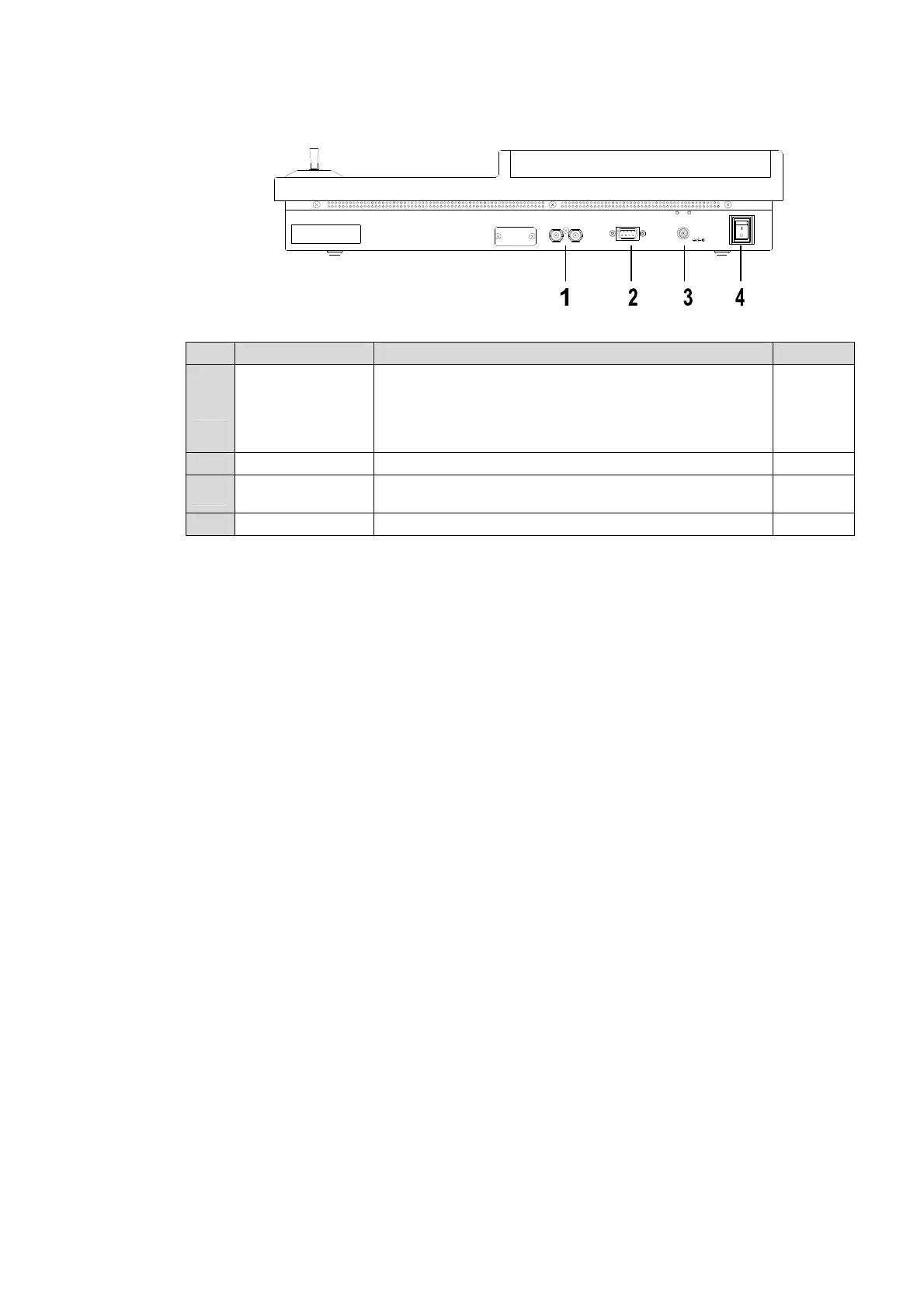

Rear Panel
No. Name Description Refer to
1 TO MU
Arcnet port. Used for the main unit connection.
The other connector (loopthrough) can be used for AUX
unit connection. The loopthrough connector must be 75
ohm terminated if it is not connected to other system
equipment.
20-4-1
2 CONTROL Used for service purposes. Do not use.
3 DC 12V IN
Used for DC power connection from the supplied AC
adapter.
4 POWER Used for the unit power On/Off
OFF
POW ER
ON
CONTROL
TO MU
S/No.LABEL
DC12V IN
To Next Page
