2-4. Option Slots
All expansion cards can be fitted via the rear of the main unit. The bottom 4 slots (A, B, C and D
shown in the figure in this page) are dedicated to these optional cards.
IMPORTANT
For the details about system expansion (optional cards) and fan replacement, contact
your FOR-A supplier.

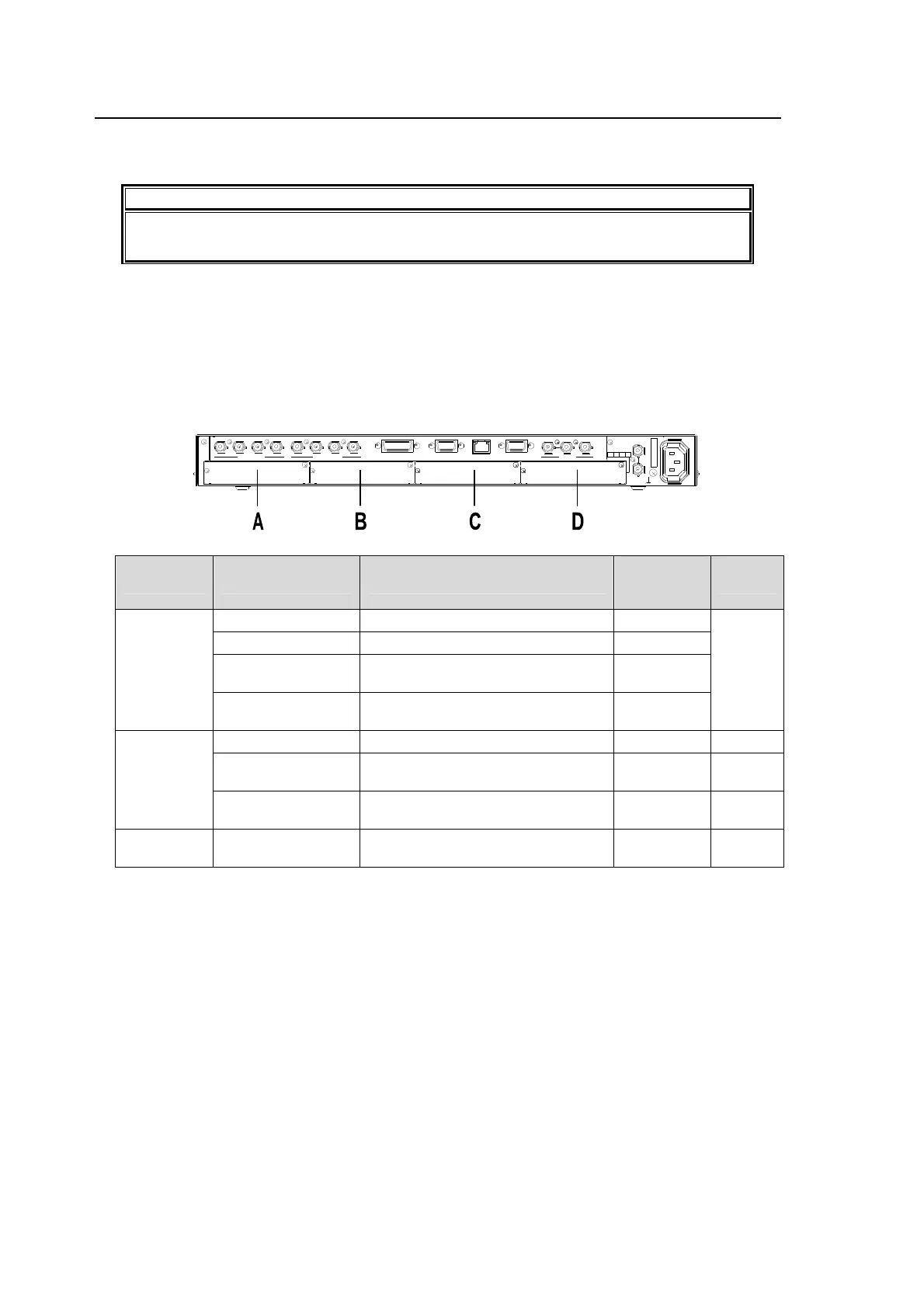

Slots for Option Cards at Main Unit Rear Panel
Two input expansion cards can be installed in slots A and B.
Two output expansion cards can be installed in slot C and D.
Two tally relay expansion cards (HVS-30TALR) can be installed in slot A to D.
The figure below is an example of HVS-300HS. The option slots of the HVS-300RPS are the
same as those of the HVS-300HS.
Option Slot Available card Available Video Signal (Connector)
Number of
input/output
per card.
Refer to
A, B
HVS-30HSDI HD/SD SDI (BNC) 4 inputs
6-6
HVS-30HSDI-A HD/SD SDI (BNC) 4 inputs
HVS-30HSAI
HD/SD analog component or
HD/SD analog composite (BNC)
2 inputs
HVS-30PCIN
Digital RGB (DVI-D) and
Analog RGB (VGA)
2 inputs
C, D
HVS-30HSDO HD/SD SDI (BNC) 3 outputs 7-5
HVS-30HSAO
HD/SD analog component or
HD/SD analog composite (BNC)
2 outputs 7-5
HVS-30PCO
Digital RGB (DVI-D) and
Analog RGB (VGA)
2 outputs 7-5
A to D HVS-30TALR Tally Relay Output (37-pin D-sub) 18 outputs
2-5-4,
20-2-3
GPI IN/T ALLY OUT RS-422 EDITOR
REF IN
REF OUT
TO O U
4321
SDI INPUT
AU X 2AUX 1PGM 2PGM 1
SDI OUTPUT
AC 100-2 40V 50/60H z IN
OPTION SLOT
AB DC
S/No.
L
A
N
(
1
0
/1
0
0
B
A
S
E
-T
)
GENLO CK
