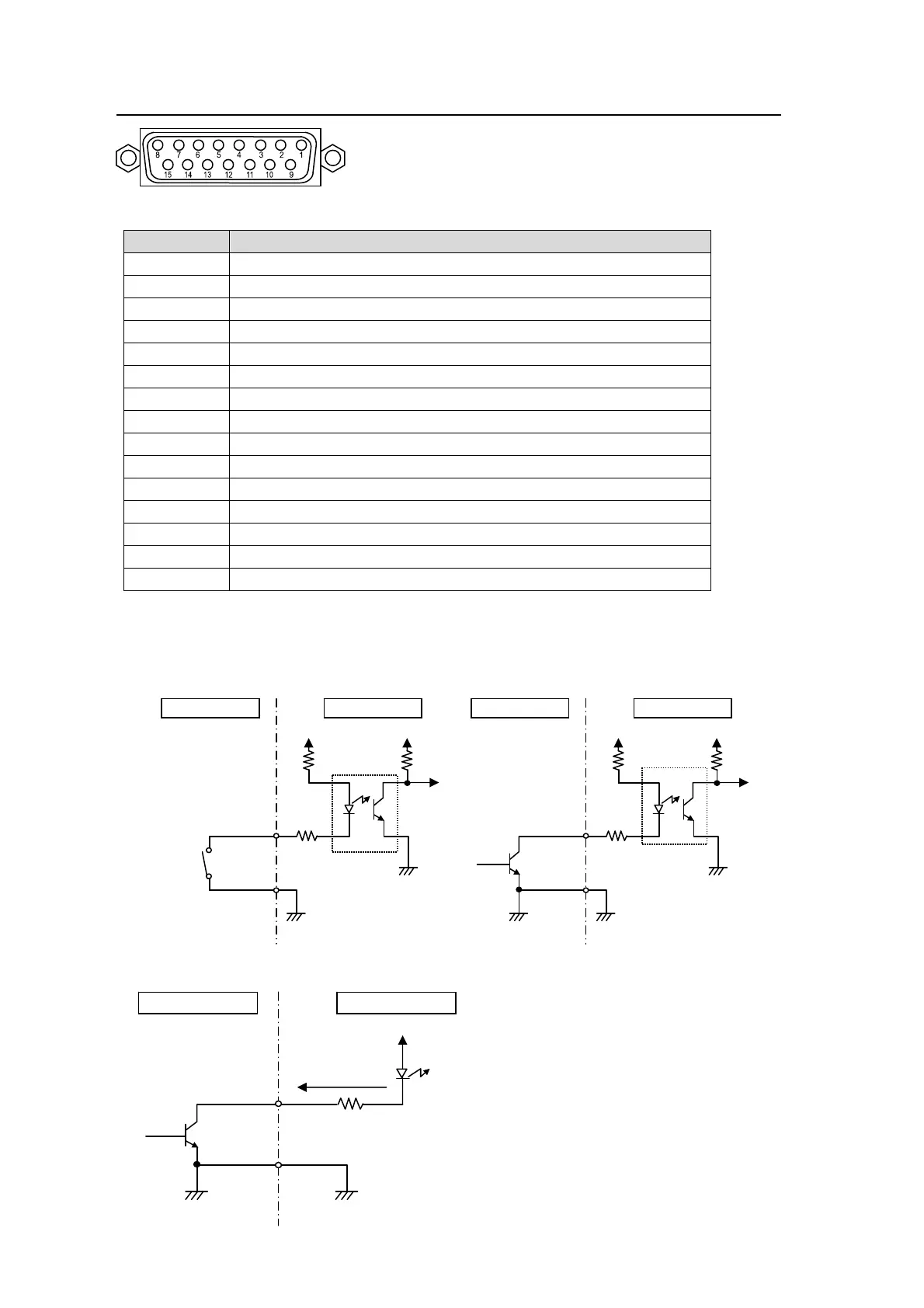

2-5-3. GPI IN/TALLY OUT Connector
 Pin Assignment Table
Pin No. Description
1 IN01 RED TALLY (default setting)
2 IN02 RED TALLY (default setting)
3 IN03 RED TALLY (default setting)
4 IN04 RED TALLY (default setting)
5 IN05 RED TALLY (default setting)
6 IN06 RED TALLY (default setting)
7 IN07 RED TALLY (default setting)
8 IN08 RED TALLY (default setting)
9 IN09 RED TALLY (default setting)
10 IN10 RED TALLY (default setting)
11 IN11 RED TALLY (default setting)
12 IN12 RED TALLY (default setting)
13 Signal ground
14 Signal ground
15 Signal ground
The pin assignment shown above is the factory default assignment. Pin assignments
can be changed via operational menus. See section 20-1and 0.
GPI IN Circuit
GPI OUT/ TALLY Out Circuit
15-pin D-sub (female)
with inch screws
HVS-300HS
VCC VCC
External
Open collector
HVS-300HS
VCCVCC
External
Switch or Relay
External Device
Max voltage:40V
HVS-300HS
Max load current:
100mA
