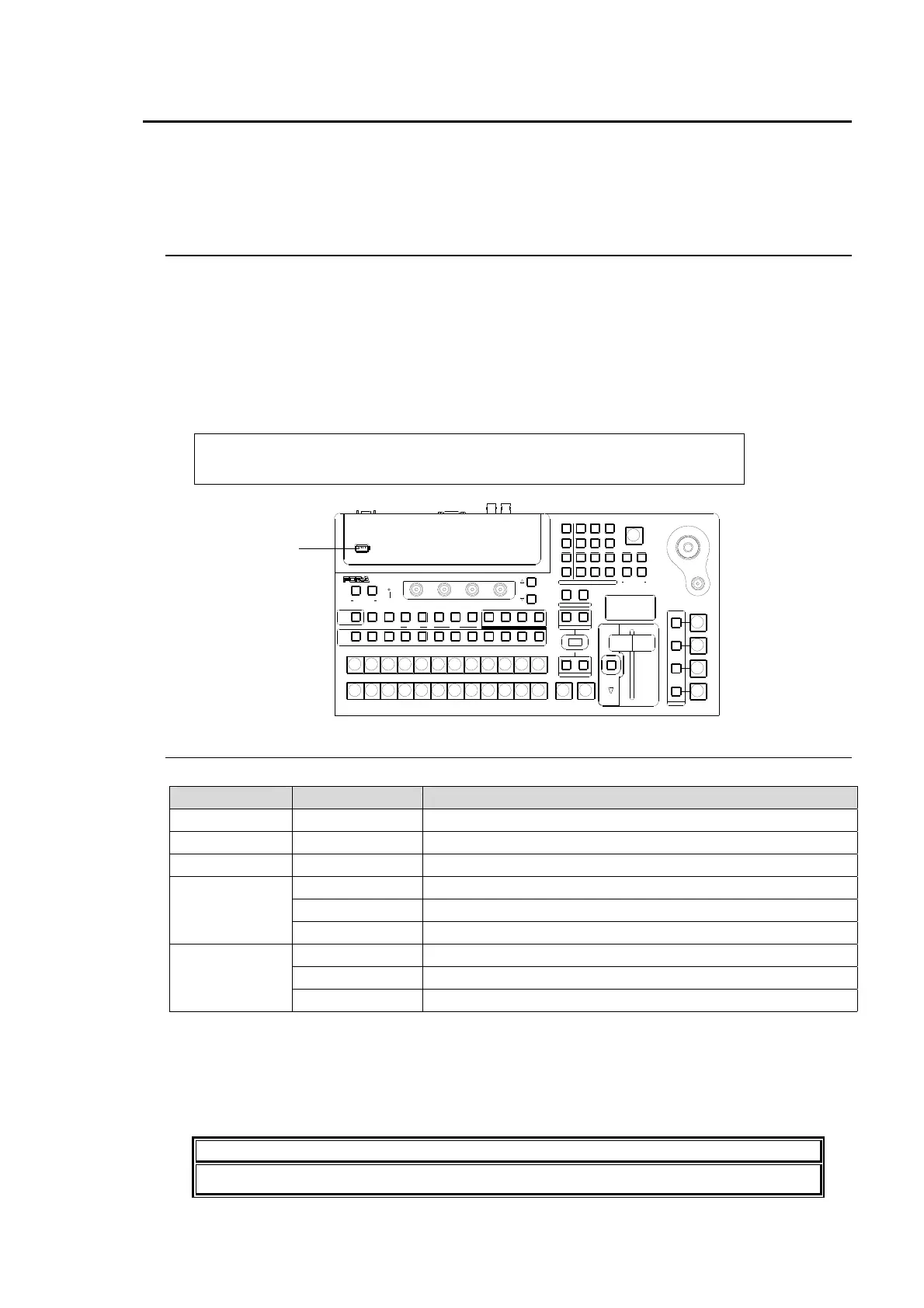

17. File Operations
The switcher is capable of storing operational data to USB flash memory and also of recalling and
downloading previously saved data for application to production operations. Operational data
including system settings, wipe settings, stills, bus settings and events can be all saved to and
downloaded from the USB flash memory.
17-1. USB Flash Memory
For available USB flash memory, see "Available File List" in the Appendix. Inserting and
removing of USB should be performed slowly and firmly.
The access lamp on the USB flash memory blinks while saving or reading data. Check
access to the USB flash memory before and while performing the operations. Do not remove
the USB flash memory while the access lamp is flashing. This could corrupt the stored data or
damage the USB flash memory.
The remaining space of the USB flash memory is displayed at the bottom right-hand side in
the FILE menu.
FILE :>LOAD >SAVE >UPDATE
TOP : 101MB
17-2. Available Files
The following file formats can be saved / loaded to / from USB flash memory.
File Extension File Name (*1) File Data Description
all data.all System data, all wipe data and all event memory data
sys hvs-300.sys System data
mem event.mem All event memory data
jpg (*2) *.jpg JPEG format files (standard RGB)
still1.jpg Still 1 capture video
still2.jpg Still 2 capture video
tga (*2) *.tga TARGA format files (uncompressed RGB)
still1.tga Still 1 capture video
still2.tga Still 2 capture video
Note that file names are limited to max. 8 characters in length (ASCII code).
(*1) The files are automatically named to the correct name as shown in the table above when
saving to the USB flash memory.
(*2) When loading a JPEG or TARGA file from the USB flash memory, you can select a centered or
tiled format as well as a normal one. In this case, a centered or tiled format image file is saved
to STILL as either jpg or tga.
IMPORTANT
To use USB memory sticks with the switcher, format them in FAT or FAT32 file system.
USB MEMORY
AUTO CUT
DSK
KEYER
P IN P
1
2
P IN P
(PUS H to DE F)
43
65
SIZE
NOR/REVREV
BKGD
WIPEMIX
F4
F3F2
F1
PAGE
USER BUTT ON
12
AUXP IN P
KEYER DSK
12123
PGM CLEANPREV MV
234567891011121
PGM
PST
121110987654
POSITIO N
123
KEYER
MENU/DIRECT PAT T/EVENT/KEY PAD
KEY/AUX
FADER LIMIT
ALARM
ON AIR
USER BUTT ON
TRANS PREV
DIRECTION
NEXT TR ANSITION
PATTERN/RATE
TRANSITION T YPE
HVS-300HS
DIGITAL VIDEO SWITCHER
7/SET UP
4/WIPE
1
8/STILL
5/P in P
2/KEYER
9/FILE
6/MATT
3/DSK
BLACK
TRANS
MENU
DIRECT PATT
±/EVENT
CLR/TRANS RATE 0 /RECALL
. (DOT)
ENT/STORE
USB port
