Item Setting Description
KEYER
ON KEYER image is added to Clean
OFF KEYER image is not added to Clean.
PinP1/2
ON PinP1 or PinP2 image is added to Clean
OFF PinP1 or PinP2 image is not added to Clean.
7-4. Setting Up and Outputting KEY OUT
The KEY OUT signal (switcher processed key cut signal) can be assigned to AUX outputs.
Several kinds of key signals can be used as KEY OUT, such as KEYER and DSK mixed key
signal and DVE key signal. This feature is useful for checking key signals while processing
chromakeys.
(1) Open the [SETUP-OUTPUT-AUX XPT] menu referring section
7-1. "How to Select Aux
signals."
(2) Press the PAGE DOWN button to go to PAGE 2.
OUTPUT :KEY OUT: : 2/2
AUX XPT : =MEKEY: :
(3) Turn F1 to select a KEY OUT signal. Various types of KEY OUT signals are available as
shown in the table below. Press F1 to confirm the setting.
Item Setting Description
KEY OUT
D_PGM DVE key signal used for PGM bus.
D_PST DVE key signal used for PST bus.
D_MEA DVE key signal used for A bus.
D_MEB DVE key signal used for B bus.
D_KEY DVE key signal used for KEYER.
MEKEY DVE key signal mixed with KEYER and DSK.

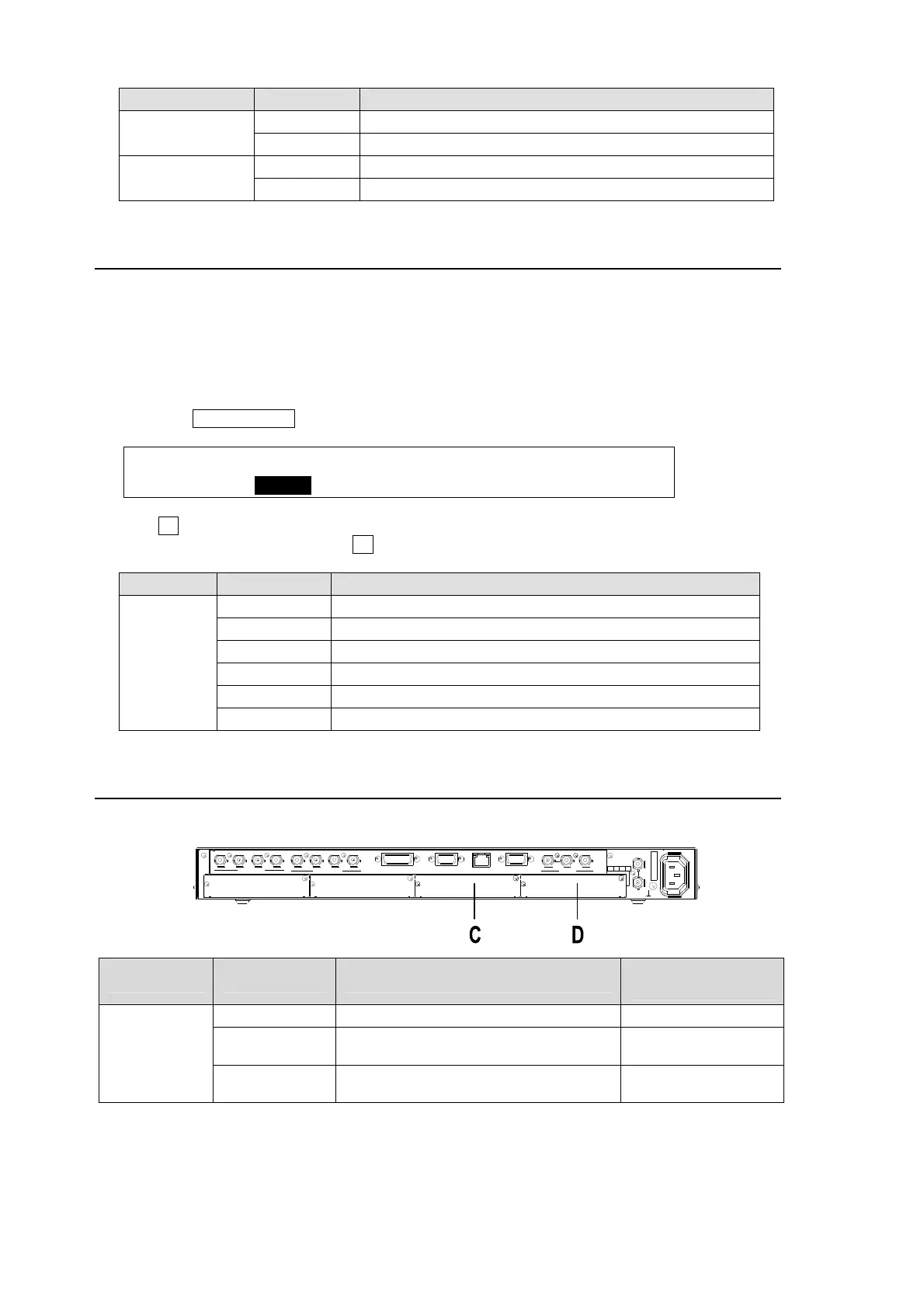

7-5. Setting Up Additional Outputs
Up to two cards of additional outputs can be installed into slot C and D.
Option Slot Available card Available Video Signal (Connector)
Number of output
per card.
C, D
HVS-30HSDO HD/SD SDI (BNC) 3 outputs (*1)
HVS-30HSAO
HD/SD analog component or
SD analog composite (BNC)
2 outputs
HVS-30PCO
Digital RGB (DVI-D) and
Analog RGB (VGA)
2 outputs
(*1) HVS-30HSDO can send two output channels to three connecters: Ch1 to Connector 1 and Ch2
to Connectors 2 and 3.
Each card has two output channels whose signal can be selected respectively in the menu as
shown in the procedure below.
GPI IN/T ALLY OUT RS-422 EDITOR
REF IN
REF OUT
TO O U
4321
SDI INPUT
AU X 2AUX 1PGM 2PGM 1
SDI OUTPUT
AC 100-2 40V 50/60H z IN
OPTION SLOT
AB DC
S/No.
L
A
N
(
1
0
/1
0
0
B
A
S
E
-T
)
GENLO CK
