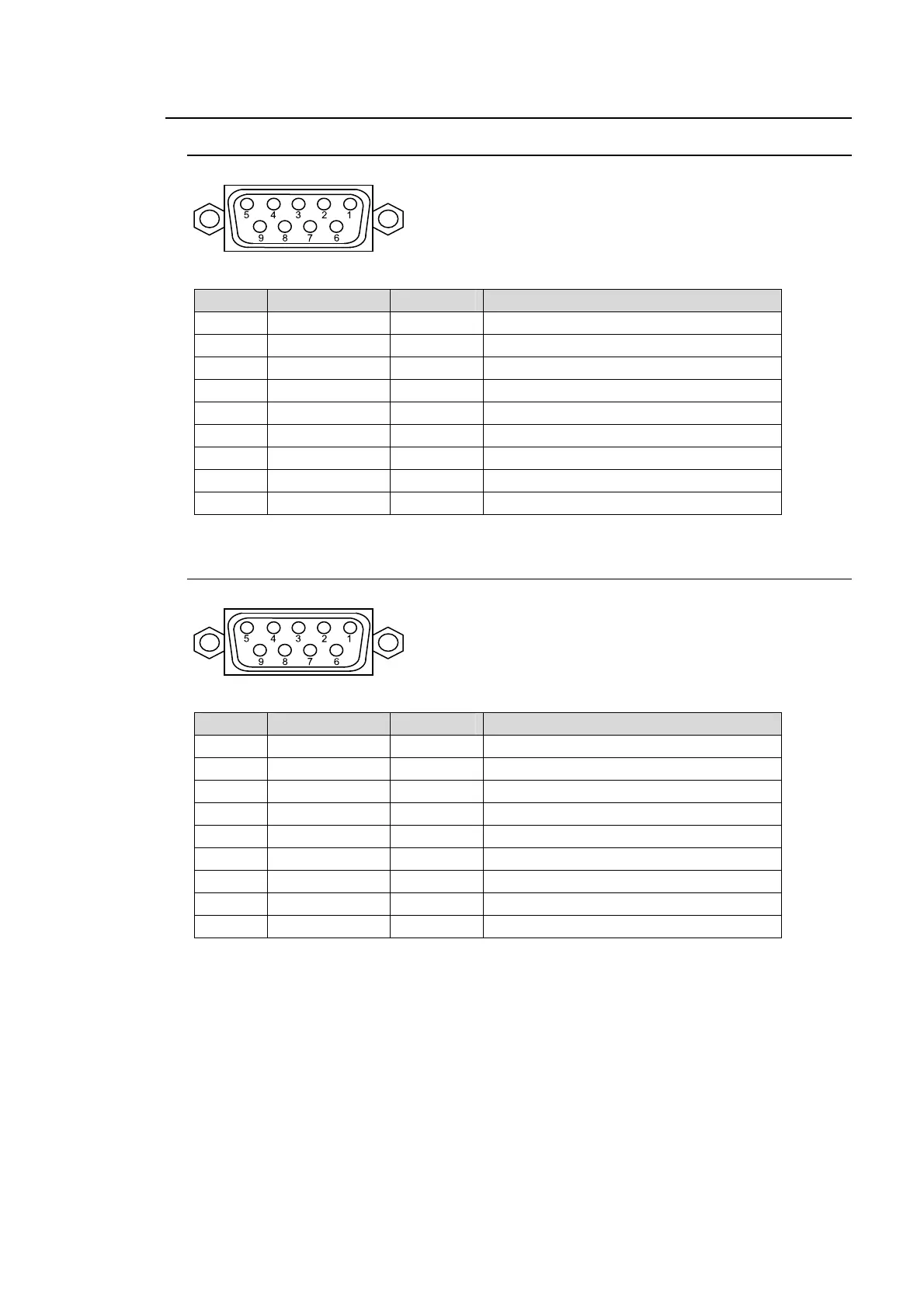

2-5. Interfaces
2-5-1. EDITOR Connector
 Pin Assignment Table
Pin No. Signal Name In/Out Description
1 FG Frame ground
2 T- Out Transmit data (-)
3 R+ In Receive data (+)
4 SG Signal ground
5 NC Not used
6 SG Signal ground
7 T+ Out Transmit data (+)
8 R- In Receive data (-)
9 FG Frame ground
2-5-2. RS-422 Connector
 Pin Assignment Table
Pin No. Signal Name In/Out Description
1 FG Frame ground
2 R- In Receive data (-)
3 T+ Out Transmit data (+)
4 SG Signal ground
5 NC Not used
6 SG Signal ground
7 R+ In Receive data (+)
8 T- Out Transmit data (-)
9 FG Frame ground
9-pin D-sub (male)
with inch screws
9-pin D-sub (female)
with inch screws
