6-6. Setting Up Additional Inputs

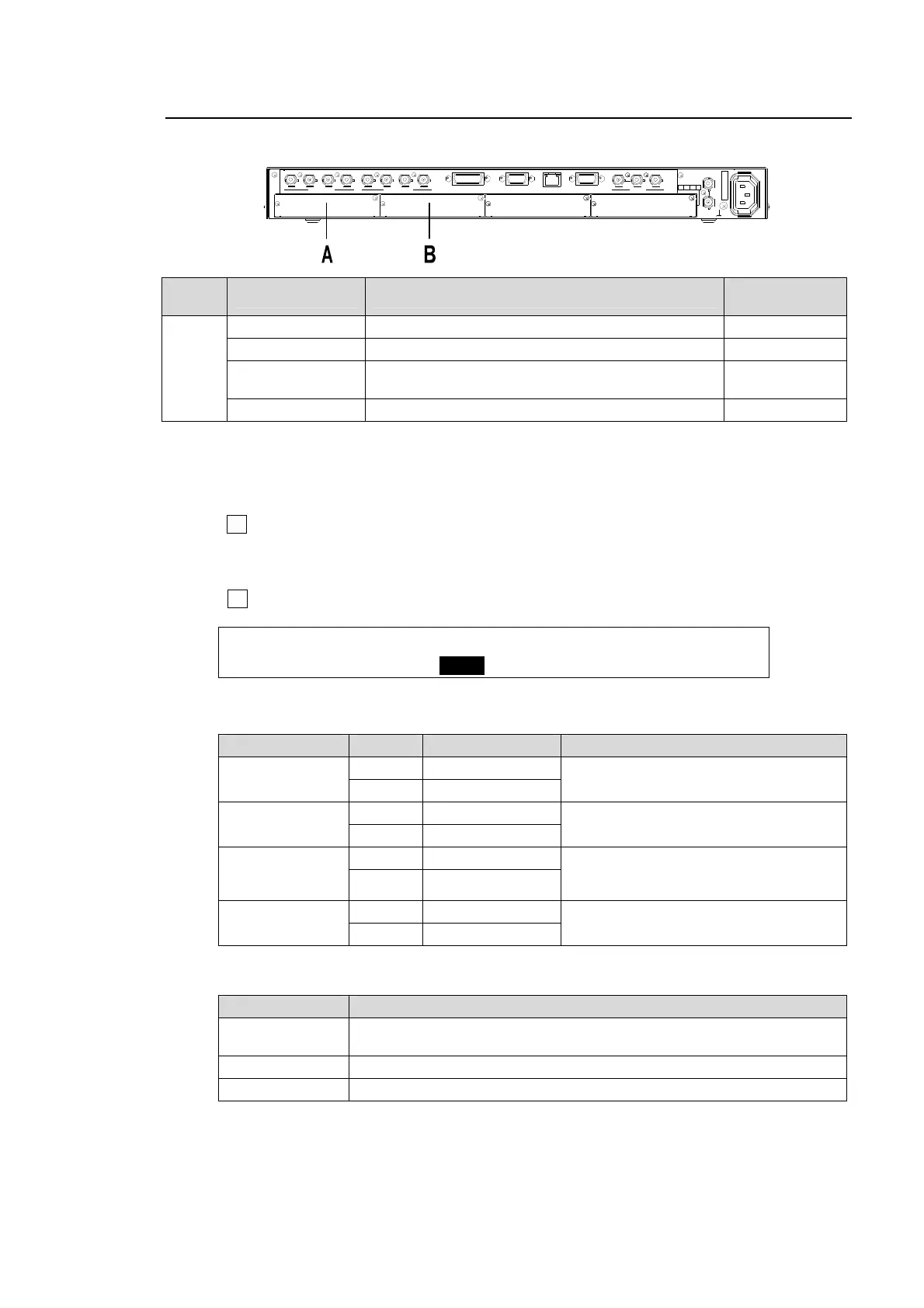

Up to 2 cards of additional inputs can be installed into Slot A and Slot B.
Option
Slot
Available card Signal (connector)
Number of
inputs per card
A, B
HVS-30HSDI HD/SD SDI (BNC) 4 inputs
HVS-30HSDI-A HD/SD SDI (BNC) 4 inputs
HVS-30HSAI
HD/SD analog component or
analog composite (BNC, mini-DIN 7pin)
2 inputs
HVS-30PCIN Digital RGB (DVI-D) / Analog RGB signal (VGA) 2 inputs
Each card provides two channels of input and each channel can be set up respectively as
described below.
(1) Opent the [SETUP – INPUT－SIGNAL] menu.
(2) Turn F1 to select an input channel. Select from IN05 to IN08 if the card installed to Slot A has
four inputs. Select between IN05 and IN06 if the card installed to Slot A has two inputs. In the
same way select from successive numbers after the inputs on SlotA if the card is installed to
Slot B.
(3) Turn F2 to specify the signal format for the channel.
INPUT :SELECT :FORMAT :RESIZE : FS : 1/1
SIGNAL : =IN05 : =AUTO : =16:9 : =OFF :
Normally set to AUTO. The following settings are available as needed.
Expansion card Slot Number of inputs FORMAT setting
HVS-30HSDI
A 4 inputs
AUTO, HD-SDI, SD-SDI
B 4 inputs
HVS-30HSDI-A
A 4 inputs
Unable to set (switcher's operational
format)
B 4 inputs
HVS-30HPCIN
A 2 inputs AUTO (If set to AUTO, input signal
format is automatically detected and
set.)(See the table below.)
B 2 inputs
HVS-30HSAI
A 2 inputs
HD Component, SD Component,
Composite
B 2 inputs
 HVS-30PCIN available format
Format Resolution
1080
1024x768 (XGA), 1280x1024 (SXGA), 1600x1200 (UXGA),
1280x768 (WXGA), 1680x1050 (WSXGA), 1920x1200 (WUXGA)
720 1024x768 (XGA), 1280x1024 (SXGA), 1280x768 (WXGA)
SD 640x480 (VGA), 800x600 (SVGA), X1024x768 (XGA)
