61
(9) Turn the SIZE control to generate the chromakey. This can also be done by turning F3 to
set the SELECT item to OFF in the [KEYER - AUTO - CK] menu.
Chromakey is displayed on the preview output. To display it on the program output, set the
PGM OUT item in the [KEYER - AUTO-CK] menu to ON.
11-5-2. Chromakey adjustments
If the desired result is not achieved using the automatic chromakey generation, fine
adjustments can be made as follows:
Adjusting Edges
Used to adjust the edge of the Keyed area when it appears unnatural.
Press the PAGE DOWN button to go to PAGE2 of the chromakey menu. Adjust the left edge
in the L (LEFT) item and the right edge in the R (RIGHT) item.
KEYER : CK EDGE : : 2/5
CK ADJT :L=0 R=0 : :
Gain and Clip
Used to adjust the key signal and its composition over the background image. Press the
PAGE DOWN button to go to PAGE3 of the chromakey menu. Turn F1 and F2 to adjust the
gain and clip.
KEYER : GAIN : CLIP : HUE :COL CAN: 3/5
CK ADJT : =1.0 : =0.0 : =0.0 : =ON :
For chromakey, INVERT, GAIN, CLIP, and TRANSP in the KEYER - INS/SRC] menu
cannot be set.

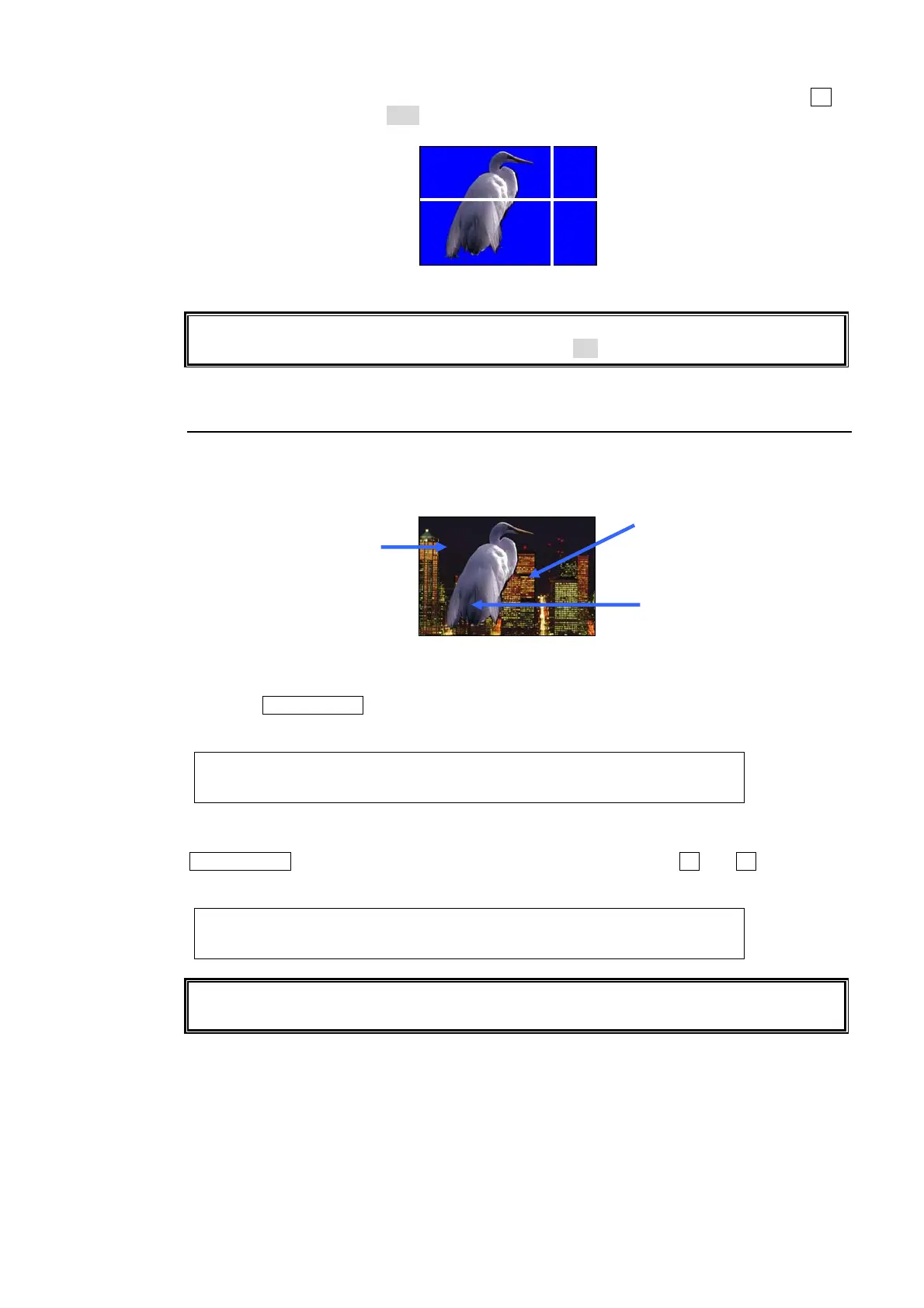

Use CK EDGE to smooth
chromakey edges.
Use COLOR CANCEL
and SUPPRESSION to
eliminate or reduce the
color noises on the bird.
Adjust HUE, ANGLE and
NGLE OFFSET to make
the background clear.
Move the crosshair with the
oystick
-Y axes and turn
SIZE to create chromakey.
Preview image
