KEYER AUTO button
The KEYER AUTO button can works in different ways (CUT or AUTO), depending on the
menu setting. (See section
9-8-4. "Advanced Auto Transitions ".) When set to AUTO, the
KEYER AUTO button works in the same way as the AUTO button in the pattern transition
area.
KEYER ON AIR button and On-Air indicator
The KEYER ON AIR button can work in different ways such as CUT, Scale Up/Down or Slide
In/Out, depending on the menu setting. (See section
9-8-3. "User Transitions .")
WIPE transition
(1) Setup a key for the KEYER. (See section
11. "KEYER and DSK.")
(2) Press the KEYER button in the NEXT TRANSITION block.
(3) Press WIPE in the TRANSITION TYPE block.
(4)The [TRANS - BKGD] menu appears in the menu display. Turn F3 to select a desired pattern.
(See section 9-9 "How to Select Patterns.")
(5) Press AUTO or KEYER AUTO, or move the fader lever to perform the KEYER WIPE
transition.
See section
9-7. "Pattern (WIPE) Transitions " for the WIPE transition details.
See section
9-8-2. " Transition Rate" for the transition rate.
See section
9-8-1. " Fader Limit" for the fader limit.
On-air/Off-air Indication
The KEYER indicator will be on when key is live and will otherwise stay off.
To Preview Keyer Next Transition:
Press the KEYER button on the NEXT TRANSITION block to turn it on. Press and hold down
the TRANS PREV button on the left next to the BUS SELECT block. Press AUTO or move the
fader lever while holding down TRANS PREV. The next KEYER transition will be displayed on
the PREVIEW output. (See section 7-2. "Preview Set Up.") To exit the transition preview,
complete the transition.

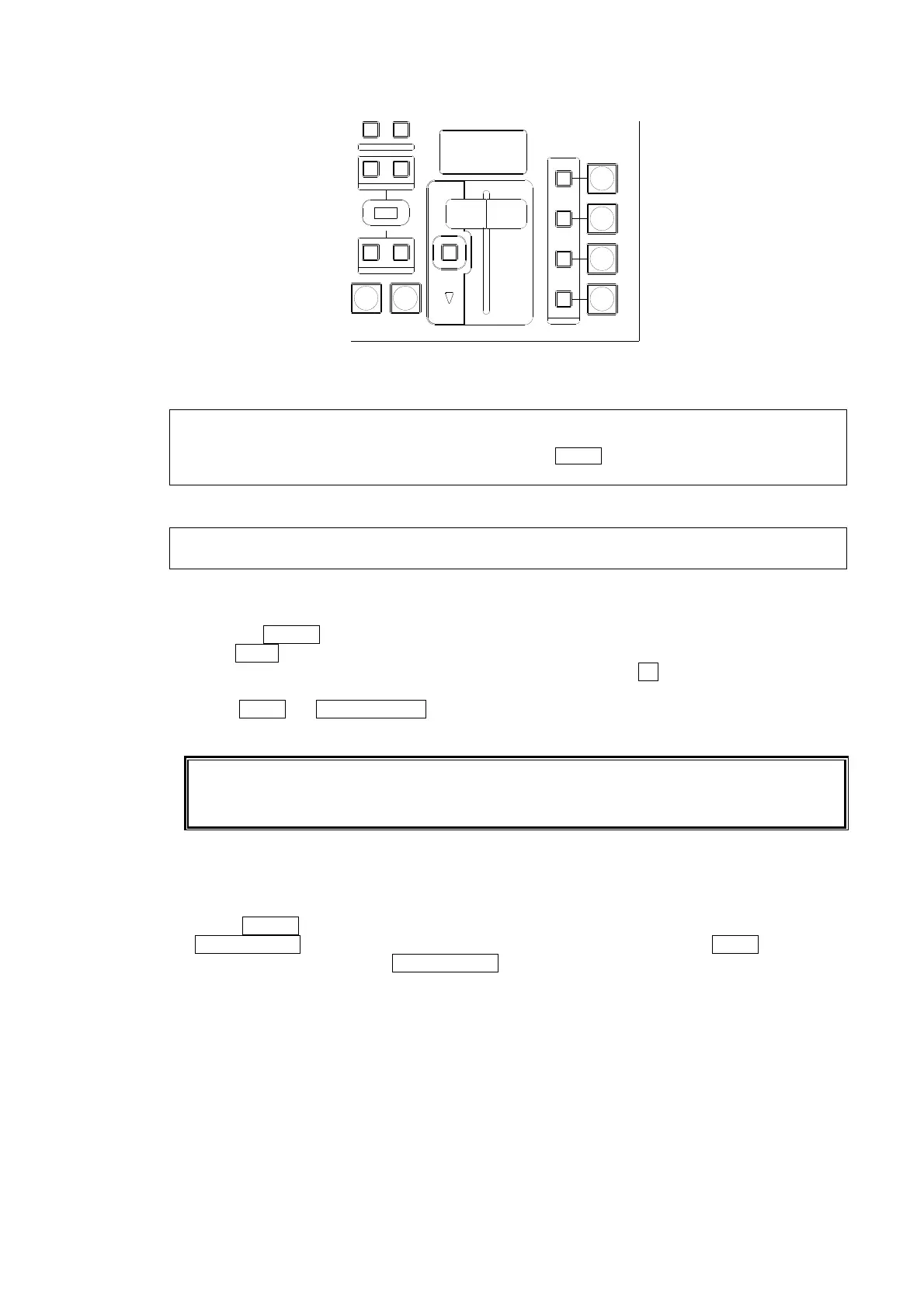

AUTO CUT
DSK
KEYER
P IN P
1
2
P IN P
NOR/ REVREV
BKGD
WIPEMIX
KEYER
FADER LIMIT
ON AIR
DIRECTION
NEXT TRANSITION
PATT ERN/RATE
TRANSITION TYPE
