IDEA Auto-SYNC with RGB/VGA/DVI Analog Video
TIMS MVP™ Setup and Configuration Guide 117
Tips:
The following illustration phase delay properly aligned and poorly aligned. Use the Phase Delay
Adjustment step to make adjustments if your image is not properly aligned. Also, see
AccuStream Auto-SYNC Wizard Step 2: Adjust Phase Delay.

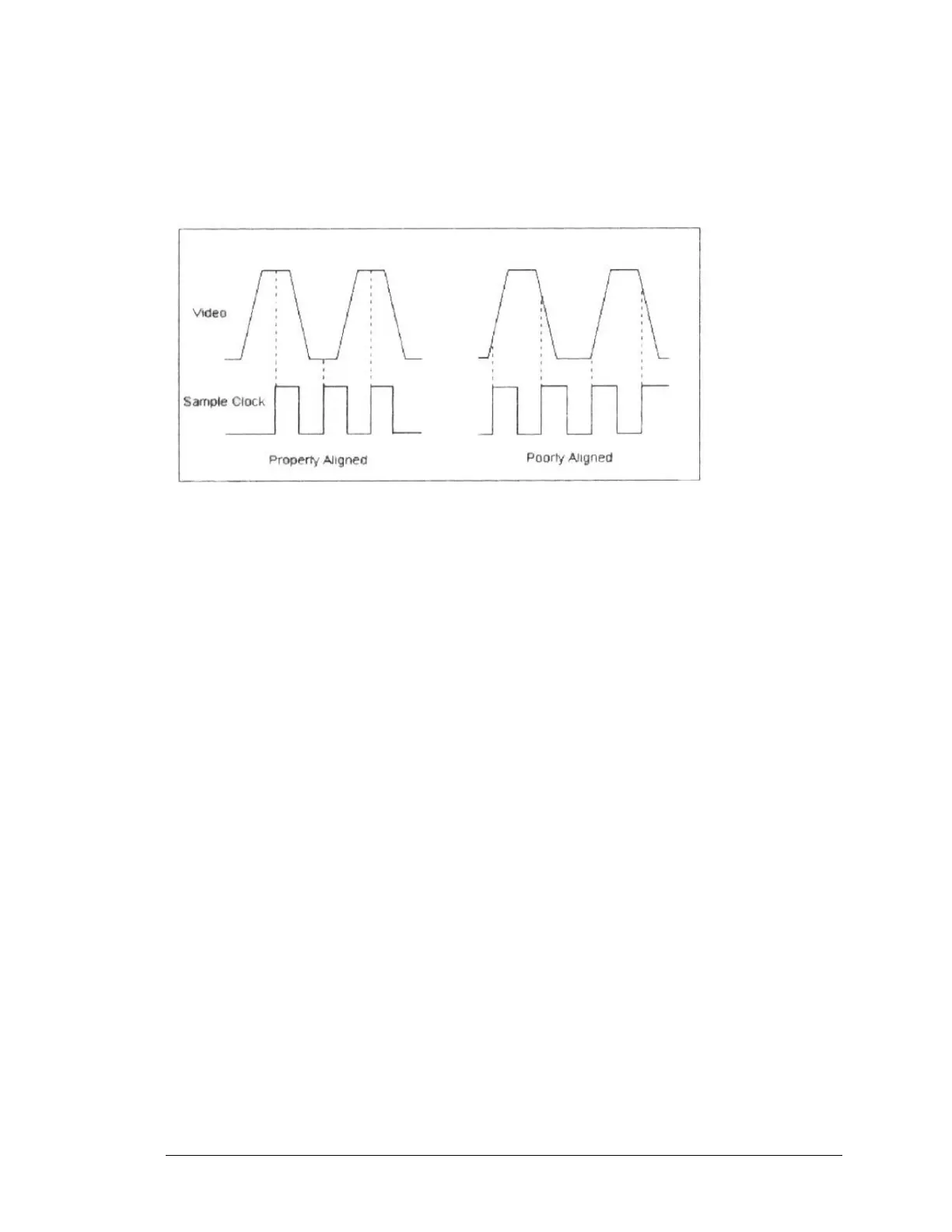

Figure 26: Phase delay adjustment illustration of properly and poorly aligned images
