IDEA Auto-SYNC with RGB/VGA/DVI Analog Video
TIMS MVP™ Setup and Configuration Guide 121
In the next example, the video image is too small. The image is too far from the left
edge.

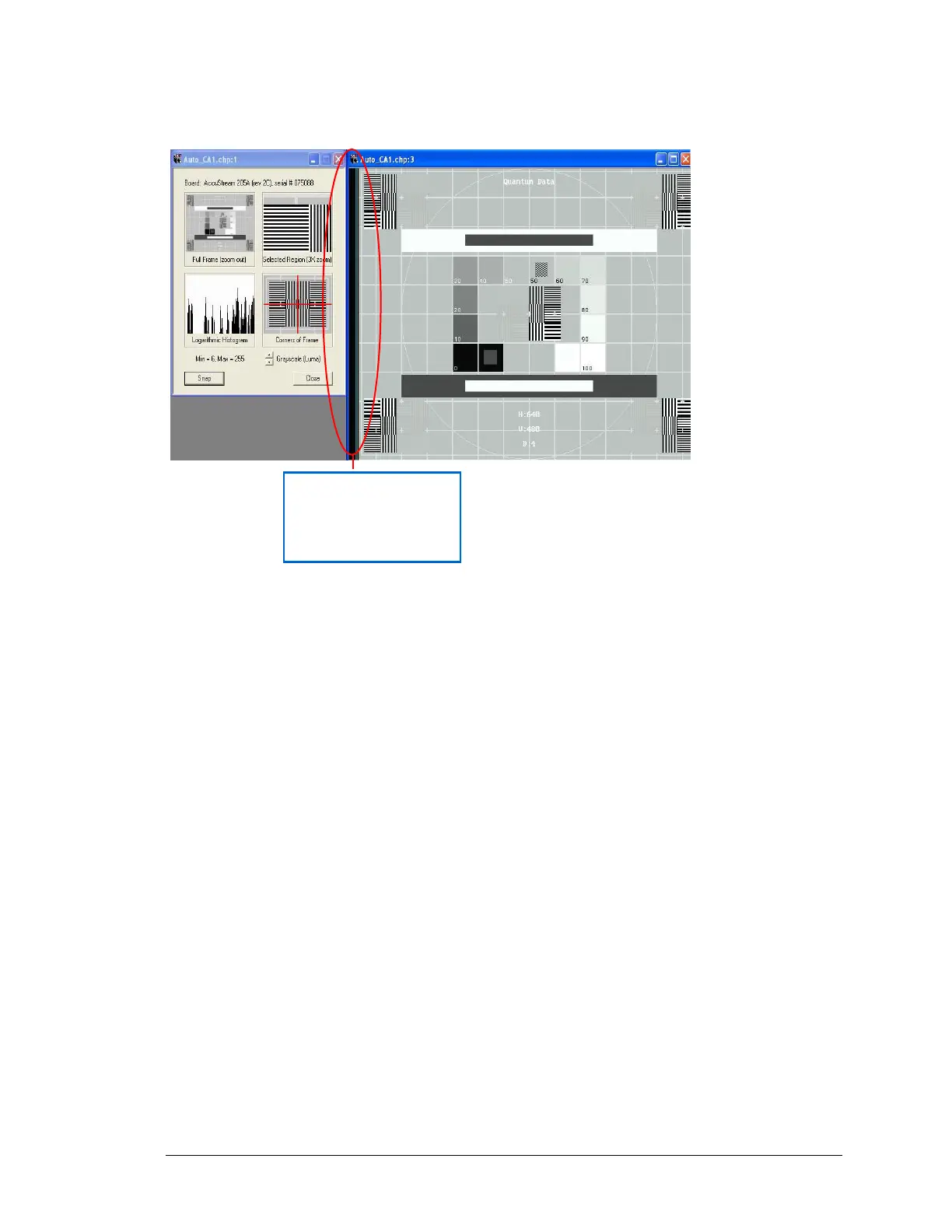

Figure 30: Example of framing values too small
To adjust the image, increase the HBS value to move the image to the left edge.
The image is too
incorrectly positioned and
is too far from the left
edge.
