Using Auto-SYNC for Digital Input Connections
176 TIMS MVP™ Setup and Configuration Guide
In this next example, the value for BLACK is set too high. This means when you move the mouse
cursor over the area which you believe it is set to the correct Brightness value of 0,0,0, it is
higher than that value. In this example, you can see the value is set to 0,3,9.

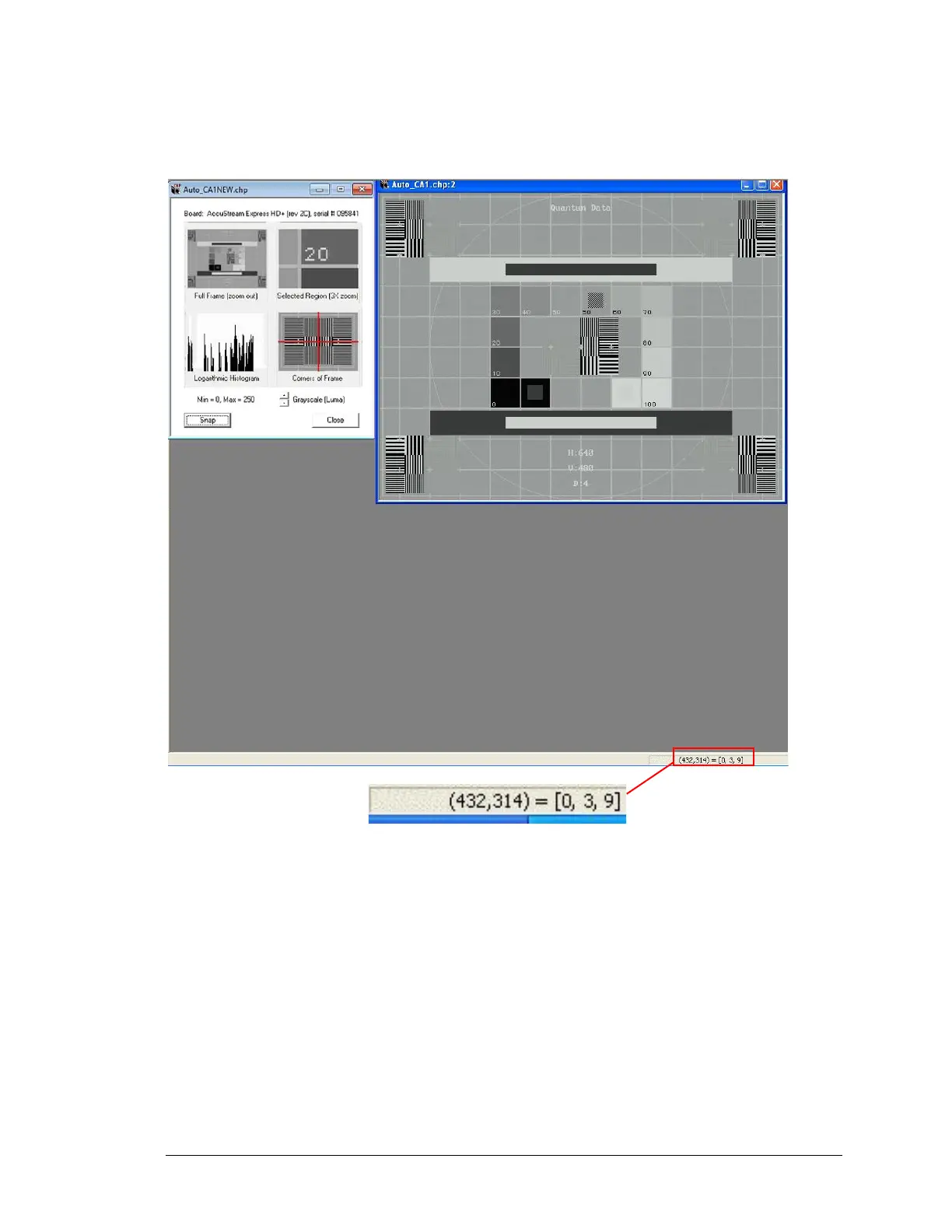

Figure 79: Example of video image where the brightness setting (Black Level) is too high
