Customizing the topology diagram
Select the Customize button to open the Topology Customization window. Modify
the settings as needed and select OK when you are finished.

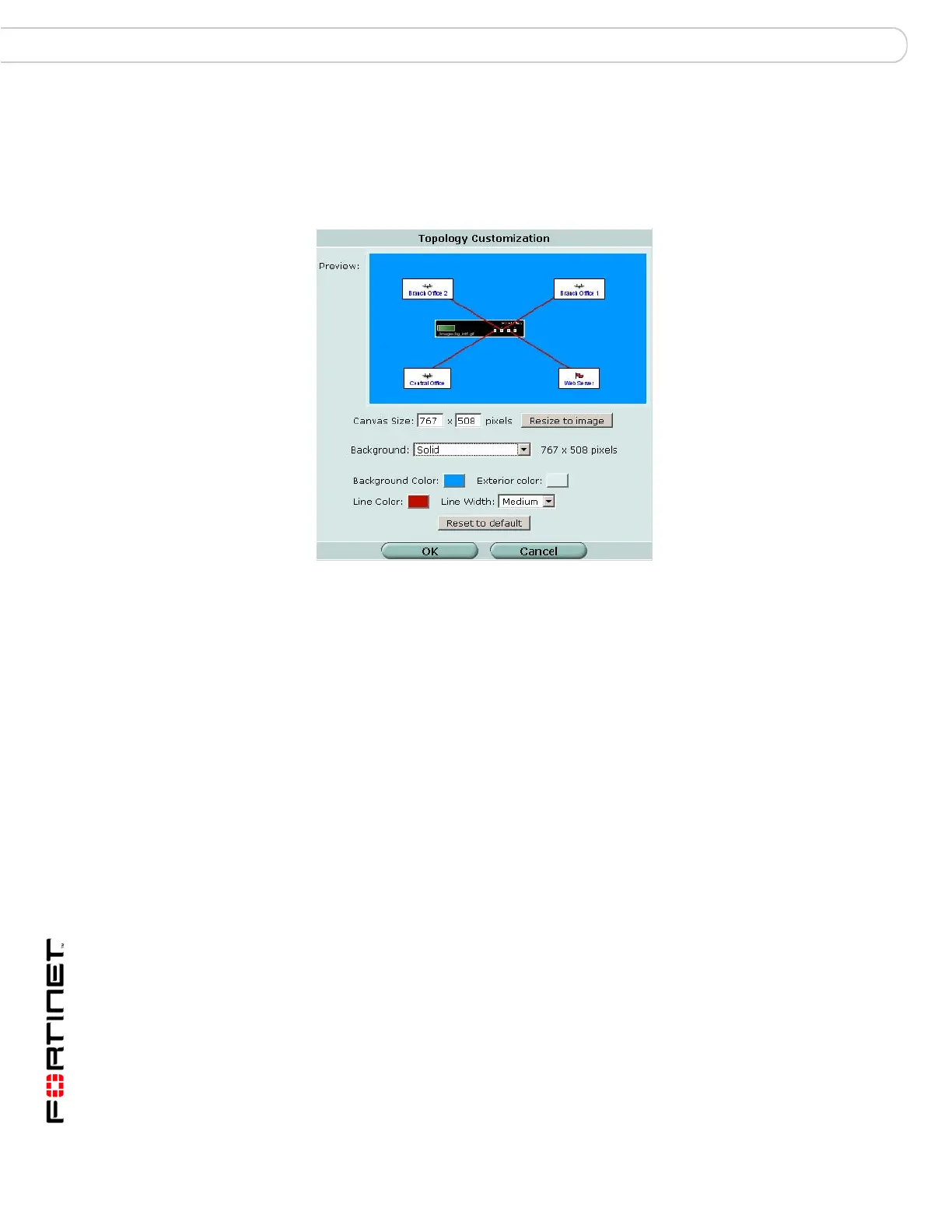

Figure 21: Topology Customization window
Preview A simulated topology diagram showing the effect of the selected
appearance options.
Canvas Size The size of the drawing in pixels.
Resize to Image If you selected an image as Background, resize the diagram to fit
within the image.
Background One of:
Solid - a solid color selected in Background Color
U.S. Map - a map of the United States.
World Map - a map of the world.
Upload My Image - upload the image from Image Path.
Background Color Select the color of the diagram background.
Image path If you selected Upload My Image for Background, enter the path to
you image, or use the Browse button to find it.
Exterior Color Select the color of the border region outside your diagram.
Line Color Select the color of connecting lines between subnet objects and
interfaces.
Line Width Select the thickness of connecting lines.
Reset to Default Reset all settings to default.
