3 Product Overview
46
Product Overview
3

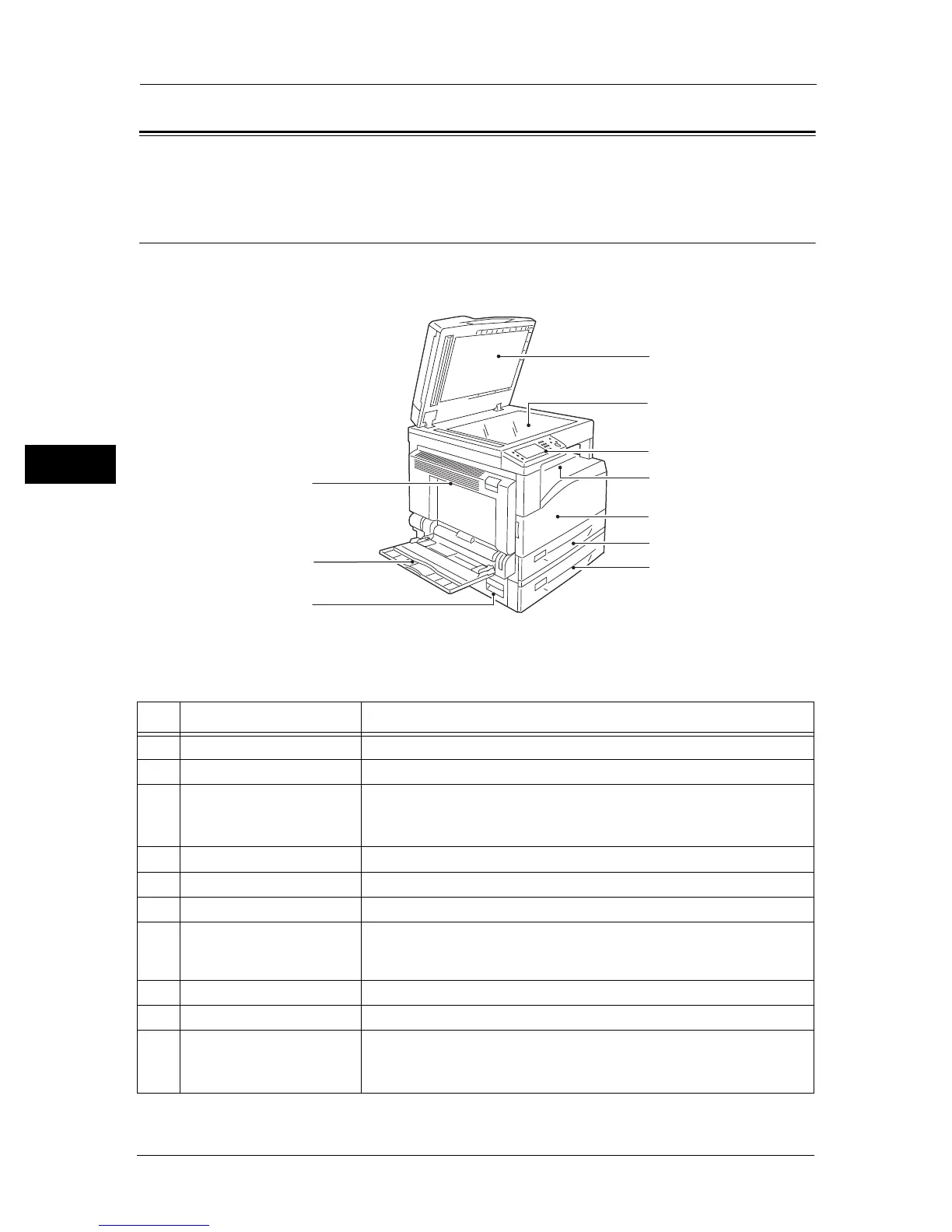

Machine Components
This section describes the machine components and their functions.
Front, Left Side
2
4
1
3
5
7
9
8
6
10
No. Component Description
1 Document glass cover Holds document in place.
2 Document glass Place document here.
3 Control panel Contains the buttons, the LED indicators, and the touch screen used for
operations.
For more information, refer to "Control Panel" (P.52).
4 Right top tray Copies and prints are delivered here, facing down.
5 Front cover Open this cover to replace consumables.
6 Tray 1 (standard tray) Load paper here.
7Tray 2
(One Tray Module)
(Optional)
Optional tray. Load paper here.
8 Left side cover [B] Open this cover to remove any jammed paper from Tray 2.
9 Tray 5 (bypass) Load paper here. The tray can be extended.
10 Left side cover [A] Open this cover to remove any jammed paper.
Note • When the machine works properly, this cover is locked. To open this
cover, make sure to exit Sleep mode and turn the machine's power OFF.
To Next Page
