3 Product Overview
48
Product Overview
3

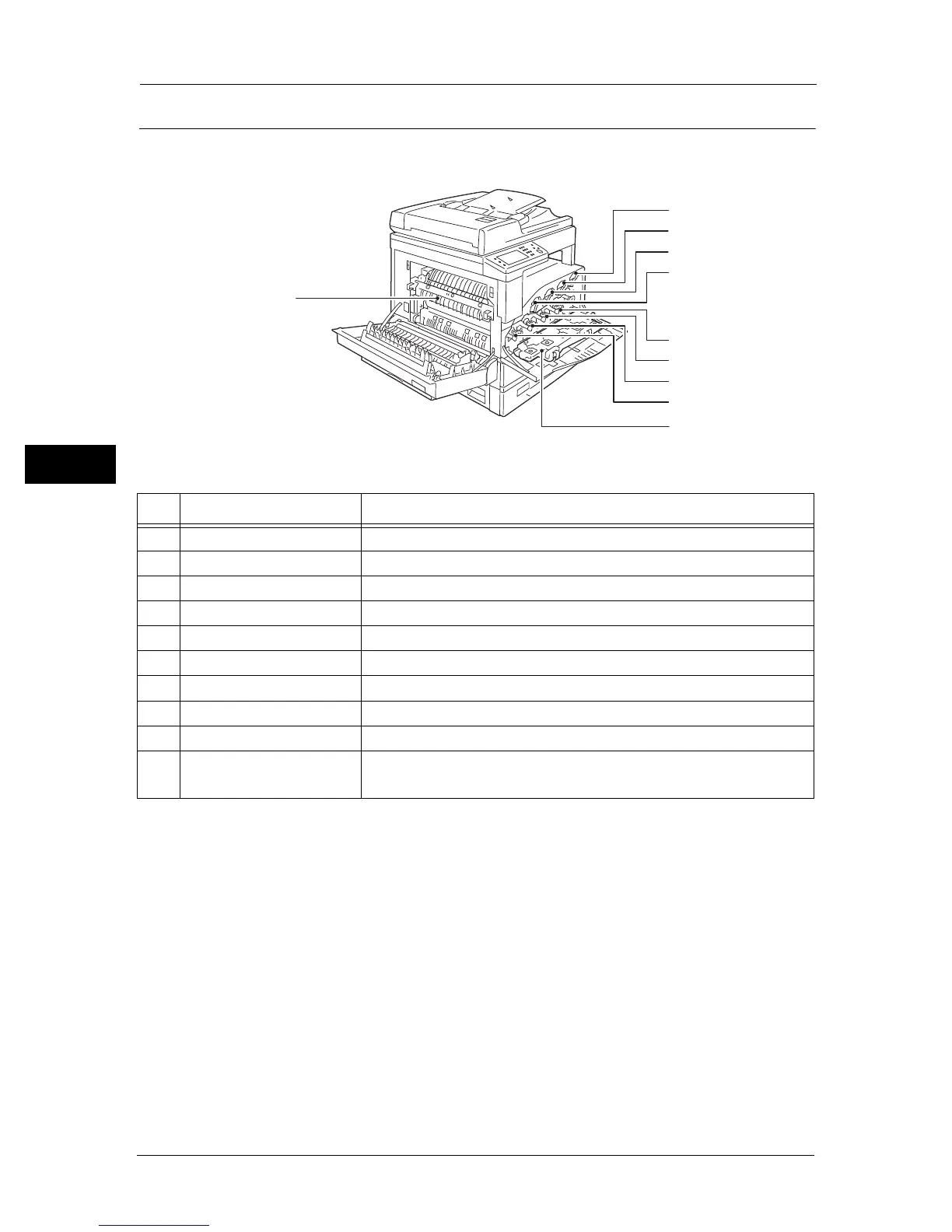

Inside
1
2
3
4
9
10
5
6
7
8
No. Component Description
1 Yellow toner [Y] cartridge Contains yellow toner (the powder used to form the image).
2 Magenta toner [M] cartridge Contains magenta toner (the powder used to form the image).
3 Cyan toner [C] cartridge Contains cyan toner (the powder used to form the image).
4 Black toner [K] cartridge Contains black toner (the powder used to form the image).
5 Yellow drum cartridge [R4] Contains the photoconductor for yellow toner.
6 Magenta drum cartridge [R3] Contains the photoconductor for magenta toner.
7 Cyan drum cartridge [R2] Contains the photoconductor for cyan toner.
8 Black drum cartridge [R1] Contains the photoconductor for black toner.
9 Waste toner container [R5] Collects waste toner.
10 Fusing unit Fuses toner on paper.
Important • Do not touch this unit as it is extremely hot.
