Preliminary steps
â–¶
No steps needed.
Installing a hot-plug PSU

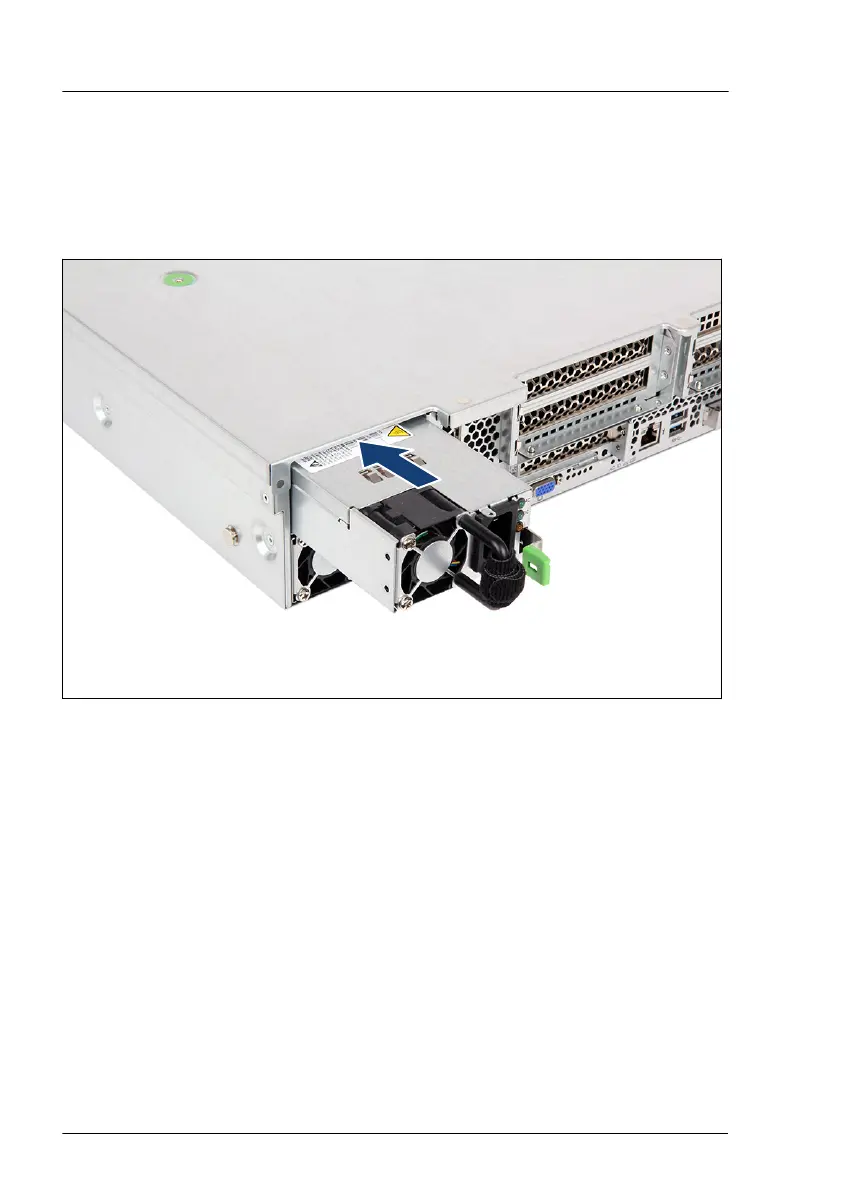

Figure 41: Installing an PSU
â–¶
Push the PSU into its bay as far as it will go until the locking latch snaps in
place.
Concluding steps
â–¶
"Connecting the power cord (AC PSU)" on page
58
.
â–¶
"Performing a fan test" on page 1
18
.
Power supply unit (PSU)
124
Upgrade and Maintenance Manual
RX4770 M5
123
125
Table of Contents
Table of Contents
7
Introduction
17
Concept and Target Groups of this Manual
17
Notational Conventions
17
Before You Start
19
Basic Information
19
Proceeding
19
Advanced Thermal Design (ATD)
19
Installing Optional Components
20
Replacing a Defective Component
20
Classification of Procedures
21
Assignment of Unit Categories
21
Customer Replaceable Units (CRU)
21
Upgrade and Repair Units (URU)
22
Field Replaceable Units (FRU)
23
Average Task Duration
25
Tools You Need at Hand
26
Documentation Overview
26
Downloading Manuals
26
List of Documents
26
Important Information
29
Introduction
29
Safety Instructions
29
Basic Safety Instructions
29
Before Starting up
30
Installation and Operation
30
Batteries
33
Working with Optical Disk Drives (Odds) and Media
33
Laser Information
35
Modules with Electrostatic-Sensitive Devices (ESD Modules)
35
Transporting the Server
37
Installing the Server in the Rack
38
Other Important Information
38
Energy Star
39
CE Conformity
39
FCC Class a Compliance Statement
40
Environmental Protection
41
Basic Hardware Procedures
43
Using Diagnostic Information
43
Proceeding
43
Locating the Defective Server
43
Determining the Error Class
44
Locating the Defective Component
44
Shutting down the Server
45
Disconnecting the Power Cord
46
Getting Access to the Component
47
Safety Notes
47
Extending the Server out of the Rack
48
Removing the Server from the Rack
49
Removing the Top Covers
51
Reassembling
53
Safety Notes
53
Installing the Top Covers
53
Installing the Server in the Rack
55
Sliding the Server into the Rack
57
Connecting the Power Cord (AC PSU)
58
Switching on the Server
59
Handling Riser Modules
60
Positions of Riser Modules
60
Removing the Riser Module 3/4 and 6/7
61
Installing the Riser Module 3/4 and 6/7
62
Removing the Riser Module
64
Installing the Riser Module
65
Handling the OCP Dummy Cover
67
Installing the OCP Dummy Cover
67
Removing the OCP Dummy Cover
68
Handling the Fan Cage
69
Removing the Fan Cage
69
Installing the Fan Cage
71
Handling the CPU Air Duct
72
Removing the CPU Air Duct
72
Installing the CPU Air Duct
74
Handling the Top System Board Holder
74
Removing the Top System Board Holder
74
Installing the Top System Board Holder
79
Basic Software Procedures
85
Validation
85
Starting the Maintenance Task
85
Suspending Bitlocker Functionality
85
Disabling the Boot Watchdog
86
Removing Backup and Optical Disk Media
88
Verifying and Configuring the Backup Software Solution
88
Switching on the ID Indicator
88
Completing the Maintenance Task
89
Updating or Recovering the BIOS and Irmc S5
89
Verifying System Information Backup or Restore
92
Updating Expansion Card Firmware
93
Enabling Option ROM Scan
94
Reconfiguring the Backup Software Solution
95
Resetting the Boot Retry Counter
96
Resetting the Error Status after Replacing Memory Modules or CPU
97
Resetting the Error Status after Replacing Cpus
97
Resetting the Error Status after Replacing Memory Modules
99
Enabling the Boot Watchdog
101
Enabling Replaced Components in the BIOS
102
Verifying the Memory Mode
103
Verifying the System Time Settings
103
Viewing and Clearing the System Event Log (SEL)
104
Updating the NIC Configuration File in a Linux and Vmware Environment
107
Resuming Bitlocker Functionality
108
Performing a RAID Array Rebuild
109
Looking for MAC/WWN/GUID and SAS Addresses
110
Basic Information
110
Looking for the MAC Address of a LAN Controller
110
Looking for the WWN Address of a Fibre Channel Controller
112
Looking for the GUID Address of an Infiniband or Omni-Path Controller
112
Looking for SAS Addresses of SAS Controllers for External Devices
113
Using the Chassis ID Prom Tool
114
Configuring LAN Teaming
116
Switching off the ID Indicator
117
Performing a Fan Test
118
Power Supply Unit (PSU)
121
Safety Notes
121
Basic Information
121
Redundant Power Supply
123
Installing a Hot-Plug PSU
123
Removing a Hot-Plug PSU
125
Replacing a Hot-Plug PSU
129
Replacing the Power Distribution Board
130
Hard Disk Drive (HDD) / Solid State Disk (SSD)
137
Safety Notes
137
Basic Information
138
Handling Hdds or Ssds Without Installation Frame
140
Inch HDD/SSD and 2.5-Inch Installation Frame
140
Inch HDD/SSD Configurations
142
Overview of Configurations
142
Configuration with up to 16 HDD/SSD Modules
142
Configuration with up to 12 Sas/Sata/Pcie SSD Modules
143
Configuration with up to 12 Sas/Sata/Pcie SSD Modules and up to Four SAS/SATA HDD/SSD Modules
144
Configuration with up to Eight SAS/SATA HDD/SSD or Pcie SSD Modules
145
Installing 2.5-Inch HDD/SSD Modules
147
Removing 2.5-Inch HDD/SSD Modules
149
Replacing a 2.5-Inch HDD/SSD Module
152
Replacing the 16X 2.5-Inch HDD Backplane
154
Replacing the SAS Expander Board
158
Fans
163
Safety Notes
163
Basic Information
163
Replacing a Defective Fan Module
164
Expansion Cards and Backup Units
167
Safety Notes
167
Basic Information
168
Handling Slot Brackets
171
Installing Slot Brackets
171
Removing Slot Brackets
173
Handling SFP+ Transceiver Modules
174
Installing SFP+ Transceiver Modules
174
Removing SFP+ Transceiver Modules
179
OCP (Open Compute Project) Modules
183
Position of the OCP Modules
183
Installing an OCP Module
184
Removing an OCP Module
185
Replacing the OCP Module
187
Installing SFP+ Transceiver Modules to OCP Modules (Optional)
188
Expansion Cards and Riser Cards
190
Installing an Expansion Card
190
Installing an Infiniband Connectx6 (HDR 200 GB) Controller (Optional)
200
Removing an Expansion Card
209
Replacing an Expansion Card
210
Replacing a Riser Card
213
Installing a TFM
216
Removing a TFM
219
Replacing a TFM
222
Flash Backup Unit (FBU)
222
Variants of Fbus and FBU Cables
222
Installing an FBU
223
Removing an FBU
233
Replacing an FBU
237
Main Memory
239
Safety Notes
239
Basic Information
240
Slots and Features
240
Memory Population Conditions
242
Modes of Operation
243
Independent Channel Mode
243
Mirrored Channel Mode
247
Rank Sparing Mode
249
DCPMM (Data Center Persistent Memory - Former Code Name AEP)
252
DCPMM Features (AEP Features)
252
DDR4 and AEP Population Rules
254
Installing Memory Modules
257
Removing Memory Modules
262
Replacing Memory Modules
264
Processor (CPU)
269
Safety Notes
269
Basic Information
270
Upgrading to 4 CPU Configuration
272
Replacing a CPU or Heat Sink
281
Accessible Drives
291
Optical Disk Drive (ODD)
291
Safety Notes
291
Basic Information
291
Installing the ODD
293
Removing the ODD
297
Replacing the ODD
300
Front Panel
303
Safety Notes
303
Basic Information
303
Front Panel Module
303
Replacing the Front Panel Module
303
System Board and Components
311
Safety Notes
311
Basic Information
311
CMOS Battery
312
Replacing the CMOS Battery
312
Trusted Platform Module (TPM)
315
TPM Kit
315
Position of the TPM
316
Installing the TPM
316
Removing the TPM
319
Replacing the TPM
324
Irmc Microsd Card
327
Note for Embedded Lifecycle Management (Elcm)
327
Installing the Irmc Microsd Card
327
Removing the Irmc Microsd Card
329
Replacing the Irmc Microsd Card
331
M.2 Ssd
332
Slots and Bolts for M.2 Ssds
332
Installing the M.2 SSD
334
Removing the M.2 SSD
338
Replacing the M.2 SSD
341
Dual Microsd 64GB Enterprise
344
Basic Information
344
Installing the Dual Microsd 64GB Enterprise
344
Removing the Dual Microsd 64GB Enterprise
347
Replacing the Dual Microsd 64GB Enterprise
349
Replacing the Microsd Card
351
System Board
353
Replacing the Top System Board
353
Replacing the Bottom System Board
358
Liquid Cooling (LC)
371
Safety Notes
371
Basic Information
372
Replacing the CPU or LC Kit
380
Replacing Memory Modules
396
Installing a Memory Spacer
398
Mechanical Overview
401
Server Front
401
Inch HDD/SSD Configuration
401
Server Rear
402
Server Rear with Air Cooling
402
Server Rear with Liquid Cooling
403
Server Interior
404
Servers with Air Cooling
404
Connectors and Indicators
406
System Board
406
Bottom System Board
406
Top System Board
411
Server Front
416
Connectors on the Front Panel Module
416
Indicators on the Front Panel
416
Indicator on the ODD
420
Indicators on Hot-Plug HDD / SSD / Pcie SSD Modules
421
Server Rear
422
Connectors on the Server Rear
422
AC Connected, ID, CSS and Global Error Indicators
424
LAN Indicators
427
Indicator on Hot-Plug PSU
429
Indicator of the Hot-Plug System Fan
430
Acoustic Indicators
430
Onboard Settings
432
Minimum Startup Configuration
433
Supplied Documents
435
List of Used Cables
438
List of Used Cables (Continuation)
439
Basic
440
Odd
441
Dual Microsd 64GB Enterprise
442
PSAS/PRAID Cp5Xx/4Xx
443
Praid_Ep4Xx
444
Praid_Ep5Xxi
445
Praid_Ep540E
446
Data
447
Other
448
Power
449
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Fujitsu PRIMERGY RX4770 M5 and is the answer not in the manual?
Ask a question
Fujitsu PRIMERGY RX4770 M5 Specifications
General
Brand
Fujitsu
Model
PRIMERGY RX4770 M5
Category
Server
Language
English
Related product manuals
Fujitsu PRIMERGY RX4770 M6
468 pages
Fujitsu Primergy RX4770 M1
332 pages
Fujitsu PRIMERGY RX4770 M2
84 pages
Fujitsu PRIMERGY RX4770 M4
82 pages
Fujitsu PRIMERGY RX2540 M5
112 pages
Fujitsu PRIMERGY RX2520 M5
98 pages
Fujitsu PRIMERGY RX2530 M5
106 pages
Fujitsu PRIMERGY RX1330 M5
413 pages
Fujitsu PRIMERGY TX2550 M5
106 pages
Fujitsu PRIMERGY TX1320 M5
407 pages
Fujitsu PRIMERGY TX1310 M5
265 pages
Fujitsu Primergy RX100 S3
287 pages
To Next PageTo Next PageTo Previous PageTo Previous Page
Loading...
Need help?
General
