16.2.1.2 Top system board
Onboard connectors
CPU 3 DIMM 2Q
CPU 3 DIMM 1P
CPU 3 DIMM 1N
CPU 3 DIMM 2N
CPU 3 DIMM 1Q
CPU 3 DIMM 2P
CPU 4 DIMM 1W
CPU 4 DIMM 2W
CPU 4 DIMM 1V
CPU 4 DIMM 2V
CPU 4 DIMM 1U
CPU 4 DIMM 2U
CPU 4 DIMM 2X
CPU 4 DIMM 1X
CPU 4 DIMM 2Y
CPU 4 DIMM 1Y
CPU 4 DIMM 2Z
CPU 4 DIMM 1Z
CPU 3 DIMM 1R
CPU 3 DIMM 2S
CPU 3 DIMM 2T
CPU 3 DIMM 1T
CPU 3 DIMM 2R
CPU 3 DIMM 1S
PUMP4
Slim
line2
Slimline1
Slimline3
PUMP3
Slimline4
CPU 4
CPU 3

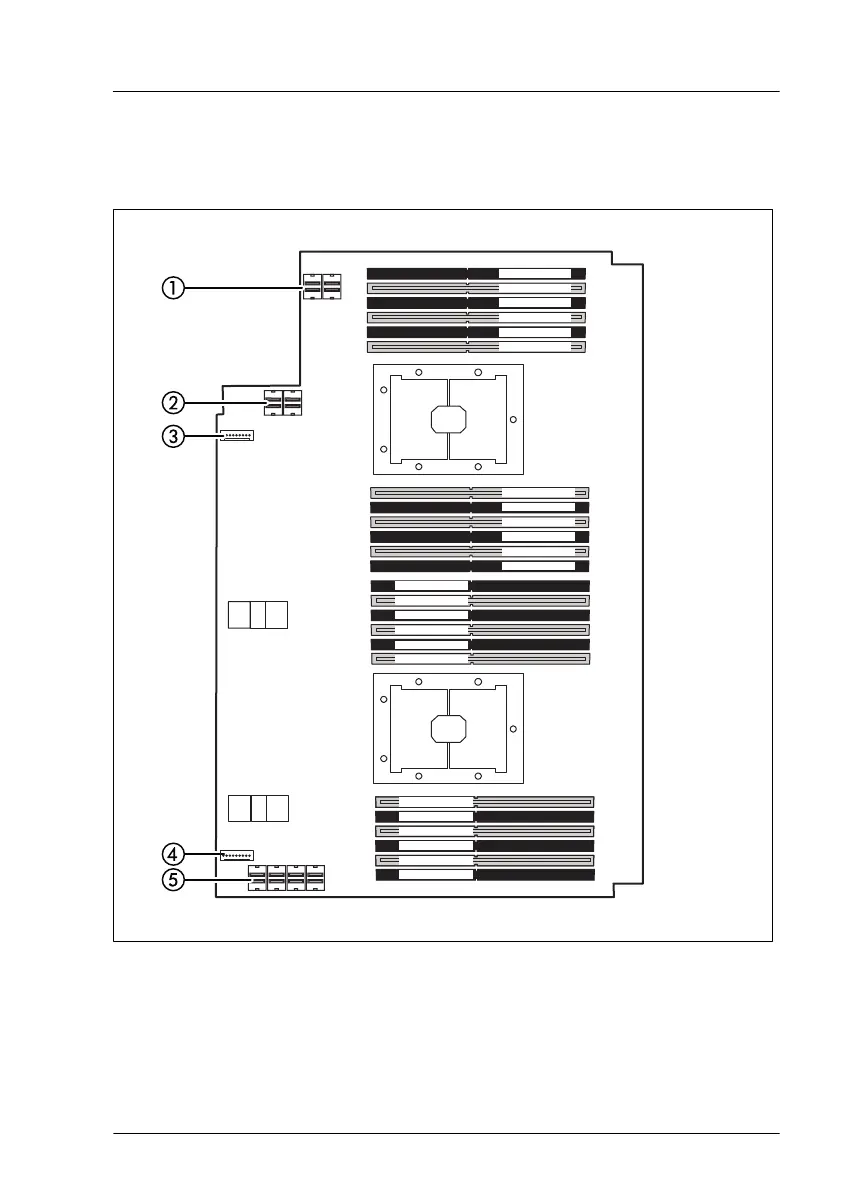

Figure 245: Internal connectors of the top system board
