Remove all remaining external cables from the I/O panel and expansion
cards.
▶
Release the locking bars on both rack rails (1).
▶
Lift the server out of the rack rails (2) and position it on an even surface.
4.4.4
Removing the top covers
Removing the fan cover

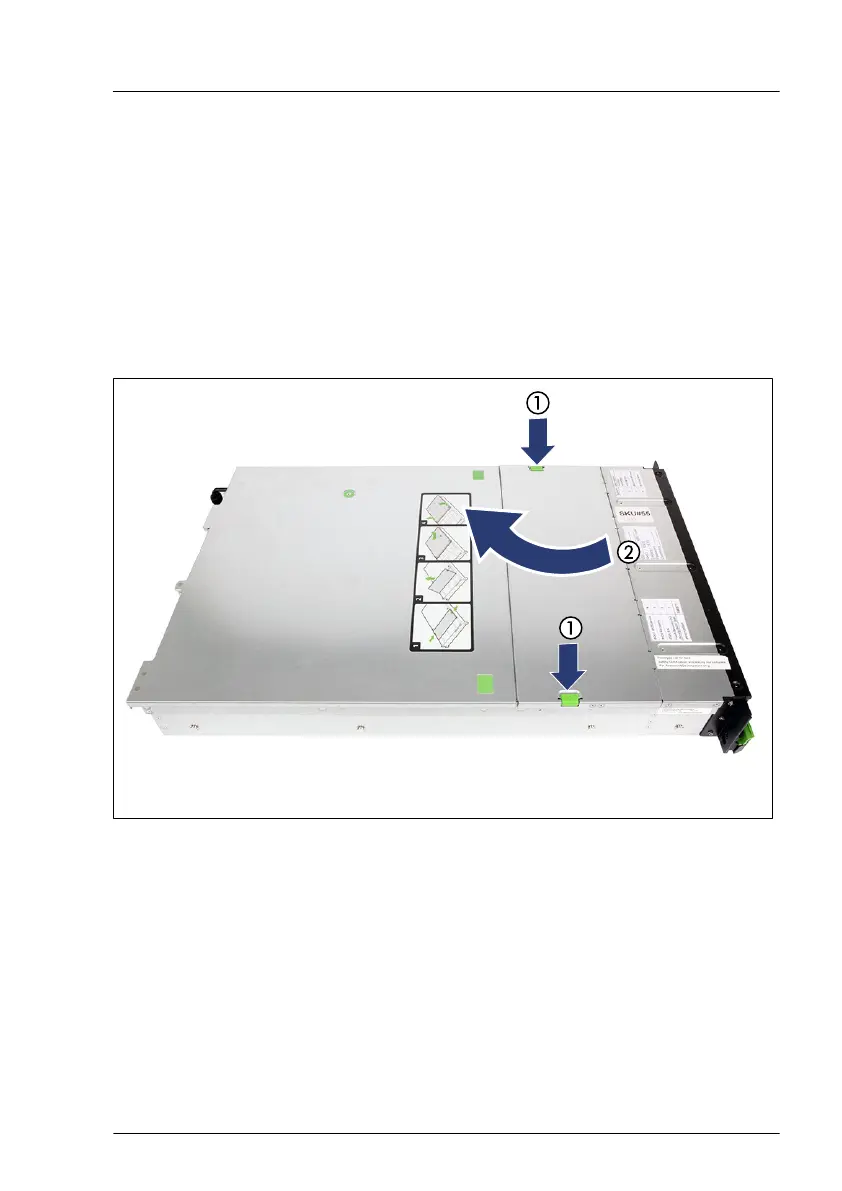

Figure 5: Removing the fan cover
▶
Push the green touch points inside (1).
▶
Lift of
f the fan cover upward in a slight angle (2).
Basic hardware procedures
RX4770 M5 Upgrade and Maintenance Manual 51
