16 Appendix A
16.1
Mechanical overview
16.1.1 Server front
16.1.1.1 2.5-inch HDD/SSD configuration

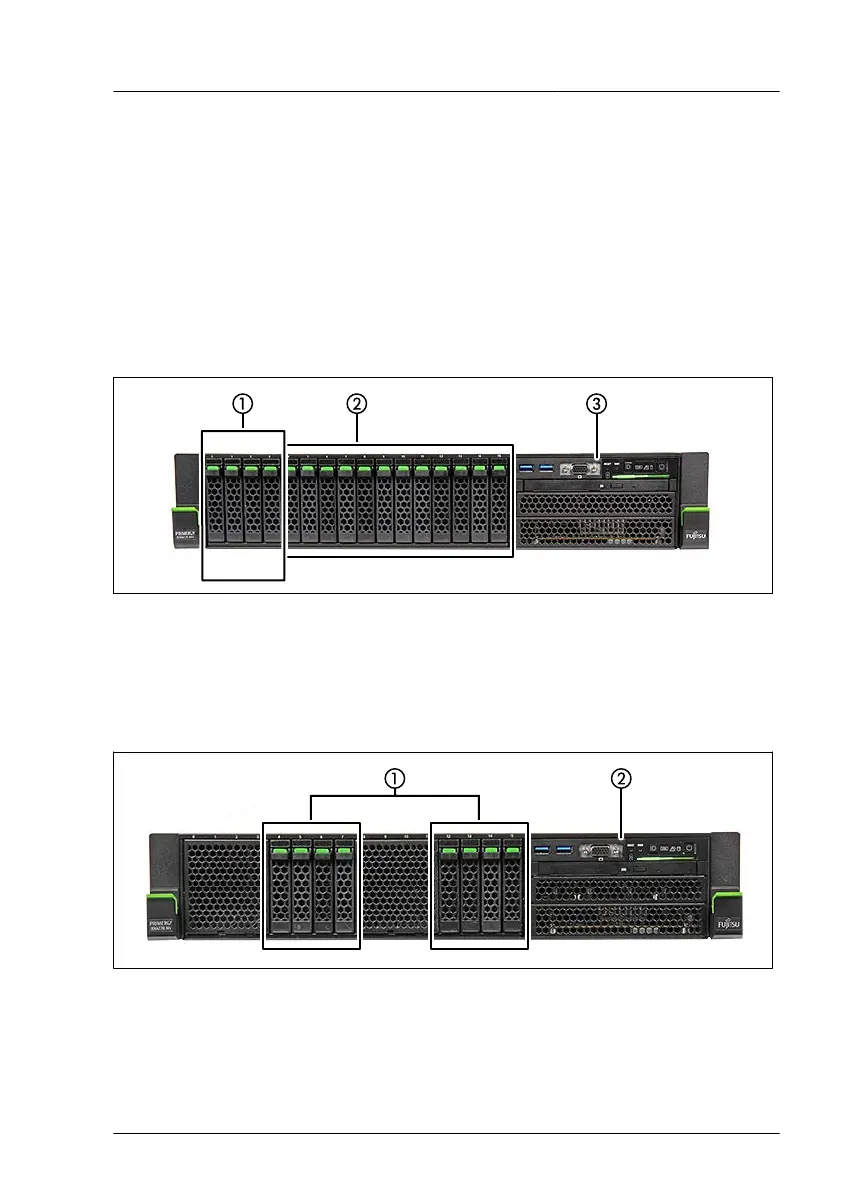

Figure 237: Front side with 16x 2.5-inch HDD
1 Max. space for 4x HDDs/SSDs
(depending on configuration,
impossible to install PCIe SSD)
2 Max. space for 12x HDDs/SSDs or 12x
PCIe SSDs (depending on
configuration)
3
Front panel module
Figure 238: Front side with 8x 2.5-inch HDD
1 Max. space for 8x HDDs/SSDs or 8x
PCIe SSDs (depending on
configuration)
2 Front panel module
RX4770 M5 Upgrade and Maintenance Manual 401
