Installing a 2.5-inch HDD/SSD module

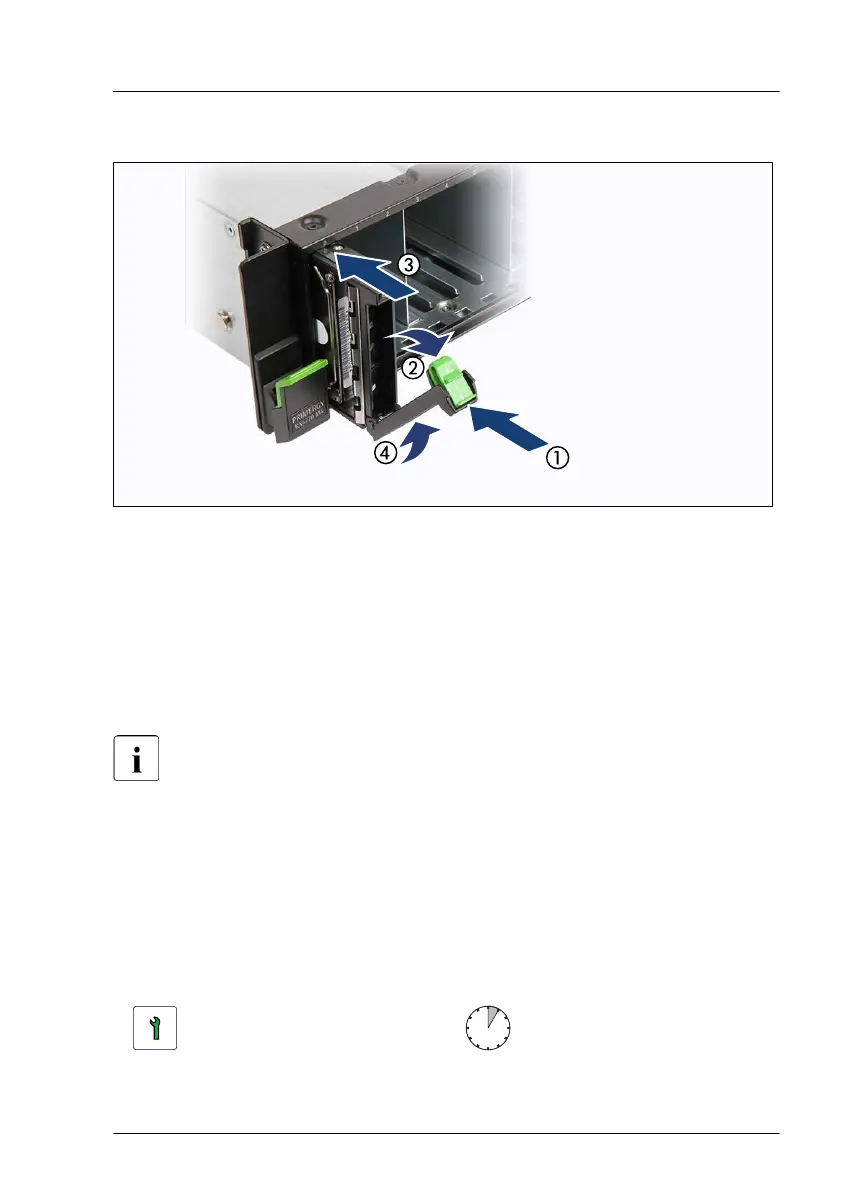

Figure 59: Inserting the 2.5-inch HDD/SSD module
▶
Pinch the green locking clip (1) and open the locking lever (2).
▶
Insert the HDD/SSD module into a drive bay and carefully push back as far
as it will go (3).
▶
Close the locking lever in the direction of the arrow until it engages (4).
▶
When using a RAID array
, add the additional HDD/SSD to the RAID array.
Configuring the RAID array, see the documentation of the RAID
controller
, used in your configuration, see "Documentation overview" on
page 26.
Concluding steps
▶
No steps needed.
7.4.3
Removing 2.5-inch HDD/SSD modules
Customer Replaceable
Unit (CRU)
Hardware: 5 minutes
Hard disk drive (HDD) / solid state disk (SSD)
RX4770 M5 Upgrade and Maintenance Manual 149
