Installing the riser module 3/4 and 6/7

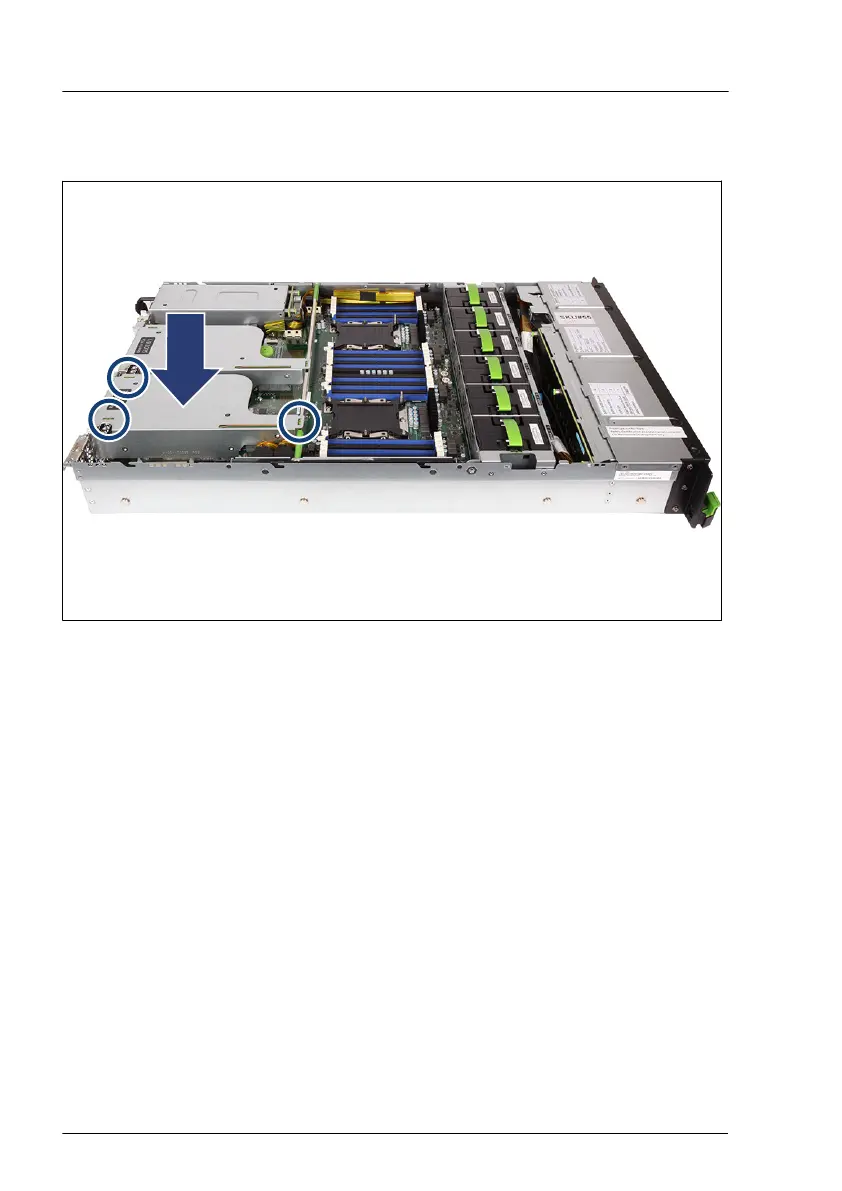

Figure 14: Installing a riser module (example: riser module 3/4) (A)
▶
Install the riser module into the system board slot and press down the green
touch points (see circles).
Basic hardware procedures
62
Upgrade and Maintenance Manual
RX4770 M5
61
63
