3RX4770 M5

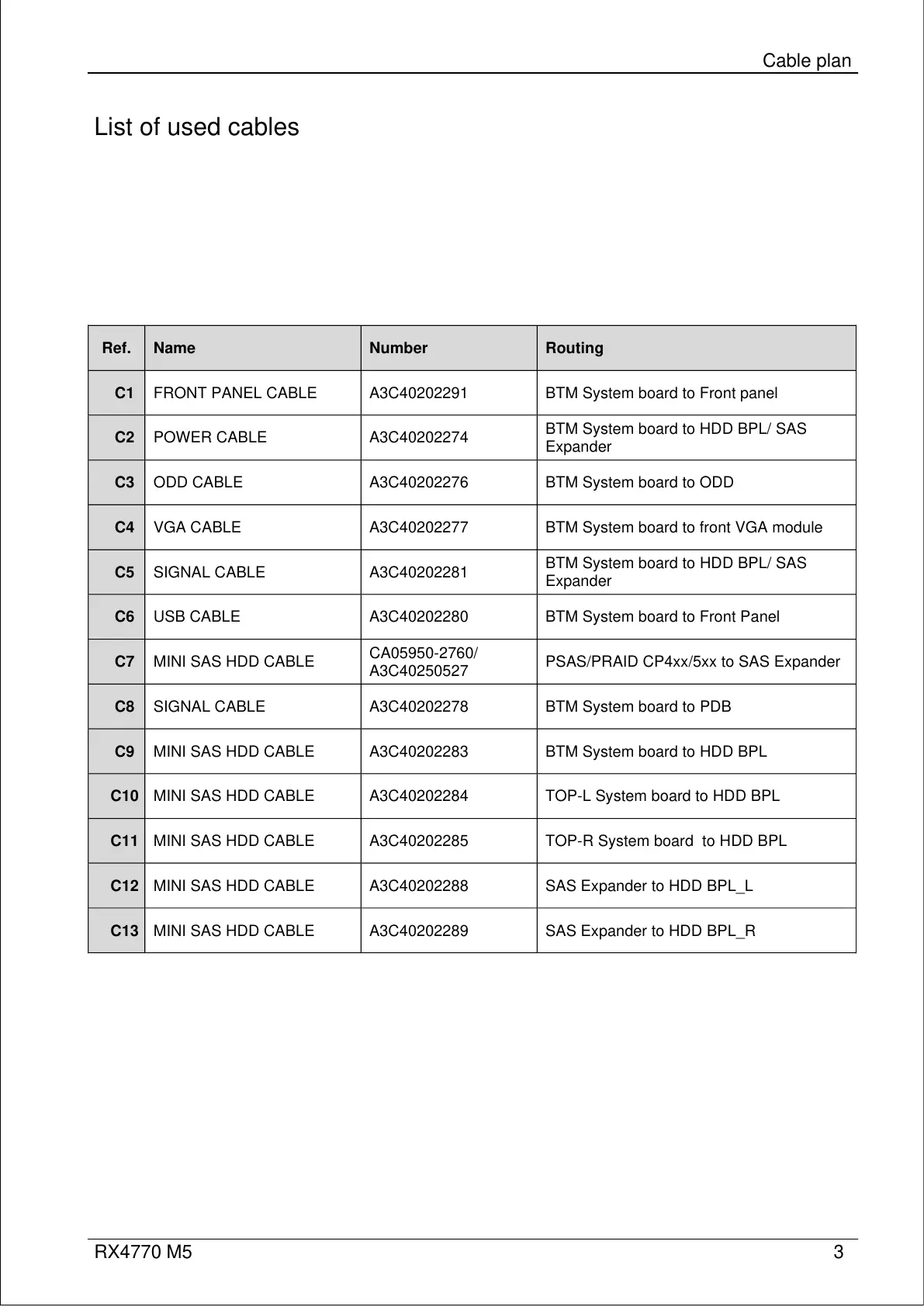

List of used cables
Cable plan
Ref.
Name
Number
Routing
C1
FRONT PANEL CABLE
A3C40202291
BTM System board to Front panel
C2
POWER CABLE
A3C40202274
BTM System board to HDD BPL/ SAS
Expander
C3
ODD CABLE
A3C40202276
BTM System board to ODD
C4
VGA CABLE
A3C40202277
BTM System board to front VGA module
C5
SIGNAL CABLE
A3C40202281
BTM System board to HDD BPL/ SAS
Expander
C6
USB CABLE
A3C40202280
BTM System board to Front Panel
C7
MINI SAS HDD CABLE
CA05950-2760/
A3C40250527
PSAS/PRAID CP4xx/5xx to SAS Expander
C8
SIGNAL CABLE
A3C40202278
BTM System board to PDB
C9
MINI SAS HDD CABLE
A3C40202283
BTM System board to HDD BPL
C10
MINI SAS HDD CABLE
A3C40202284
TOP-L System board to HDD BPL
C11
MINI SAS HDD CABLE
A3C40202285
TOP-R System board to HDD BPL
C12
MINI SAS HDD CABLE
A3C40202288
SAS Expander to HDD BPL_L
C13
MINI SAS HDD CABLE
A3C40202289
SAS Expander to HDD BPL_R
