7.4 2.5-inch HDD/SSD configurations
7.4.1
Overview of configurations
7.4.1.1 Configuration with up to 16 HDD/SSD modules
SAS HDDs must not be populated above or below BC-SAS/BC-SATA
HDDs. In order to avoid this configuration, please make a free bay
intentionally
. For example, if only one SAS drive or one BC-SAS/BC-
SATA drive is ordered, this drive will be installed in position 0 and
position 1 will not be used.
SAS HDDs and BC-SAS/BC-SATA HDDs can be mixed as long as SAS
drives are not populated above or below BC-SAS/BC-SATA HDDs. The
same kind of HDDs can be populated above or below each other.

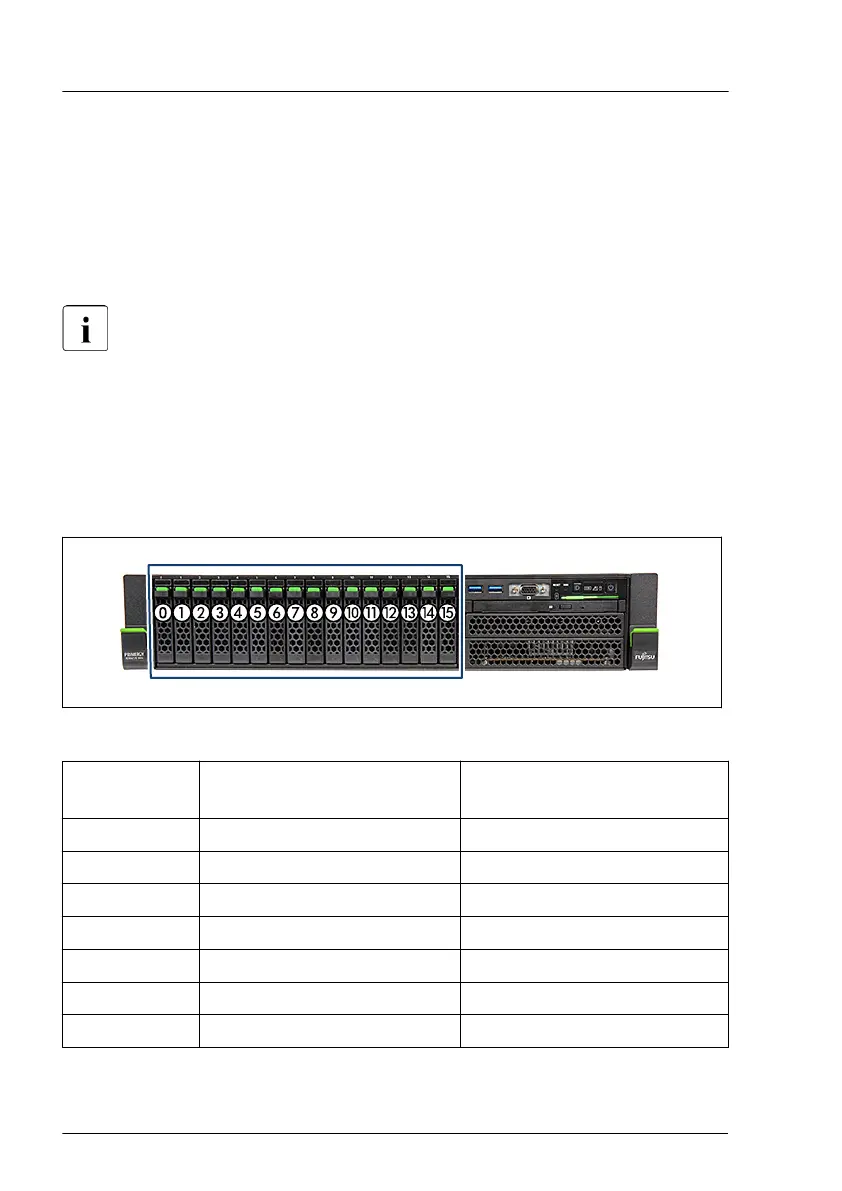

Figure 53: Configuration with up to 16 2.5-inch HDDs/SSDs
Position HDD install order
ServerView RAID Manager
display name
[0] HDD0 Vendor Product (0)
[1] HDD1 Vendor Product (1)
[2] HDD2 Vendor Product (2)
[3] HDD3 Vendor Product (3)
[4] HDD4 Vendor Product (4)
[5] HDD5 Vendor Product (5)
[6] HDD6 Vendor Product (6)
Hard disk drive (HDD) / solid state disk (SSD)
142 Upgrade and Maintenance Manual RX4770 M5
