4.9 Handling the OCP dummy cover

4.9.1

Installing the OCP dummy cover

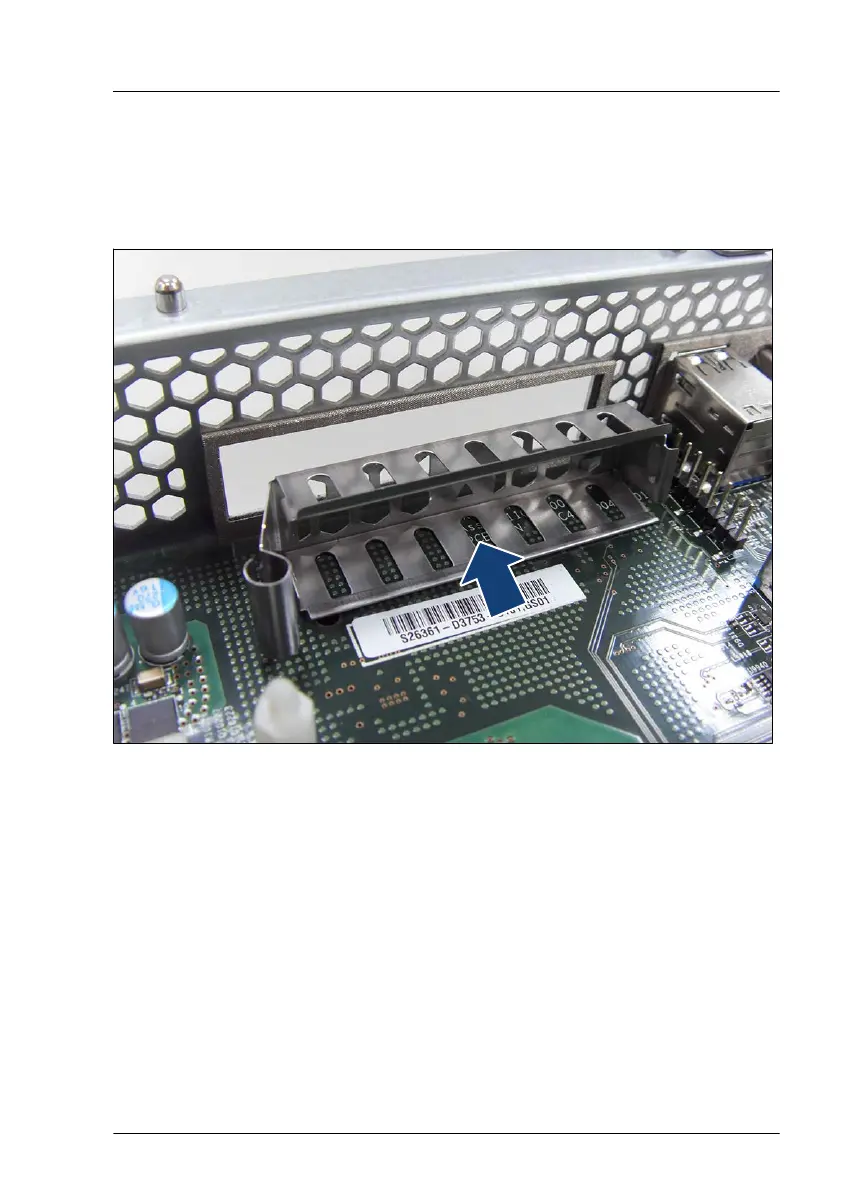

Figure 20: Installing the dummy cover

▶

Install the dummy cover

Basic hardware procedures

RX4770 M5 Upgrade and Maintenance Manual 67
