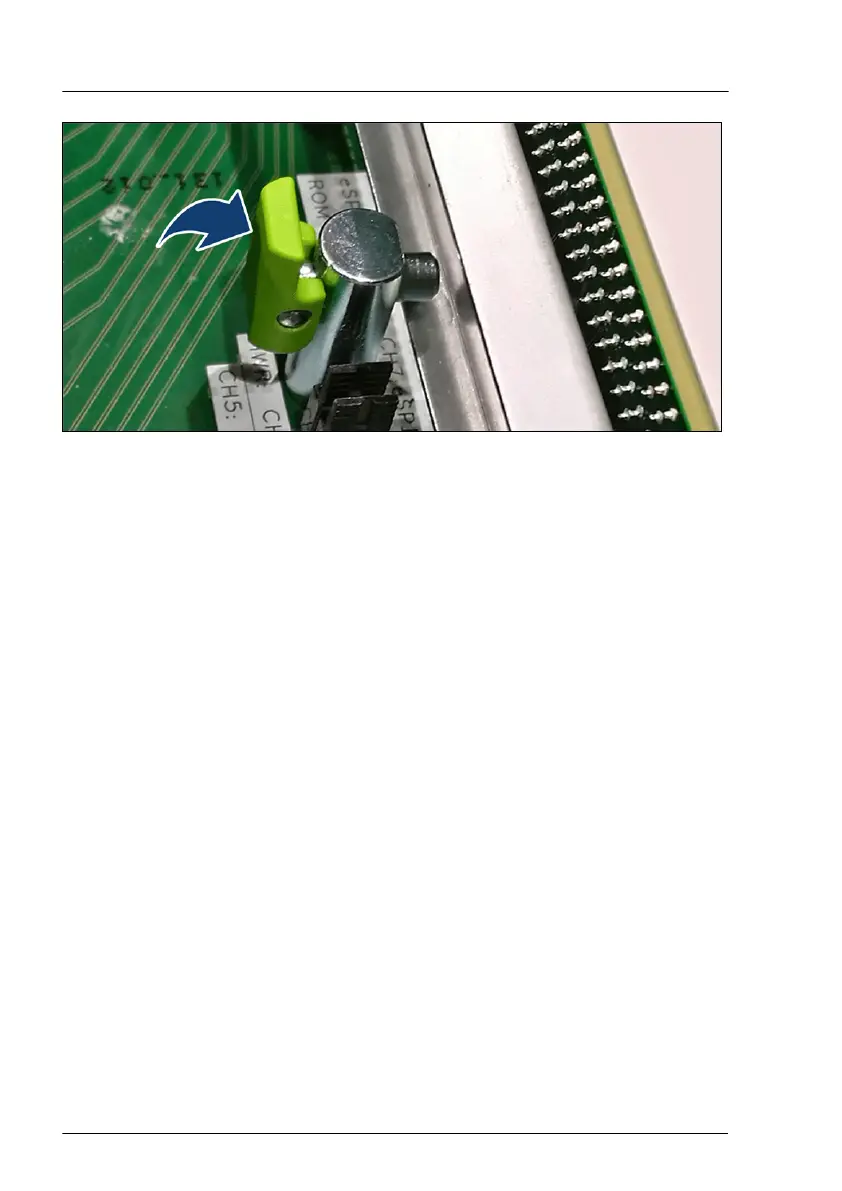

Figure 19: Locking lever

▶

Lock the locking lever to fasten the riser module.

▶

If necessary

, connect the cables to the other components.

Basic hardware procedures

66 Upgrade and Maintenance Manual RX4770 M5
