13RX4770 M5

Other

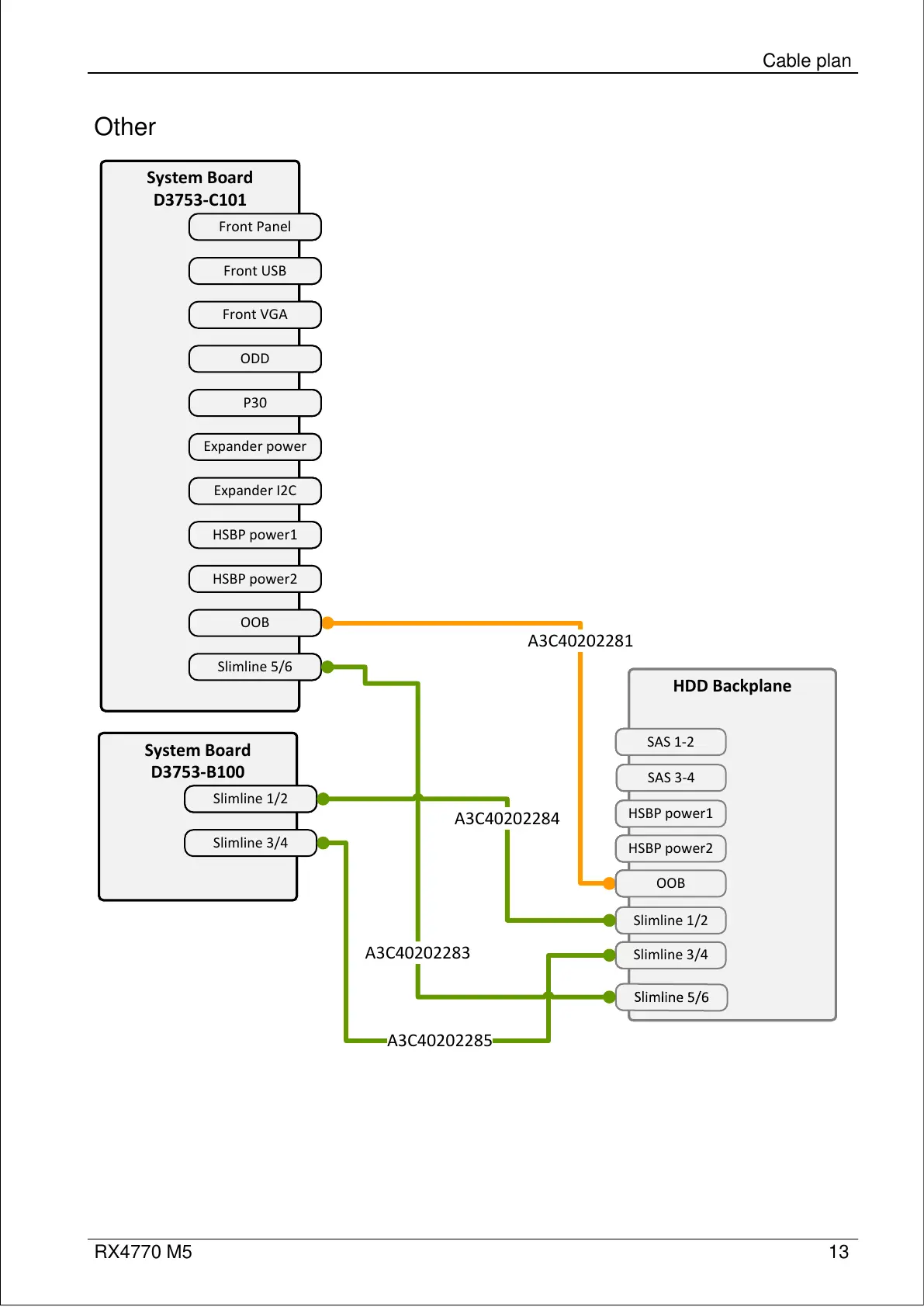

Cable plan

System Board

D3753-B100

System Board

D3753-B100

A3C40202281

System Board

D3753-C101

Front Panel

Front USB

Front VGA

ODD

P30

Expander power

Expander I2C

HSBP power1

Slimline 5/6

System Board

D3753-C101

Front Panel

Front USB

Front VGA

ODD

P30

Expander power

Expander I2C

HSBP power1

Slimline 5/6

HSBP power2

OOB

System Board

D3753-C101

Front Panel

Front USB

Front VGA

ODD

P30

Expander power

Expander I2C

HSBP power1

Slimline 5/6

HSBP power2

OOB

Slimline 1/2Slimline 1/2Slimline 1/2

Slimline 3/4

HDD Backplane

SAS 3-4

HSBP power2

HSBP power1

OOB

Slimline 3/4

SAS 1-2

SAS 3-4

HSBP power2

HSBP power1

OOB

Slimline 3/4

SAS 1-2

Slimline 1/2

SAS 3-4

HSBP power2

HSBP power1

OOB

Slimline 3/4

SAS 1-2

Slimline 1/2

HDD Backplane

SAS 3-4

HSBP power2

HSBP power1

OOB

Slimline 3/4

SAS 1-2

Slimline 1/2

HDD Backplane

SAS 3-4

HSBP power2

HSBP power1

OOB

Slimline 3/4

SAS 1-2

Slimline 1/2

A3C40202283

A3C40202284

A3C40202285
