14.4.2 Position of the TPM

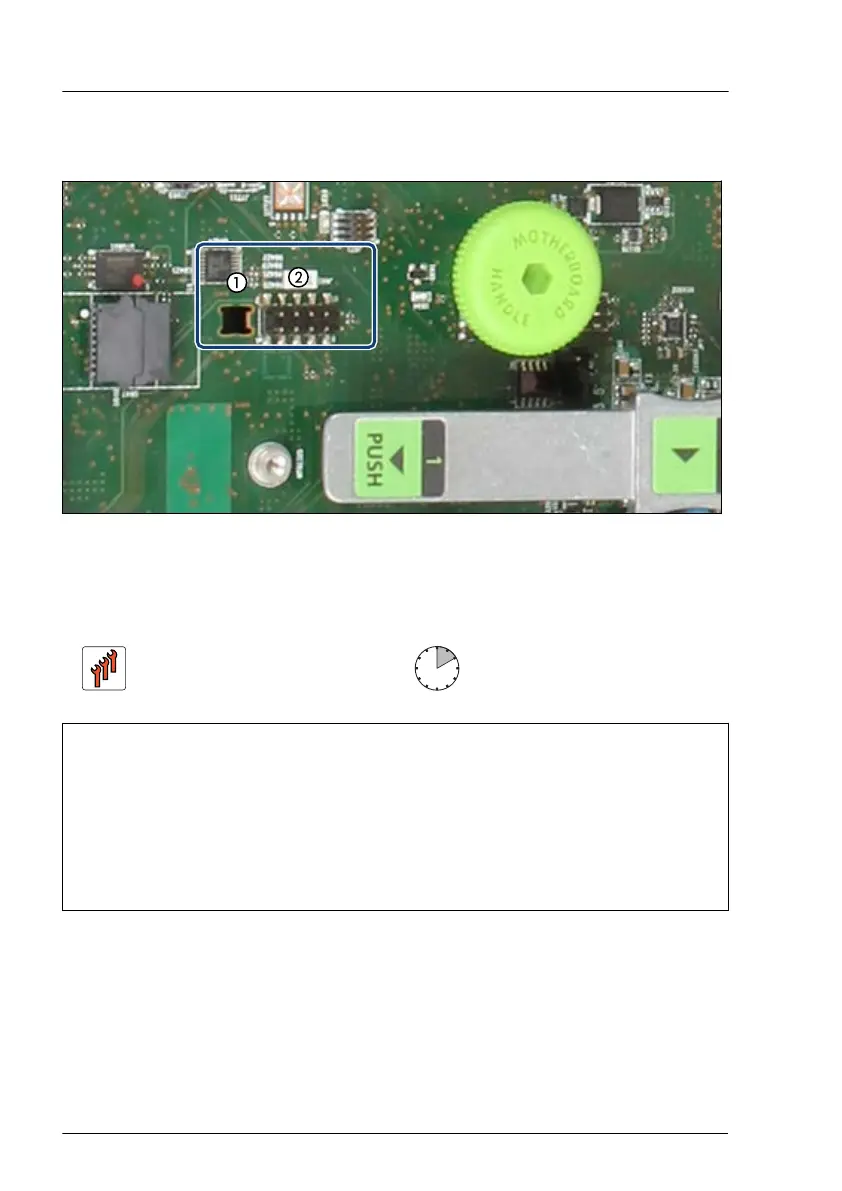

Figure 176: Position on the bottom system board
14.4.3 Installing the TPM
Field Replaceable Unit
(FRU)
Hardware: 5 minutes
Software: 5 minutes
Tools: – Phillips PH2 / (+) No. 2 screw driver (for housing cover)
–
Bit screw driver
–
TPM bit insert
(*)
(*)
For Japan:
– TPM module fixing tool (S26361-F3552-L909)
Preliminary steps
â–¶
"Suspending BitLocker functionality" on page
85.
â–¶
"Shutting down the server" on page 45.
â–¶
"Disconnecting the power cord" on page 46.
System board and components
316 Upgrade and Maintenance Manual RX4770 M5
