Fujitsu PRIMERGY RX4770 M5 - Server Front; Connectors on the Front Panel Module; Indicators on the Front Panel

16.2.2 Server front
16.2.2.1
Connectors on the front panel module

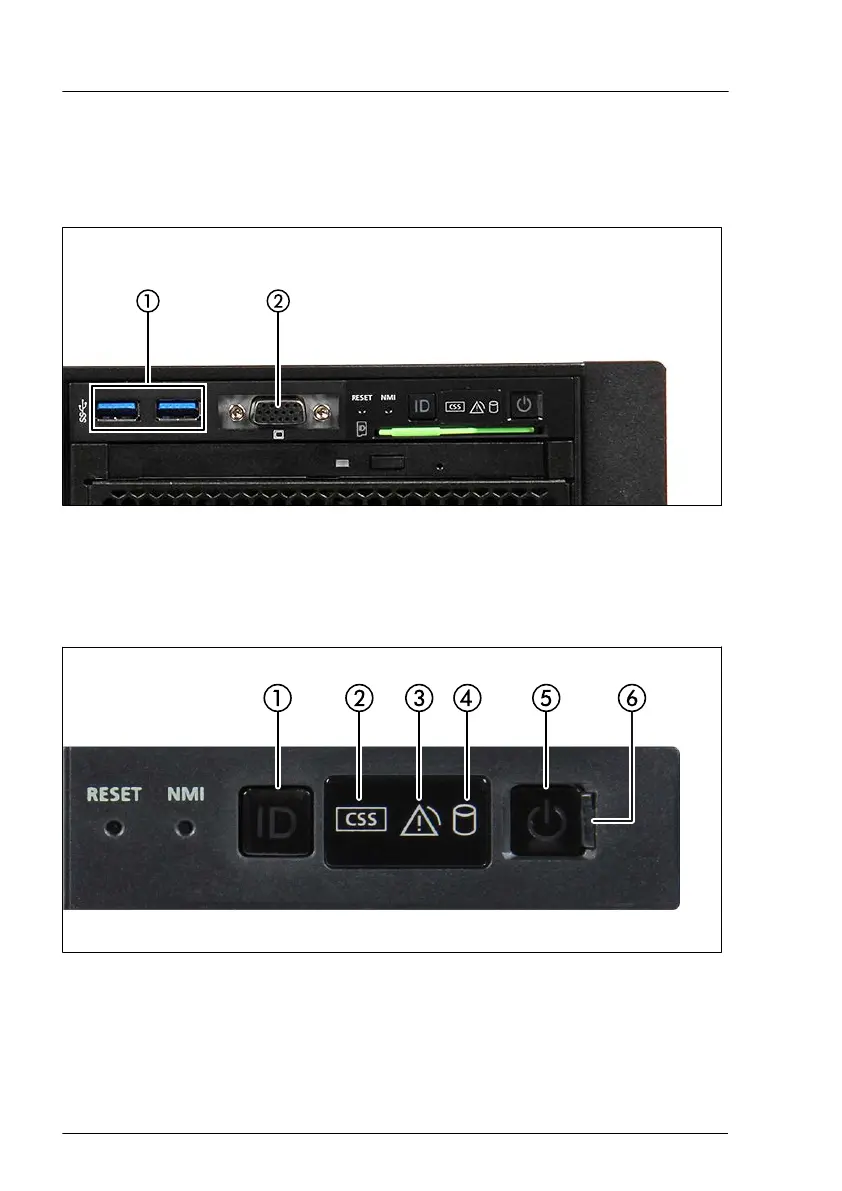

Figure 247: Connectors on the front panel module
1 USB 3.0 (2x) 2 Front VGA
16.2.2.2 Indicators on the front panel
Figure 248: Indicators on the front panel
1 ID indicator
2
CSS indicator
3 Global Error indicator
4 HDD/SSD activity indicator
5 Power-on indicator
6 AC connected indicator
