4.8.4 Removing the riser module

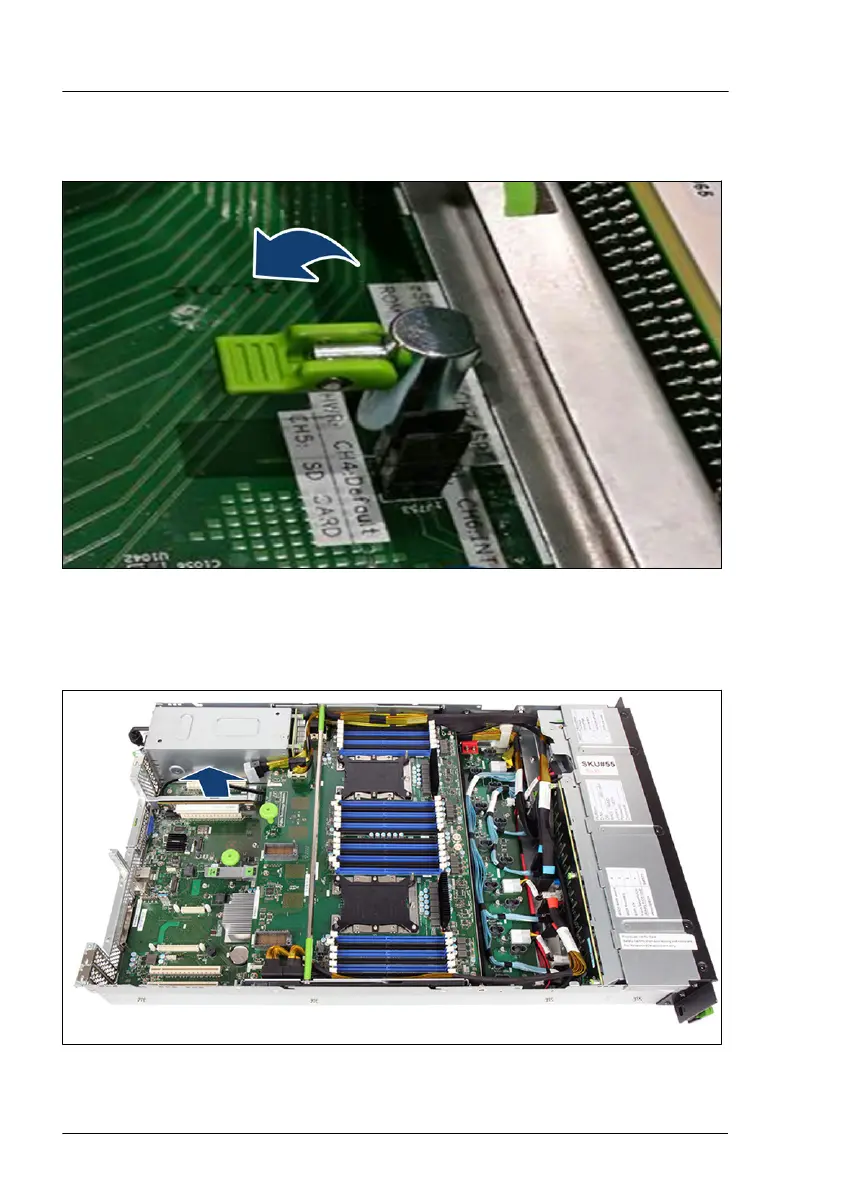

Figure 16: Locking lever

▶

Release the locking lever before you remove the riser module out of PCIe

slot 5.

Figure 17: Removing the riser module

Basic hardware procedures

64 Upgrade and Maintenance Manual RX4770 M5
