4.11.2 Installing the CPU air duct

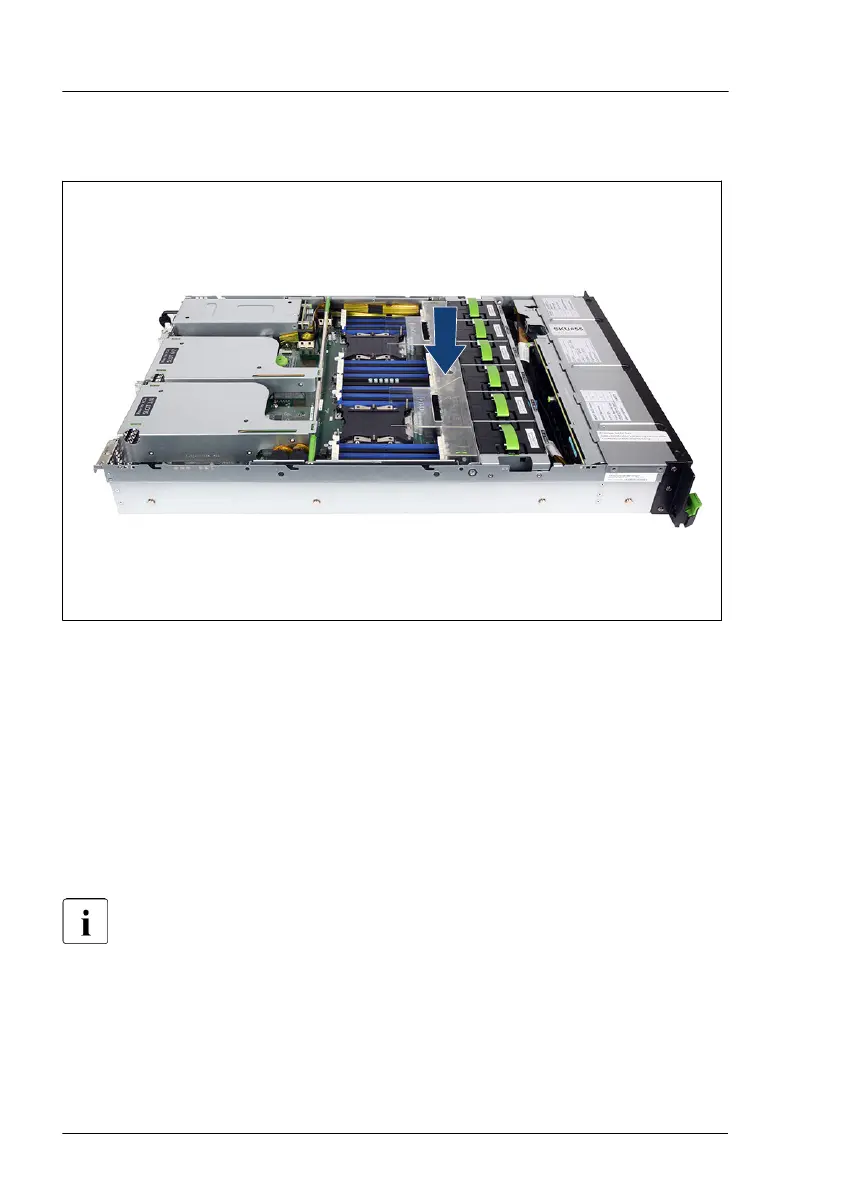

Figure 27: Installing a CPU air duct - example: air duct on the top system board
â–¶
Place the CPU air duct on the CPUs. Ensure that the hooks fit in the fan
cage.
4.12
Handling the top system board holder
4.12.1 Removing the top system board holder
Remove the server out of the rack before removing the top system
board, see "Removing the server from the rack" on page
49 .
Basic hardware procedures
74 Upgrade and Maintenance Manual RX4770 M5
