Handling riser modules
4.8.1
Positions of riser modules

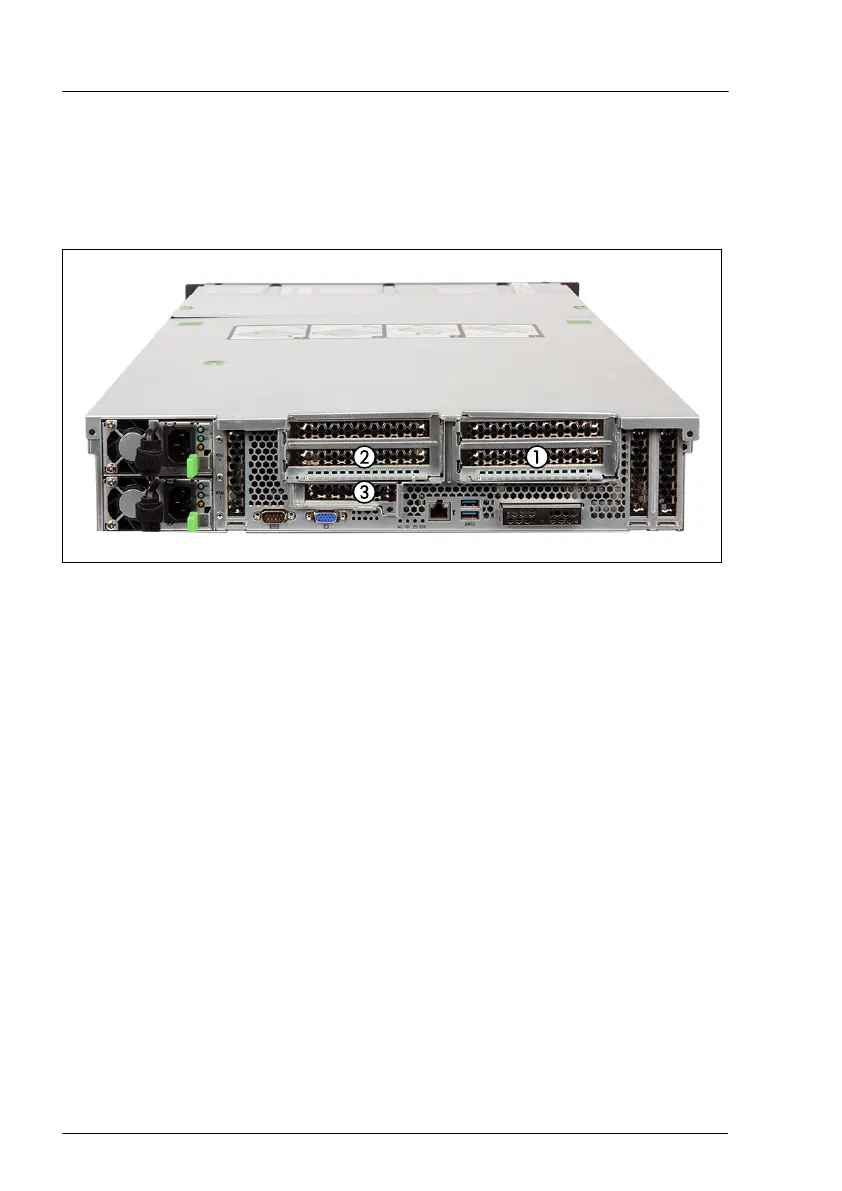

Figure 12: Positions of riser modules
1
Riser module 3/4, offers slot 3 and slot
4
2
Riser module 6/7, offers slot 6 and slot
7
3
Riser module, offers slot 5
Basic hardware procedures
60
Upgrade and Maintenance Manual
RX4770 M5
59
61
