Concluding steps
▶
"Installing the riser module" on page
65.
▶
Install the riser module 6/7, see "Installing the riser module" on page 65.
▶
"Reassembling" on page 53.
▶
"Connecting the power cord (AC PSU)" on page 58.
▶
"Switching on the server" on page 59.
14.6 M.2 SSD
14.6.1 Slots and bolts for M.2 SSDs
The bottom system board offers two M.2 slots (Key M) with support for 42 mm,
80 mm, and 110 mm long M.2 SSDs. With the M.2 SSD an internal SSD is
offered. This SSD can be configured as a boot device or data storage device.

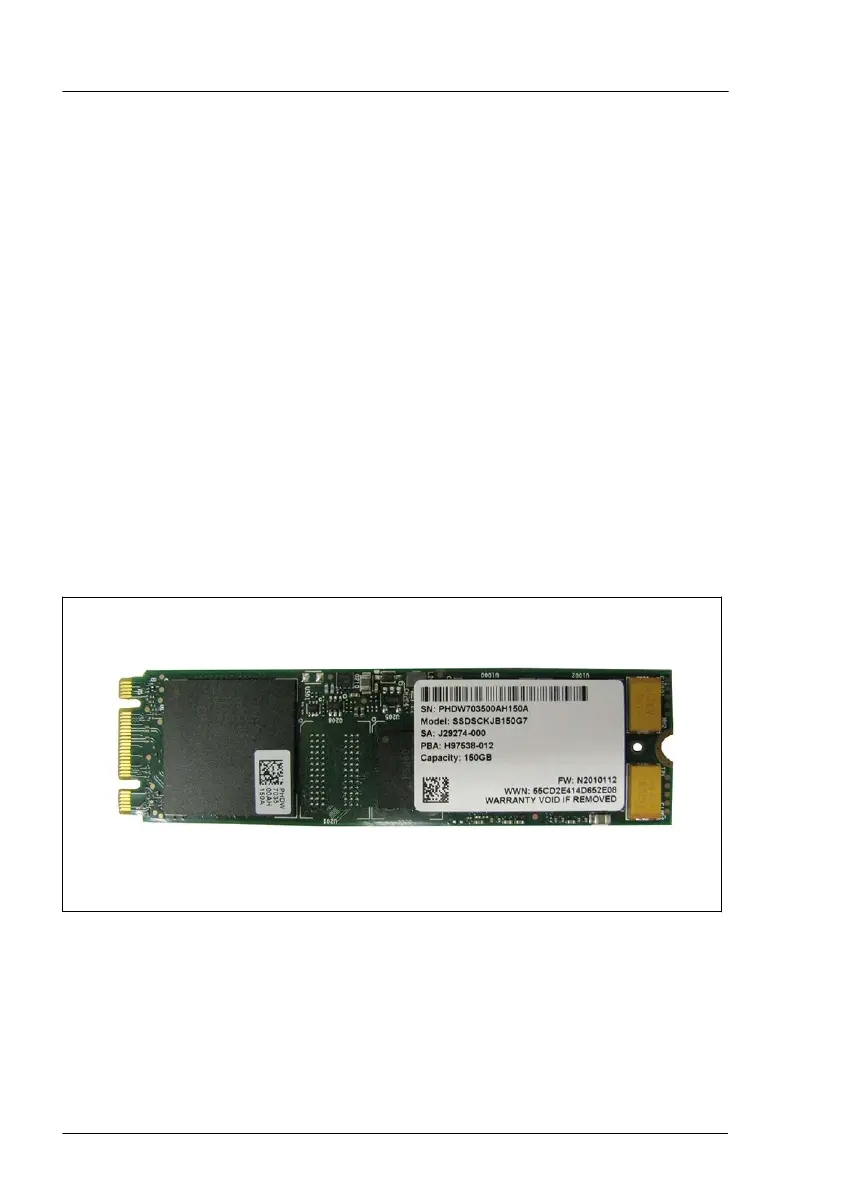

Figure 186: Example: M.2 SSD
System board and components
332 Upgrade and Maintenance Manual RX4770 M5
