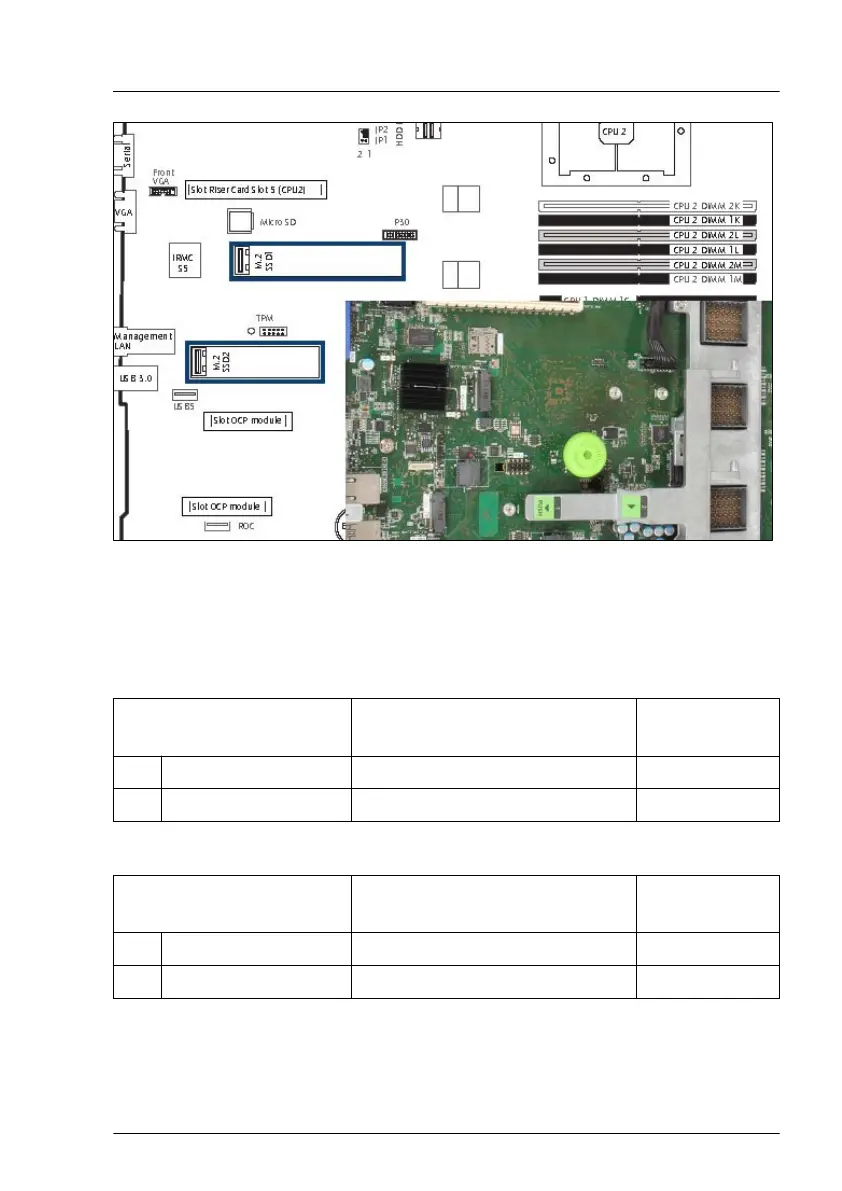

Figure 187: Slots for M.2 SSDs on bottom system board
1 M.2 slot 1 (80 mm and 110 mm) 2 M.2 slot 2 (42 mm and 80 mm)
▶
Identify the physical location according to the following table.
(SATA mode: AHCI)
M.2 SSD slot
BIOS menu iRMC SEL
1 M.2 SSD1 SSATA Port 2 (M.2 Slot 0) Port 0
2 M.2 SSD2 SSATA Port 4 (M.2 Slot 1) Port 1
(SATA mode: RAID)
M.2 SSD slot
BIOS menu iRMC SEL
1 M.2 SSD1 Port 2 Port 2
2 M.2 SSD2 Port 4 Port 4
System board and components
RX4770 M5 Upgrade and Maintenance Manual 333
