If necessary
, disconnect cables from the other components.
â–¶
Carefully pull out the corresponding riser module upward.
The riser module is installed under the riser module 6/7. You can only
remove the riser module after the riser module 6/7 was removed.
4.8.5 Installing the riser module
The riser module must be installed under the riser module 6/7. You must
install the riser module before you install the riser module 6/7.

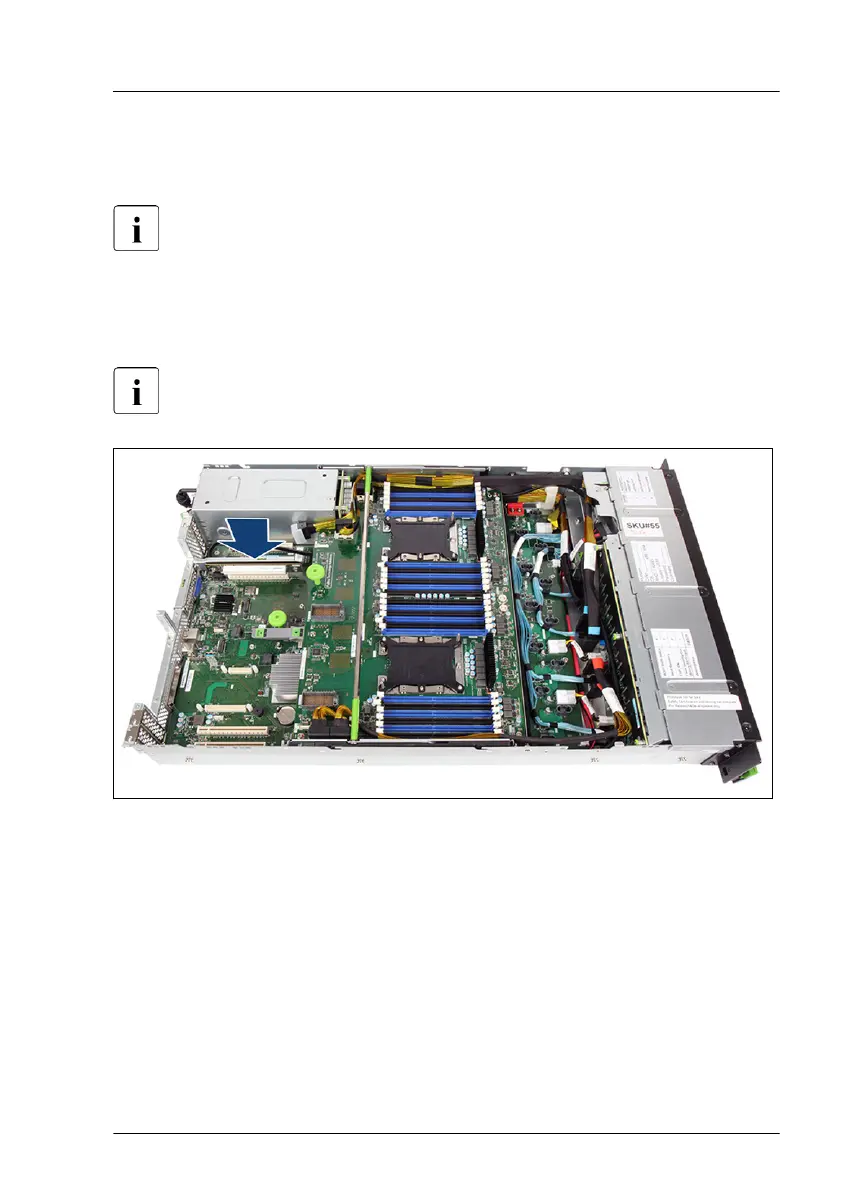

Figure 18: Installing the riser module
â–¶
Install the riser module into the system board slot and press down the green
touch points.
Basic hardware procedures
RX4770 M5 Upgrade and Maintenance Manual 65
