Status Description
flashing orange
slowly
HDD/SSD RAID rebuild is in progress. Data is being
restored after replacing a drive that has been combined
into a RAID array
.
16.2.3 Server rear
16.2.3.1
Connectors on the server rear

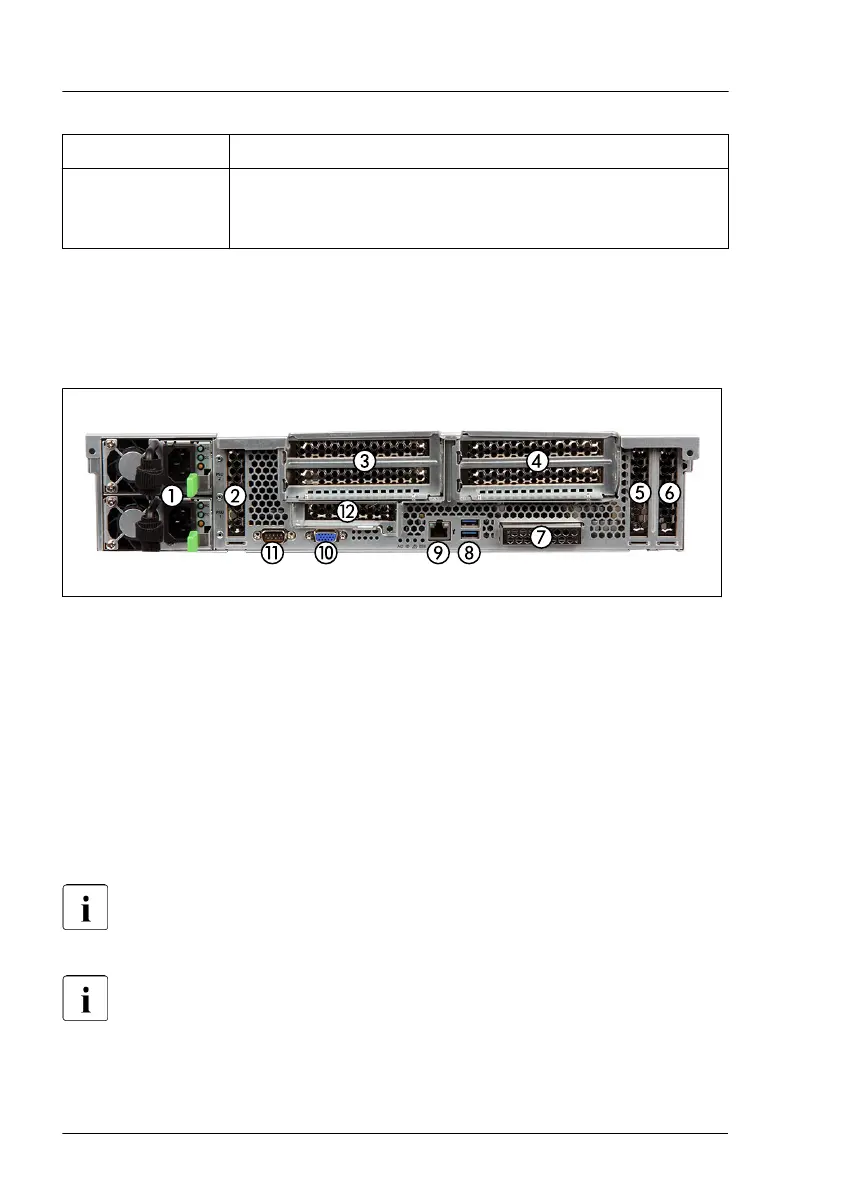

Figure 251: Connectors on the server rear
1 PSU (2x)
2
PCI slot 8
3 PCI slot 6/7 / riser module 6/7
4 PCI slot 3/4 / riser module 3/4
5 PCI slot 2
6 PCI slot 1
7 OCP module; if no OCP module has
been ordered, you find a dummy cover
installed in this place
8 USB 3.0 (2x)
9 Management LAN
10 VGA
11 Serial connector
12 PCI slot 5
Depending on the BIOS settings, the shared LAN connector may also
be used as a management LAN connector
. For more information, see
the corresponding BIOS Setup Utility reference manual.
Some of the devices connected require special software (e.g. drivers)
(see documentation for the connected device).
