Installing the top system board holder

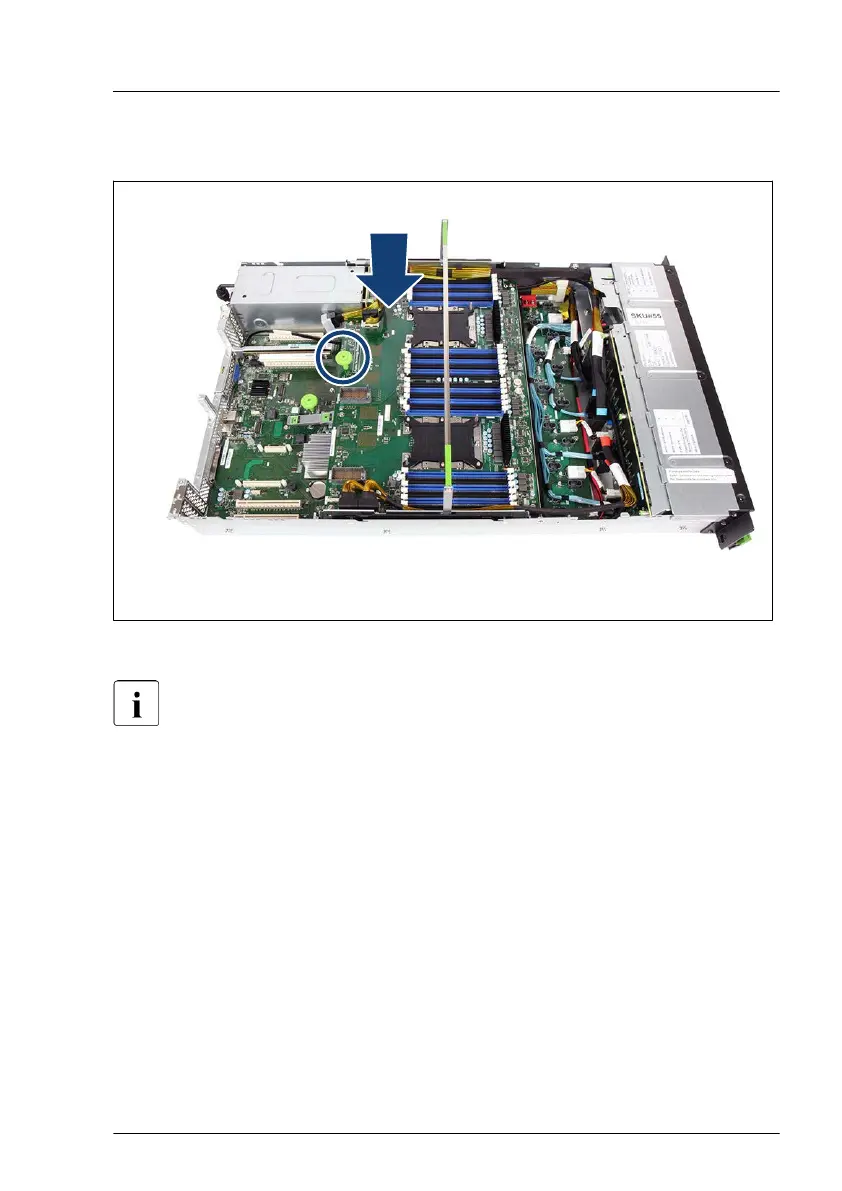

Figure 32: Installing the top system board (A)
Use the green handle (see circle) to stabilize the top system board
during installation.
â–¶
T
ake the top system board by the release handle and the green handle and
push the top system board down.
Basic hardware procedures
RX4770 M5
Upgrade and Maintenance Manual
79
78
80
