9RX4770 M5
PRAID_EP4xx

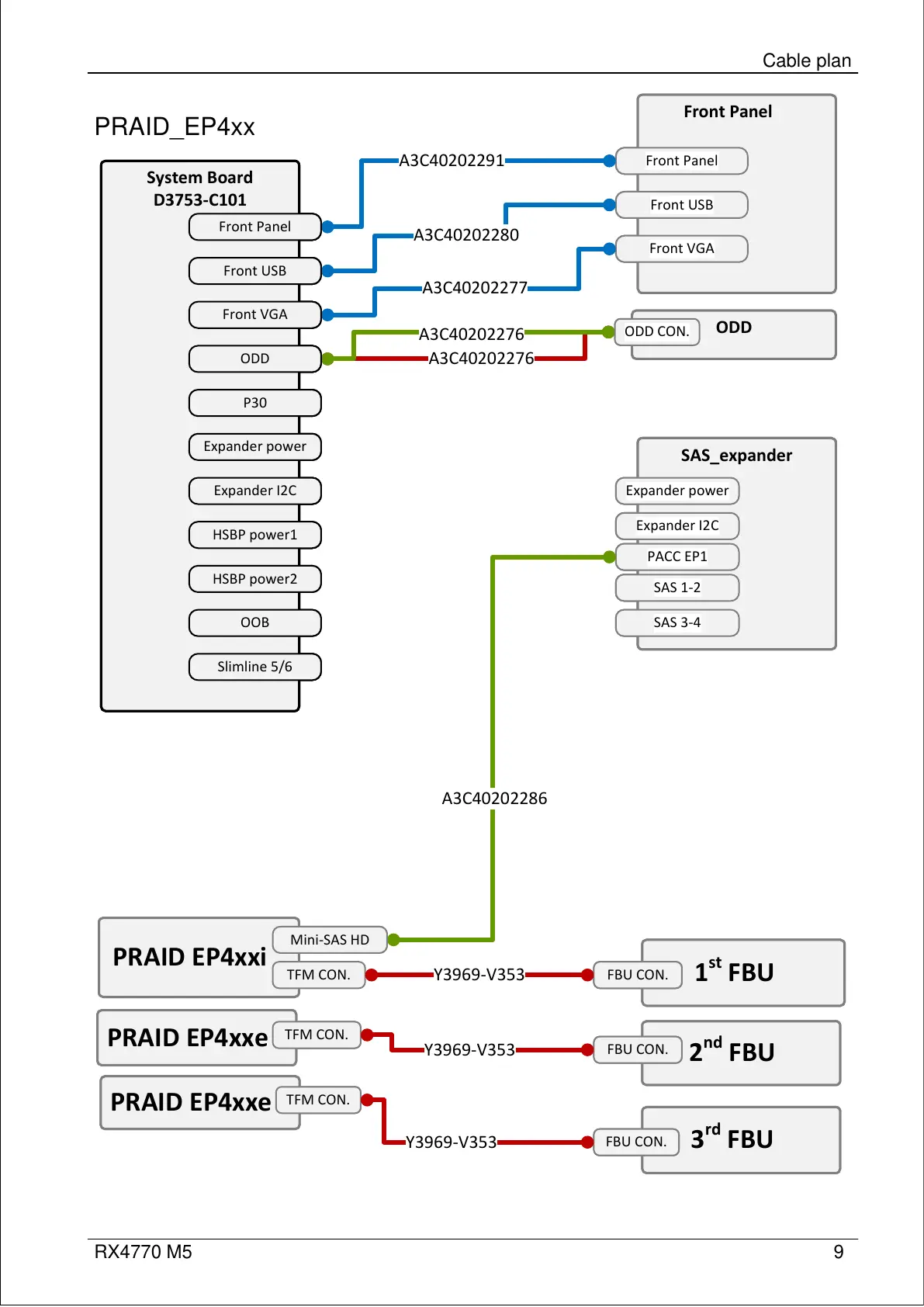

Cable plan
3
rd
FBU3
rd
FBU
2
nd
FBU2
nd
FBU
1
st
FBU1
st
FBU
Front Panel
Front Panel
Front USB
Front VGA
Front Panel
Front Panel
Front USB
Front VGA
A3C40202291
A3C40202280
A3C40202277
A3C40202276
A3C40202276
ODD
ODD CON.
ODD
ODD CON.
SAS_expander
Expander I2C
SAS 1-2
SAS_expander
Expander I2C
SAS 1-2
Expander power
PACC EP1
SAS 3-4
SAS_expander
Expander I2C
SAS 1-2
Expander power
PACC EP1
SAS 3-4
System Board
D3753-C101
Front Panel
Front USB
Front VGA
ODD
P30
Expander power
Expander I2C
HSBP power1
Slimline 5/6
System Board
D3753-C101
Front Panel
Front USB
Front VGA
ODD
P30
Expander power
Expander I2C
HSBP power1
Slimline 5/6
HSBP power2
OOB
System Board
D3753-C101
Front Panel
Front USB
Front VGA
ODD
P30
Expander power
Expander I2C
HSBP power1
Slimline 5/6
HSBP power2
OOB
A3C40202286
PRAID EP4xxi
Mini-SAS HD
PRAID EP4xxi
Mini-SAS HD
FBU CON.FBU CON.
PRAID EP4xxe
TFM CON.
PRAID EP4xxe
TFM CON.
TFM CON.
PRAID EP4xxe
TFM CON.
PRAID EP4xxe
TFM CON.
FBU CON.FBU CON.
FBU CON.FBU CON.
Y3969-V353
Y3969-V353
Y3969-V353
