7RX4770 M5

Dual microSD 64GB Enterprise

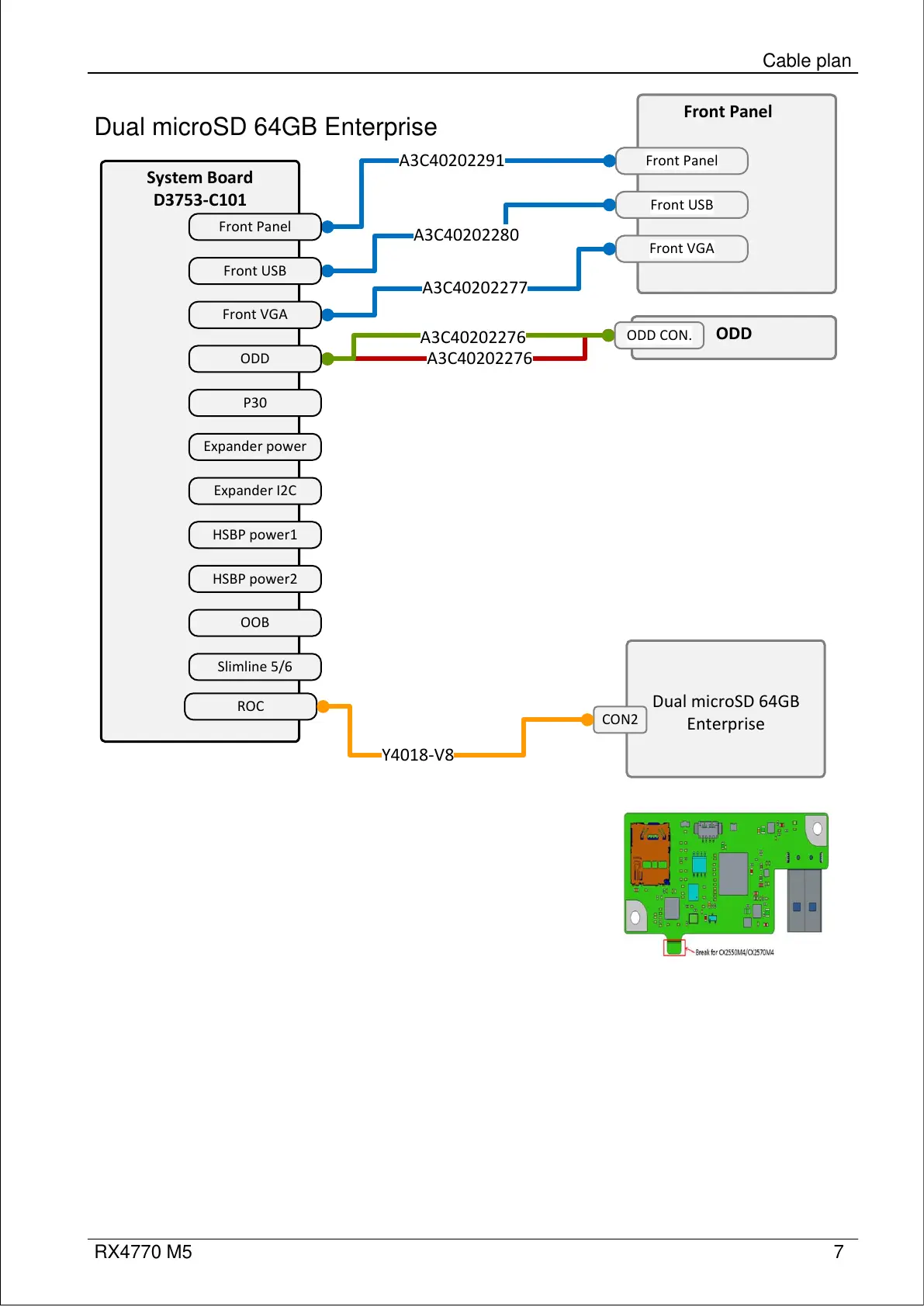

Cable plan

Front Panel

Front USB

Front VGA

Front Panel

Front USB

Front VGA

A3C40202291

A3C40202280

A3C40202277

A3C40202276

ODD

ODD CON.

ODD

ODD CON.

System Board

D3753-C101

Front Panel

Front USB

Front VGA

ODD

P30

Expander power

Expander I2C

HSBP power1

Slimline 5/6

HSBP power2

OOB

CON2

Dual microSD 64GB

Enterprise

ROC

Y4018-V8
