16.2.3.2 AC connected, ID, CSS and Global Error indicators

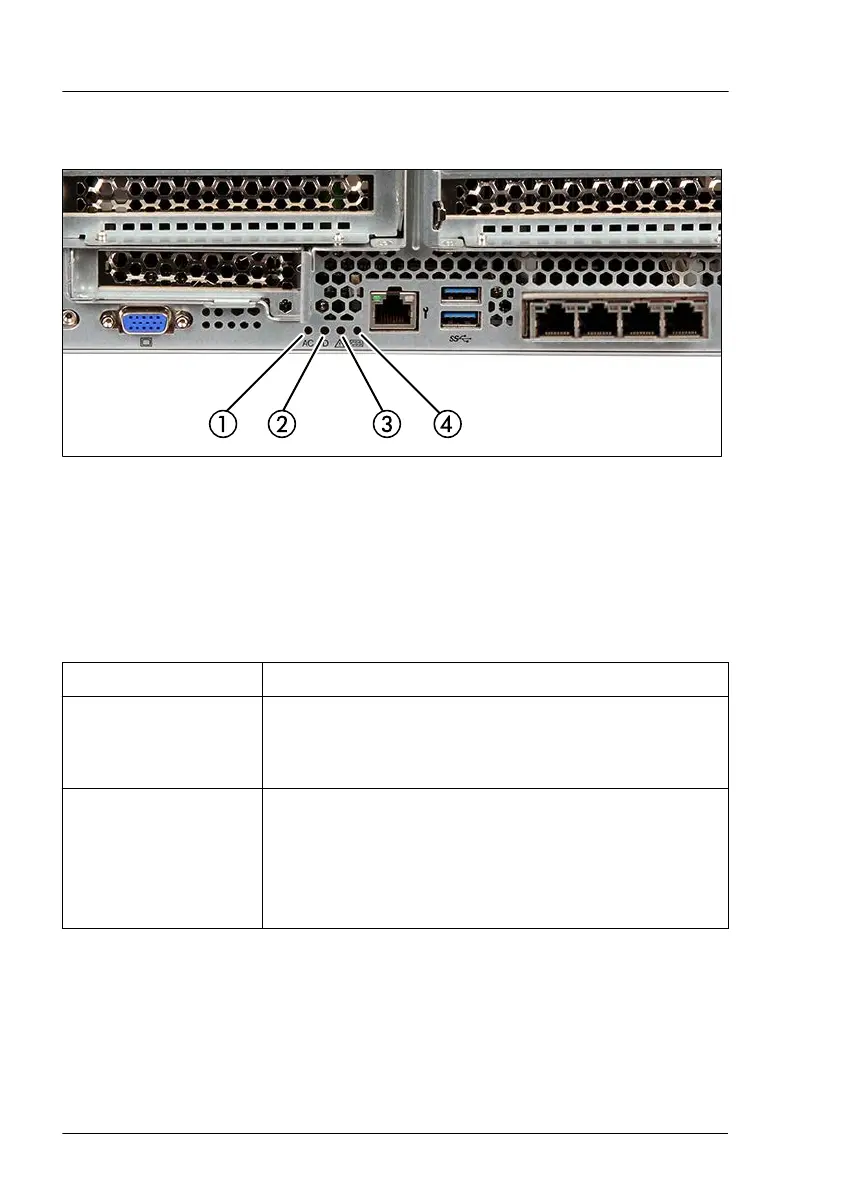

Figure 253: AC connected, ID, CSS and Global Error indicators
1 AC connected indicator
2
ID indicator
3 CSS indicator
4 Global Error indicator
AC connected indicator (1)
See also "iRMC-related status signals" on page 426.
Status Description
off – The server is switched off and not connected to the
mains.
–
The server is switched on and operating normally.
green on – The server is switched off and connected to the
mains (standby mode).
–
The server has been switched on but Power Cycle
Delay settings delay it from turning on for a
specified time.
ID indicator (2)
See also "iRMC-related status signals" on page
426.
