Connect keyboard and mouse via USB. There are no separate PS/2
connectors for them.
Note for LAN connectors on OCP modules
The LAN connectors on the OCP modules are numbered in ascending order
from right to left beginning with “0”.
Liquid cooling configuration
A LC configuration is provided on special release request only.
The quick connectors to connect the LC to the server system are on the rear of
the server
.

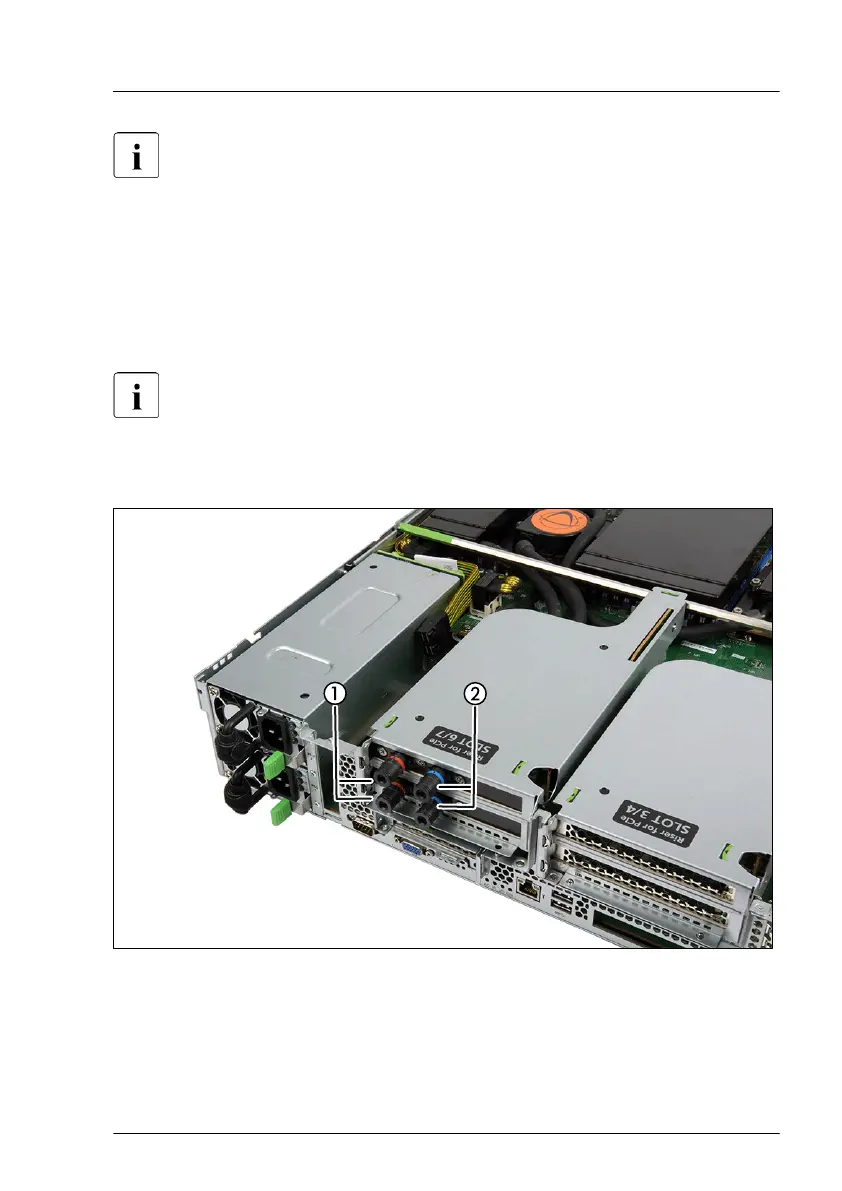

Figure 252: Quick connectors for LC
1 Quick connector with red marking:
water outlet
2 Quick connector with blue marking:
water inlet
Appendix A
RX4770 M5 Upgrade and Maintenance Manual 423
