Fujitsu PRIMERGY RX4770 M5 - Configuration with up to 12 Sas;Sata;Pcie SSD Modules and up to Four SAS;SATA HDD;SSD Modules

Position HDD install order
PCIe SSD
install
order
ServerView RAID
Manager display name
[3] dummy dummy
[4] HDD0 PCIe SSD8 Vendor Product (4)
[5] HDD1 PCIe SSD9 Vendor Product (5)
[6] HDD2
PCIe
SSD10
Vendor Product (6)
[7] HDD3
PCIe
SSD1
1
Vendor Product (7)
[8] HDD4 PCIe SSD4 Vendor Product (8)
[9] HDD5 PCIe SSD5 Vendor Product (9)
[10] HDD6 PCIe SSD6 Vendor Product (10)
[11] HDD7 PCIe SSD7 Vendor Product (11)
[12] HDD8 PCIe SSD0 Vendor Product (12)
[13] HDD9 PCIe SSD1 Vendor Product (13)
[14] HDD10 PCIe SSD2 Vendor Product (14)
[15] HDD11 PCIe SSD3 Vendor Product (15)
7.4.1.3 Configuration with up to 12 SAS/SATA/PCIe SSD modules and
up to four SAS/SA
TA HDD/SSD modules
CPU 1 does not support PCIe SSD, so the first four slots can only be
used for SAS/SA
TA HDD/SSD modules.

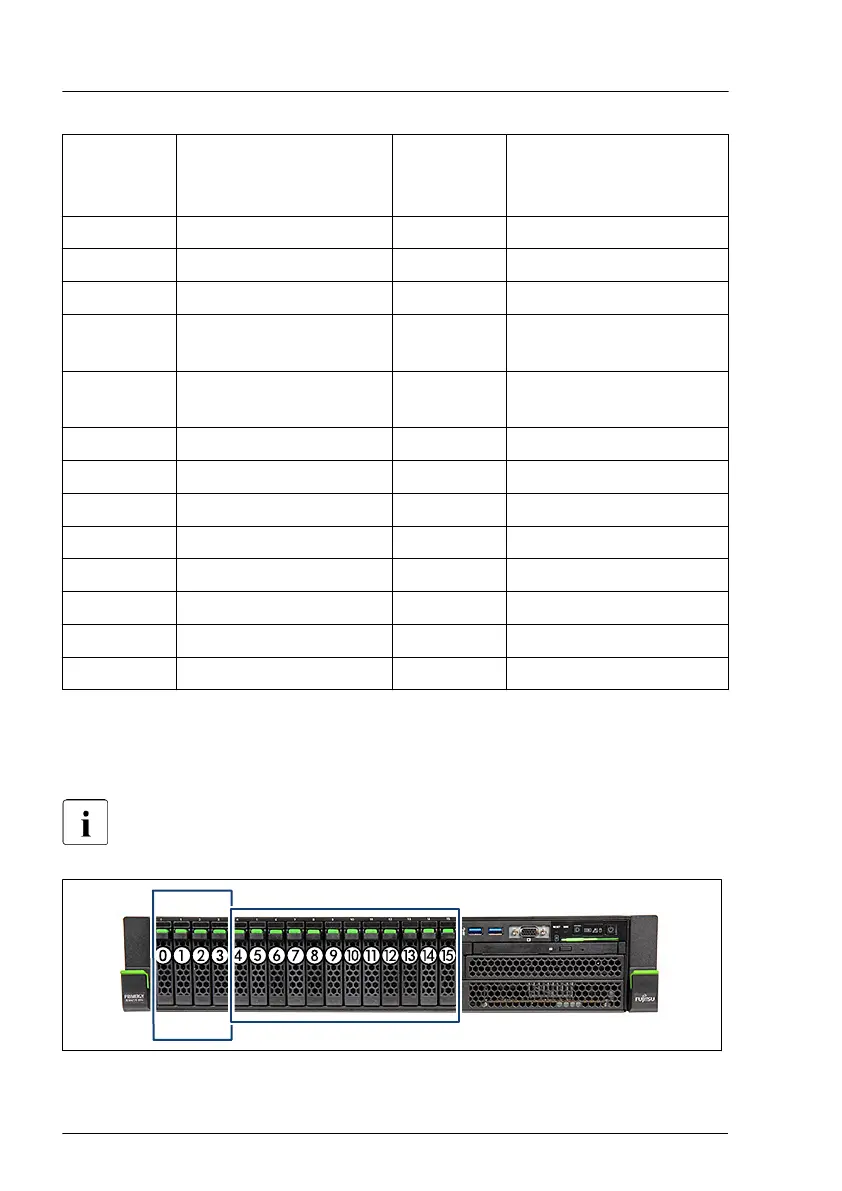

Figure 55: Configuration with 12x 2.5-inch PCIe SSDs+4x 2.5-inch SAS/SATA HDD/SSDs
Hard disk drive (HDD) / solid state disk (SSD)
144 Upgrade and Maintenance Manual RX4770 M5
