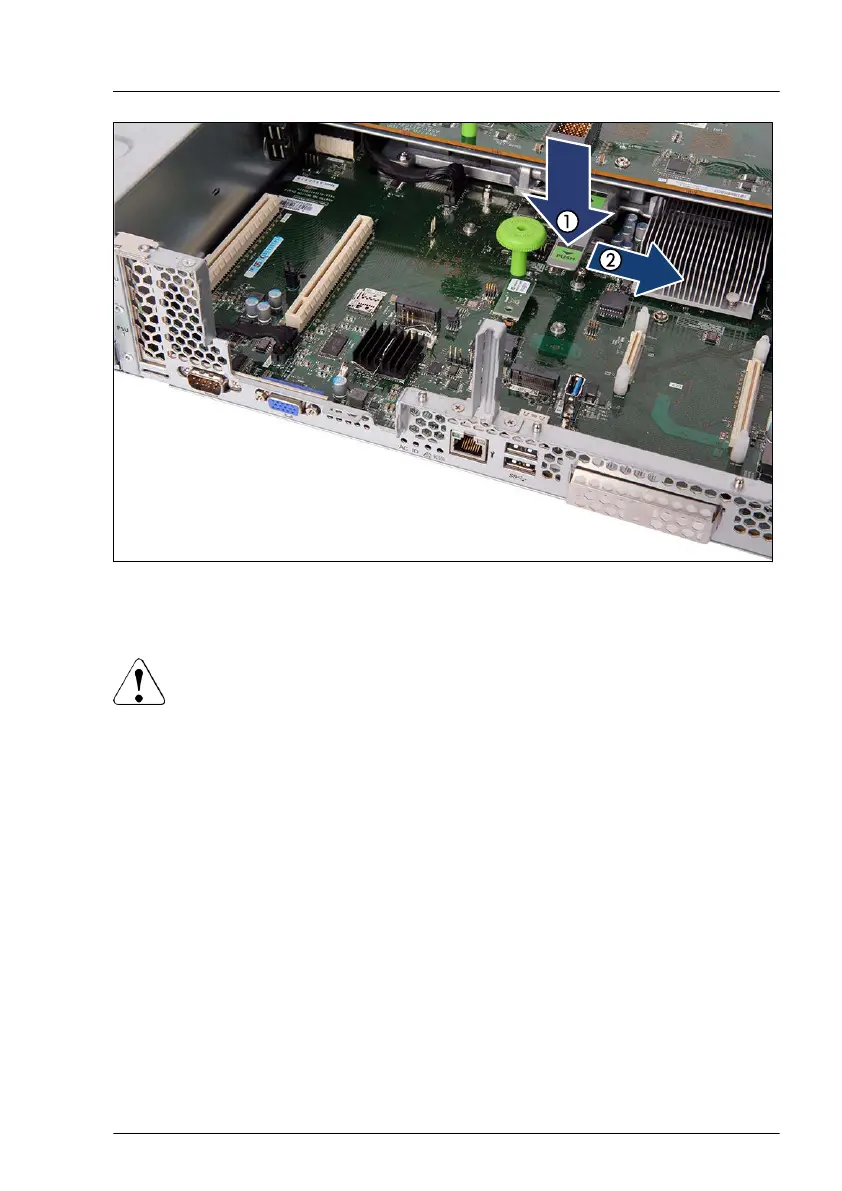

Figure 28: Pushing the locking lever
â–¶
Push down the locking lever (1) and then push it to the right (2).
CAUTION
â–¶
You can only remove the top system board after pushing down the
locking lever
.
Basic hardware procedures
RX4770 M5 Upgrade and Maintenance Manual 75
