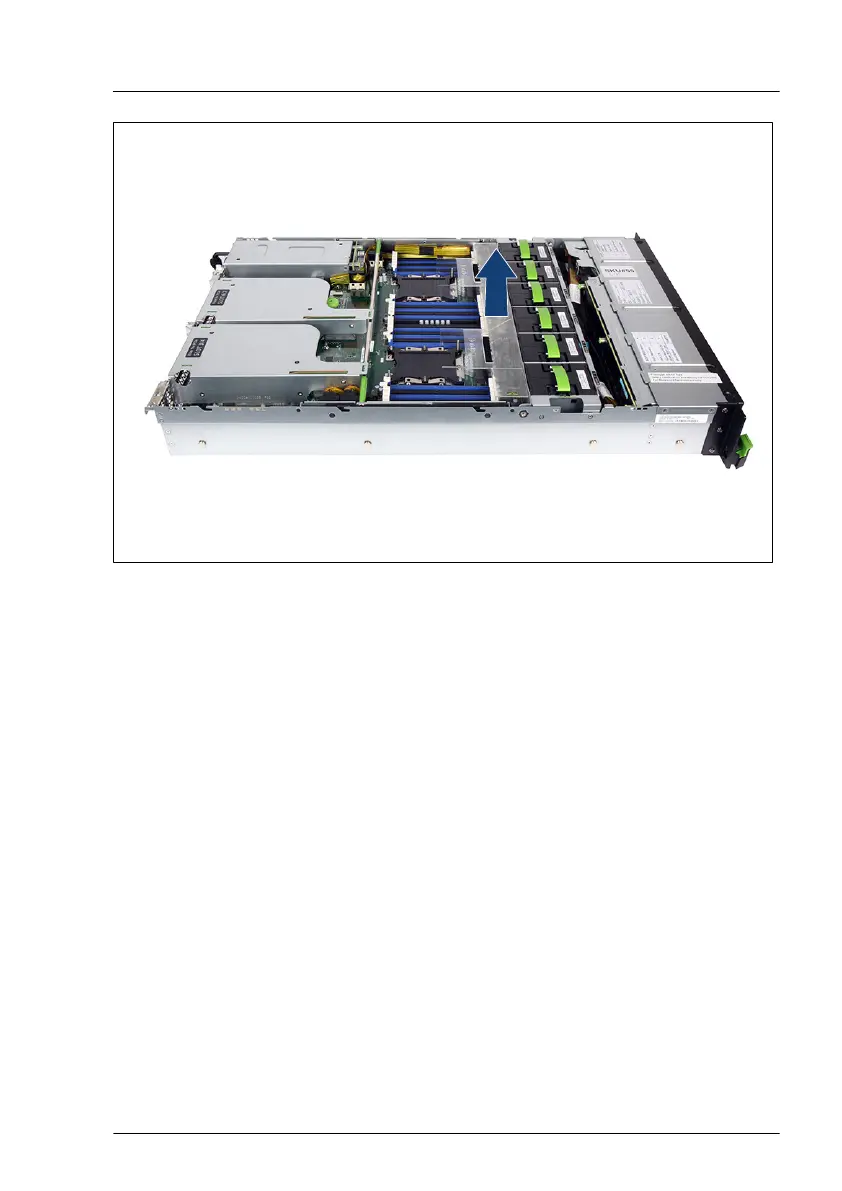

Figure 26: Removing a CPU air duct - example: air duct on the top system board

▶

Pull out the CPU air duct upward.

Basic hardware procedures

RX4770 M5 Upgrade and Maintenance Manual 73
