"Getting access to the component" on page
47.
▶
"Removing the riser module 3/4 and 6/7" on page 61.
Installing the TPM

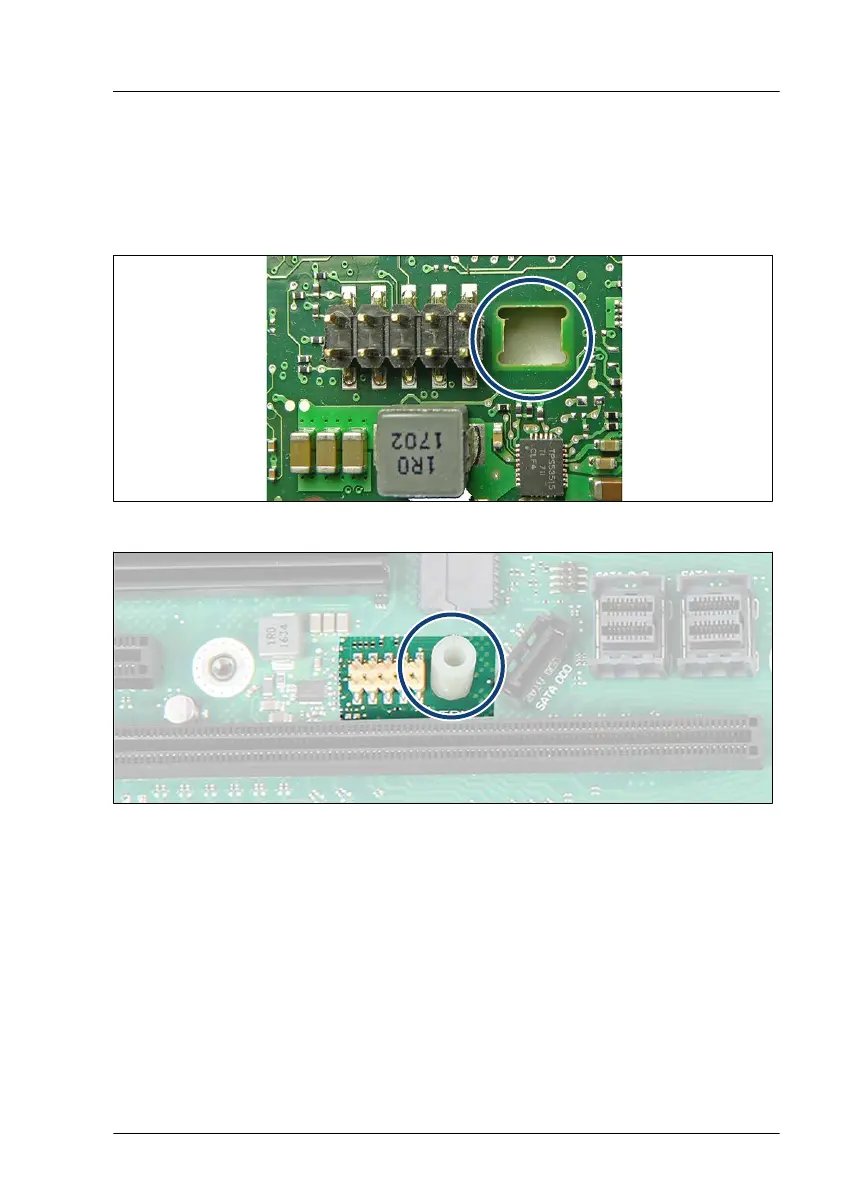

Figure 177: Position for the TPM spacer
Figure 178: Inserting the TPM spacer on the system board
▶
Insert the TPM spacer into the hole on the system board.
System board and components
RX4770 M5 Upgrade and Maintenance Manual 317
