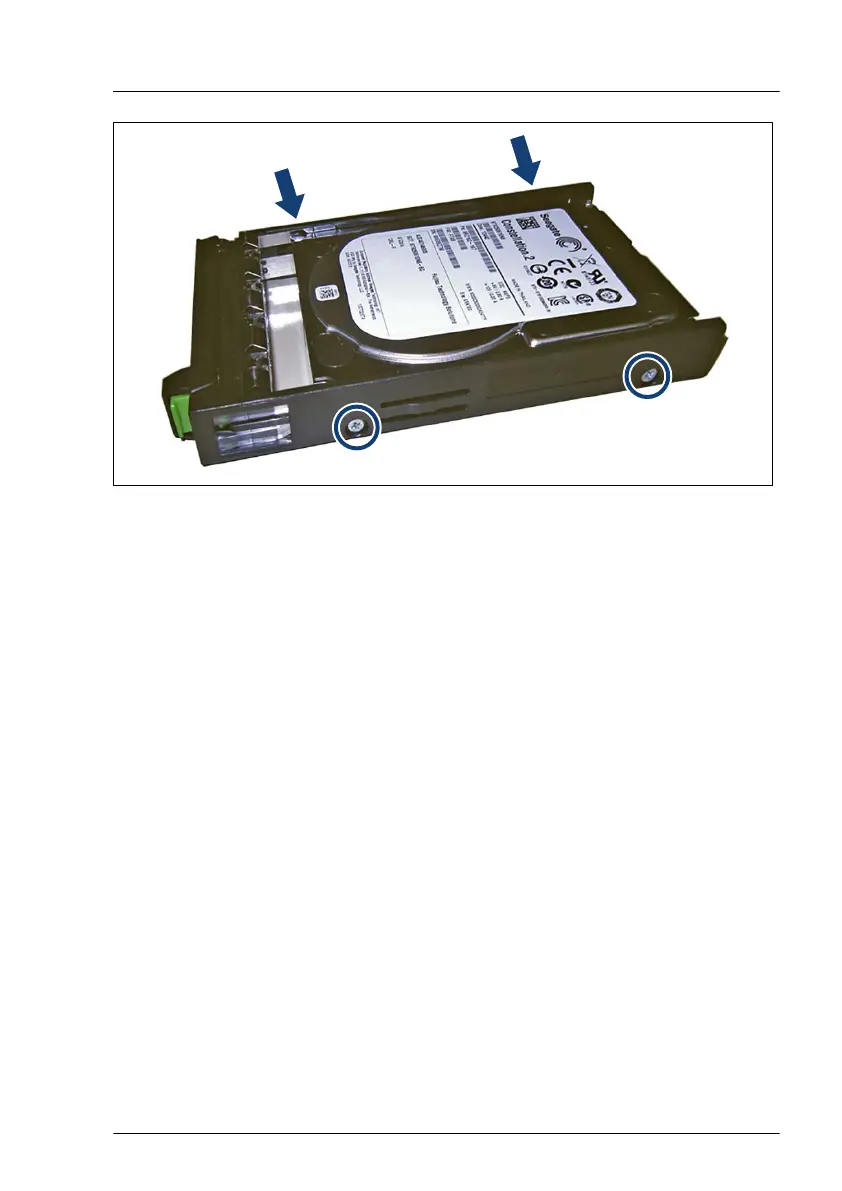

Figure 52: Installing the 2.5-inch HDD/SSD in the 2.5-inch installation frame (B)
â–¶
Fasten the 2.5-inch HDD/SSD with four screws.
Removing a 2.5-inch HDD/SSD from a 2.5-inch installation frame
â–¶
Please proceed in reversed order
.
Concluding steps
No steps needed.
Hard disk drive (HDD) / solid state disk (SSD)
RX4770 M5
Upgrade and Maintenance Manual
141
140
142
Table of Contents
