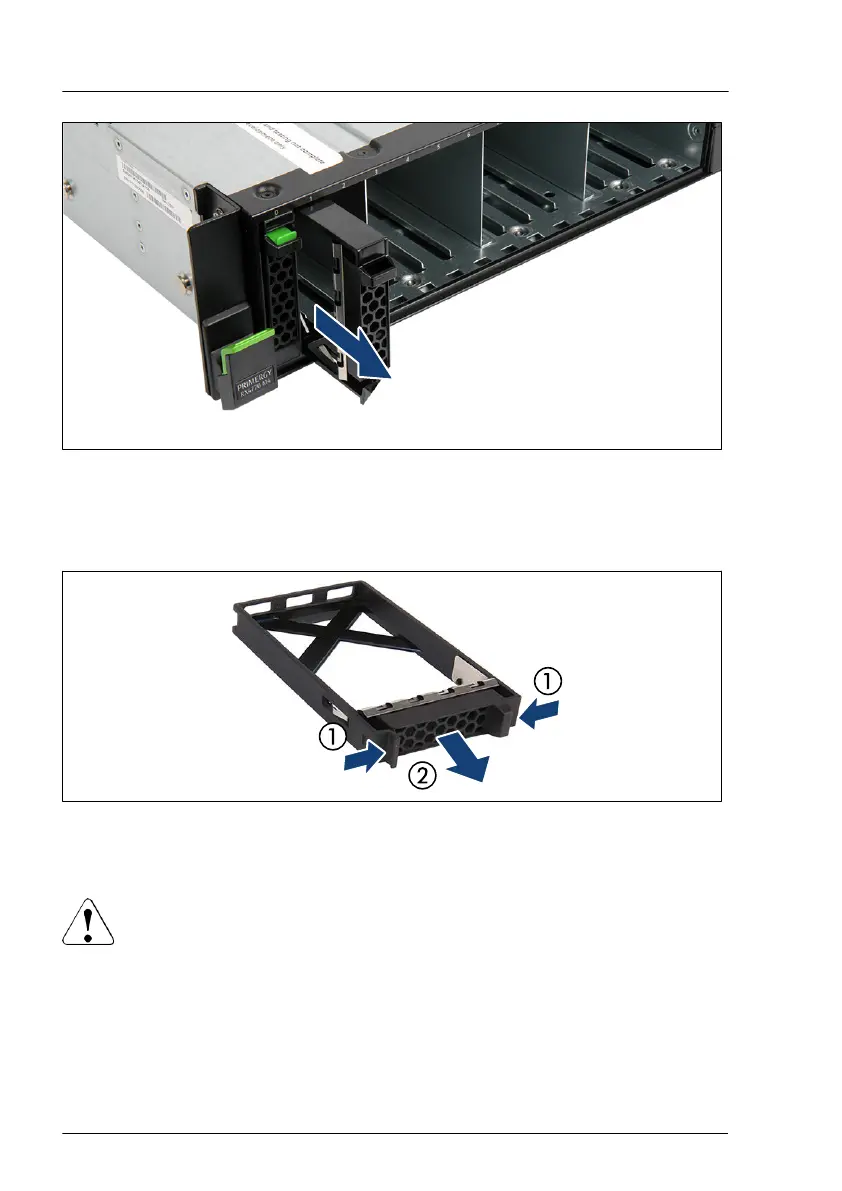

Figure 57: Removing the dummy lock
â–¶
Pull the dummy lock out of the dummy cover
. Please be aware that the
dummy lock can be damaged.
Figure 58: Removing the dummy module
â–¶
Press both tabs together (1) and pull the dummy module out of its bay (2).
CAUTION
â–¶
Keep the dummy module for future use.
â–¶
Always replace dummy modules into unused HDD/SSD bays to
comply with applicable EMC regulations and satisfy cooling
requirements.
Hard disk drive (HDD) / solid state disk (SSD)
148 Upgrade and Maintenance Manual RX4770 M5
