Fujitsu PRIMERGY RX4770 M5

To Next Page

To Previous Page

▶

"Locating the defective component" on page

44.

Removing the defective fan module

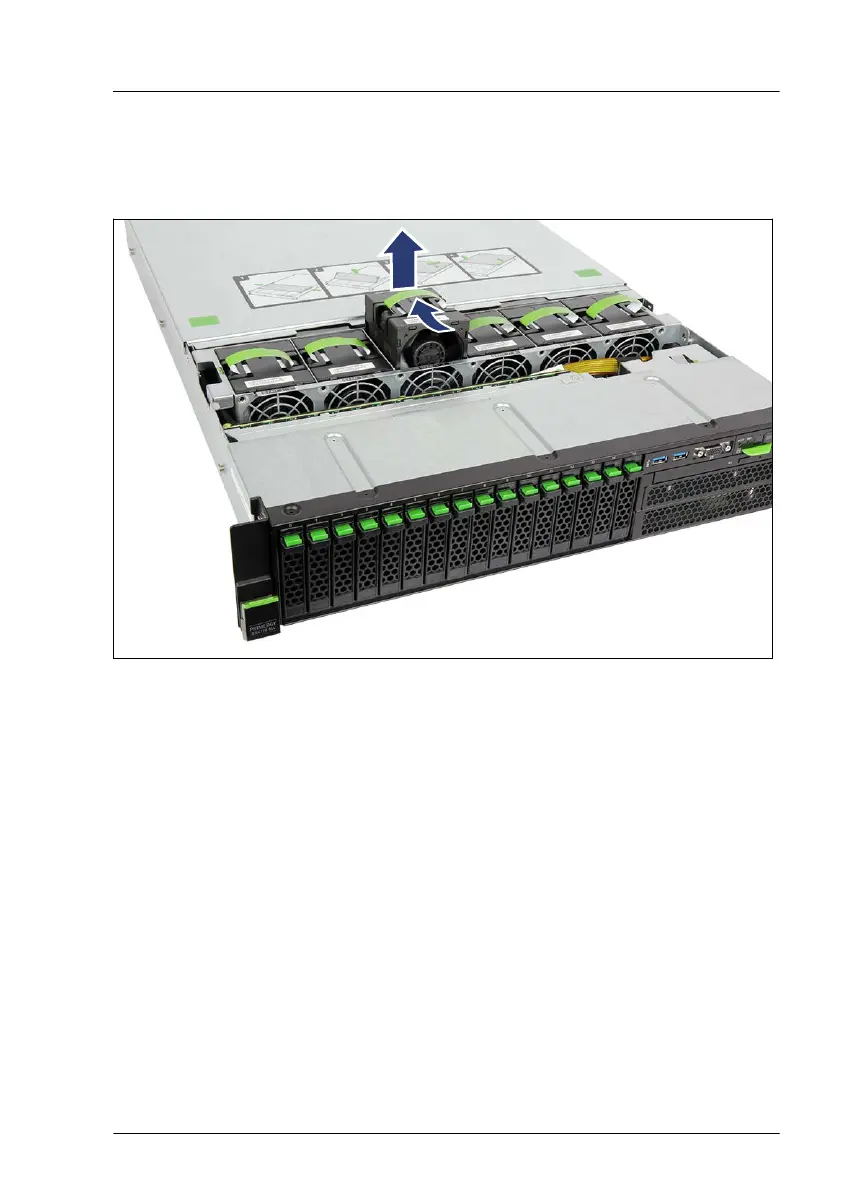

Figure 69: Removing the fan module

▶

Pull out the fan module upward using the green strap.

Fans

RX4770 M5 Upgrade and Maintenance Manual 165
