Fujitsu PRIMERGY RX4770 M5 User Manual

For system relevant information, see the hardware configurator of your
server available online at the following address:
https://ts.fujitsu.com/products/standard_servers/index.htm
For Japan:
https://www.fujitsu.com/jp/products/computing/servers/primergy/

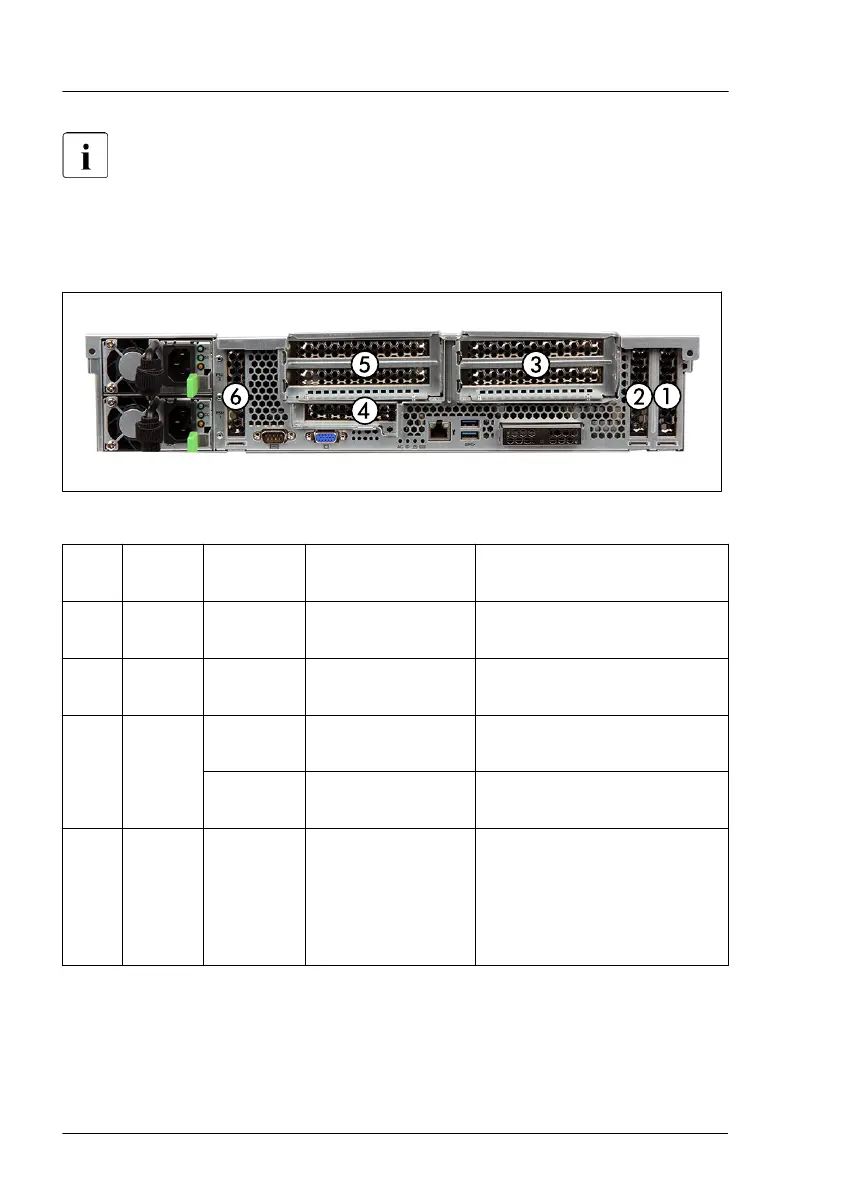

Figure 73: Position of the riser modules
No. Riser
module
Slot
offered
Type Description
1 none Slot 1 PCIe Gen3 x16
(CPU 1)
low profile slot
2 none Slot 2 PCIe Gen3 x16
(CPU 1)
low profile slot
3 Riser
module
3/4
Slot 3 PCIe Gen3 x16
(CPU 4)
full height slot
Slot 4 PCIe Gen3 x16
(CPU 4)
full height slot
4 Riser
module
Slot 5 PCIe Gen3 x16
(CPU 2)
low profile slot; additional
external RAID controller
used for dummy bracket
installed by LC configuration
if chosen
Expansion cards and backup units
170 Upgrade and Maintenance Manual RX4770 M5
