Tools: Phillips PH2 / (+) No. 2 screw driver
Use the low profile bracket perforated for relevant controllers.

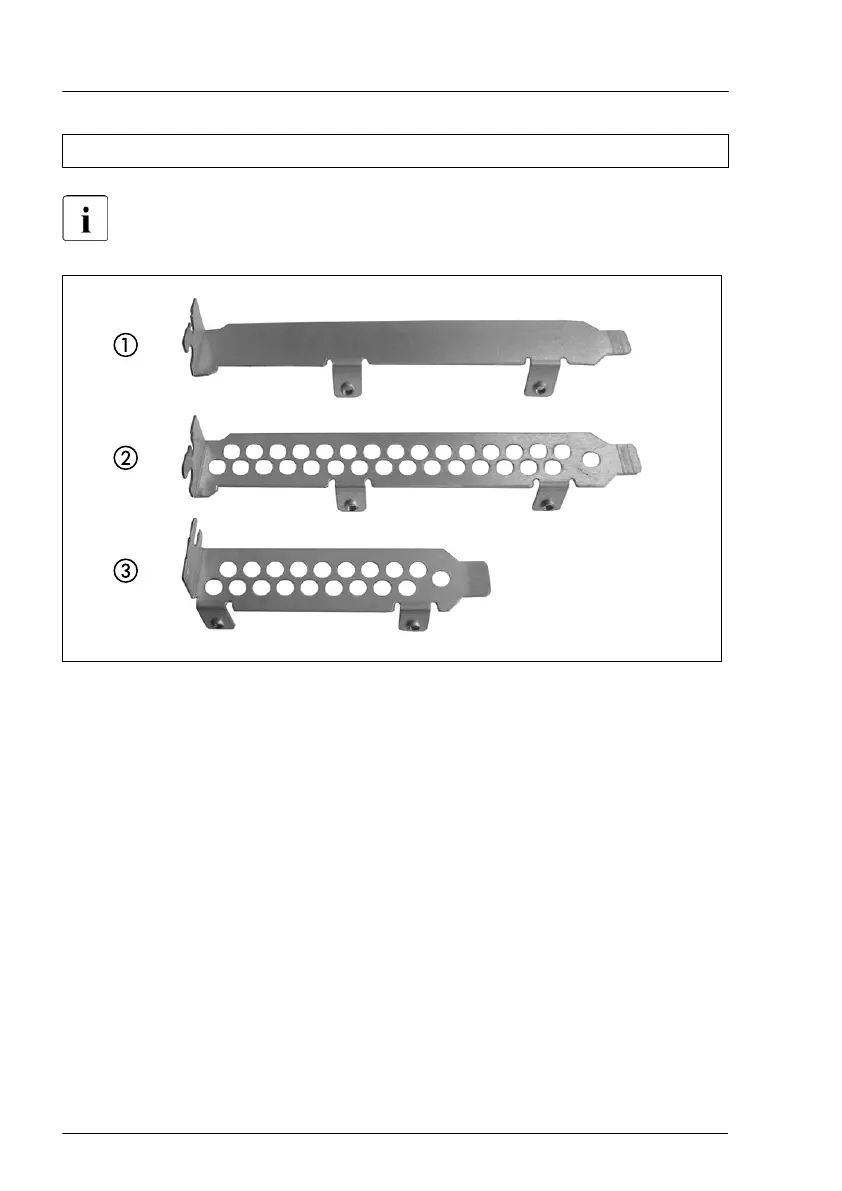

Figure 74: Perforated and non-perforated slot brackets
1 Full height bracket non-perforated
2
Full height bracket perforated
3 Low profile bracket perforated
Installing a slot bracket
▶
Place the controller on the mounting tabs on the slot bracket.
▶
Fasten the slot bracket to the controller with two screws.
Expansion cards and backup units
172 Upgrade and Maintenance Manual RX4770 M5
